ServiceNow – Entity

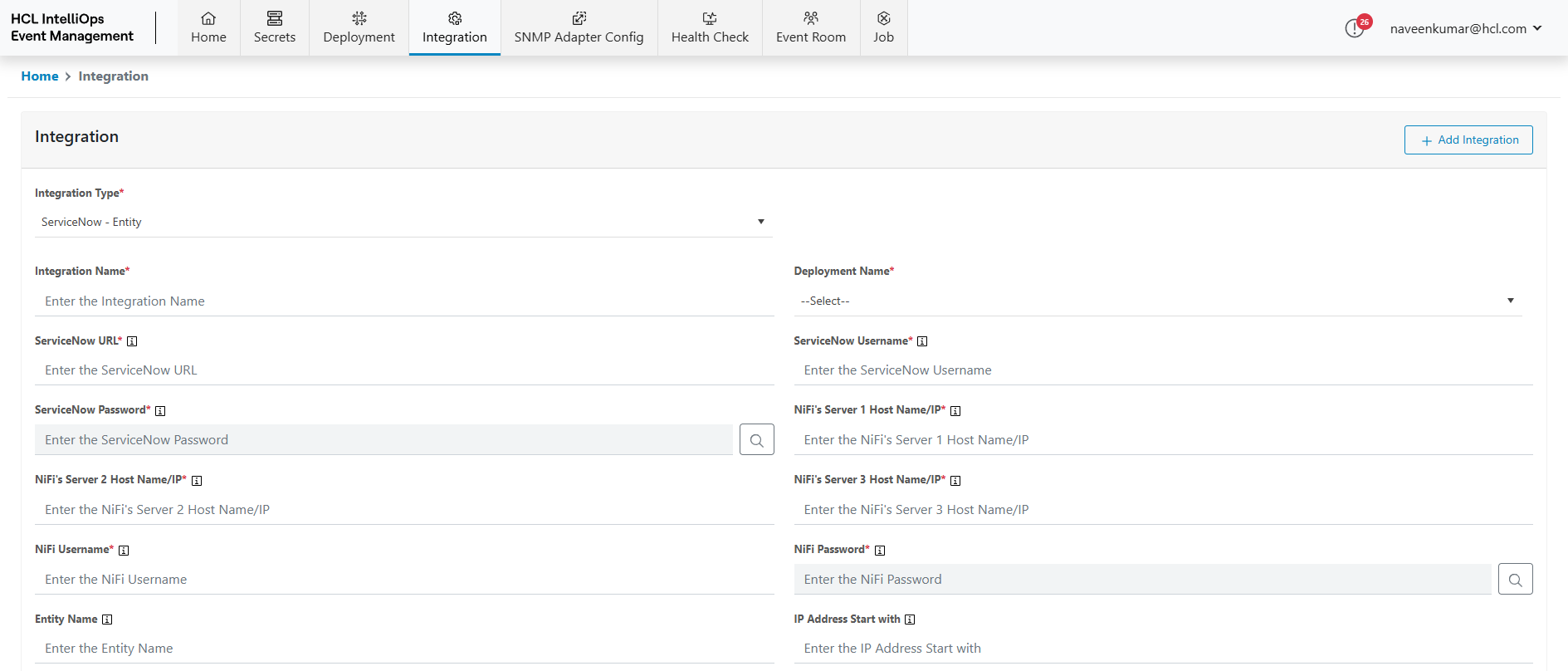

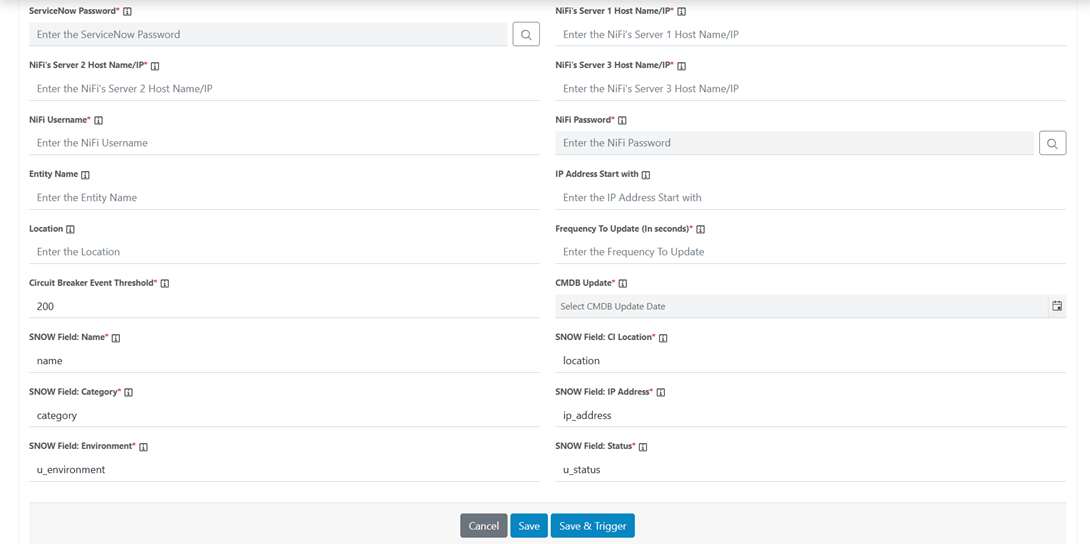

Refer to the table below to understand the fields mentioned in the above figure.
| Fields | Description |
| Integration Name | This field contains the Integration Name for Integration. |
| Deployment Name | This field contains the Deployment name; we can select deployment from all Deployments. |
| Location | Location of the Source Integration |
| Limit | Max value should not be more than 150. |
| NiFi Username | NiFi Username |
| Circuit Breaker Event Threshold | Circuit breaker Event Threshold Value: Min value: 100, Max value: 90000 |
| Frequency To Update | Frequency To Execute the API again (In seconds) |
| Entity Name | Entity Value |
| NiFi's Server 2 Host Name/IP | NiFi's Server 2 Host Name/IP |
| NiFi's Server 1 Host Name/IP | NiFi's Server 1 Host Name/IP |
| NiFi Password | NiFi Password |
| Entity Start with | To apply filter on Entity Name |
| ServiceNow Password | ServiceNow CMDB Password |
| ServiceNow Username | ServiceNow CMDB Username |
| NiFi's Server 3 Host Name/IP | NiFi's Server 3 Host Name/IP |
| ServiceNow URL | ServiceNow CMDB API URL. Eg. https://www.exampledomain.com |
| CMDB Update | Schedule CMDB Data Polling |
| SNOW Field : Name | Servicenow field name for CI name/hostname |
| SNOW Field : CI Location | Servicenow field name for CI location like u_location |
| SNOW Field : Category | Servicenow field name for CI Category |
| SNOW Field : IP Address | Servicenow field name for CI IP Address |
| SNOW Field : Environment | Servicenow field name for CI Environment |
| SNOW Field : Status | Servicenow field name for CI Status |
