Generic SNMP - Event

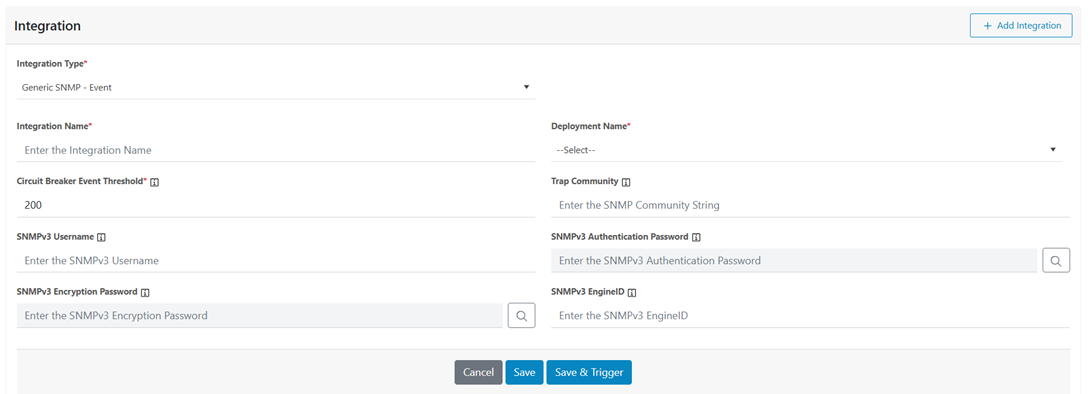

Refer to the table below to understand the fields mentioned in the above figure.
| Fields | Description |
| Integration Name | This field contains the Integration Name for Integration. |
| Deployment Name | This field contains the Deployment name; we can select deployment from all Deployments. |
| Circuit Breaker Event Threshold | Circuit breaker Event Threshold Value (Per NiFi Node): Min value: 100, Max value: 90000. |
| Trap Community | SNMP community string. multiple SNMP community string can be provided as (,) separated do not provide spaces in between (ex: communitystring1, communitystring2) |
| SNMPv3 Username | SNMPv3 Username |
| SNMPv3 Authentication Password | Password should contain 8 to 12 characters in length and include any combination of alphanumeric characters (uppercase letter, lowercase letters and numbers) |
| SNMPv3 Encryption Password | SNMP encryption password. Password must contain 8 characters in length and include any combination of alphanumeric characters(uppercase letters lowercase letters and numbers) |
| SNMPv3 EngineID | SNMP unique identifier like snmp entity, snmp agent or manager |
