Not able to reach the component

Table 1. iUnique: Scenario 5
Issue Description Error message ‘Not able to reach the component’ appears in job log details-step remarks column for iUnique job in manage jobs page, also the status is in ‘failed’ state
Modules Impacted iUnique
Probable Root Cause Duplication of keys in .cfg files present in python files

Resolution Steps:

  1. Check for Existence of the file iUnique.conf at location <Apache_Root_Folder_Path>/conf.

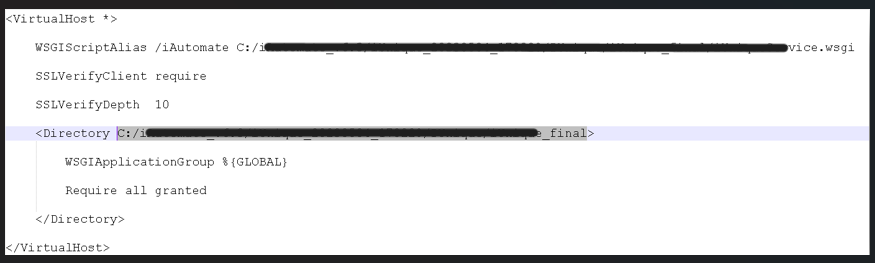

  2. At the bottom of iUnique.conf file you will find the path to the python files as highlighted in the below figure.
    Figure 1. HCL.iAutomate.iUnique(cont.)

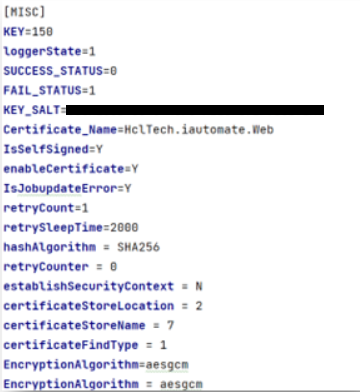

  3. Open the file iUnique.cfg from the location <highlighted_path_in_fig_000>/config and search for any duplicate keys present in the file. You can refer below keys for reference:
    Figure 2. HCL.iAutomate.iUnique(cont.)

  4. Remove the last entry that is duplicate for each key. In the above case delete the second entry of VALUE = 20000, VALUES = 200000, EncryptionAlgorithm = aesgcm. Similarly check for any other duplicate keys and remove the last entry and save the file.
  5. Finally, restart the service named HCL.iAutomate.iUnique
