Deploying HCL CDP Tryitout

Prerequisites

Make sure to create a cdp-tryitout secret in the HashiCorp vault before deploying the CDP Tryitout.

To create a CDP Tryitout secret in the HashiCorp vault, follow the steps below:

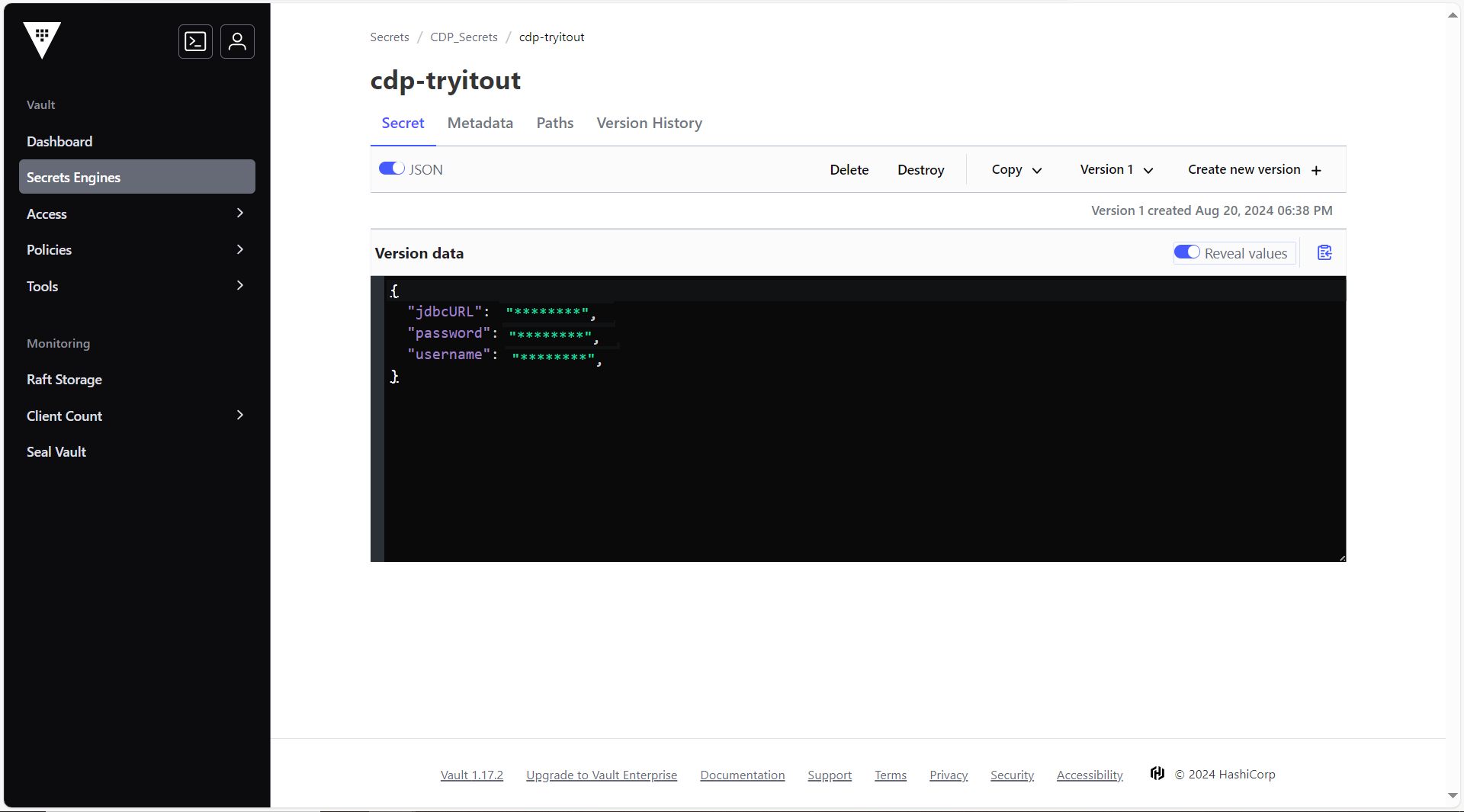

1. Create a cdp-tryitout secret sample key and value, and update the actual values as shown below.

   {
     "jdbcURL": "jdbc:mariadb://<DB_HOST>:3307/vrm",
     "username": "<DB_USER>",
     "password": "<DB_PASSWORD>"
   }

2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy CDP TryItOut

To deploy CDP TryItOut using Devtron in Openshift platform, follow the steps below:

1. Navigate to the Devtron Chart Store, and select cdp-tryitout chart to deploy.



2. Now, configure and deploy the cdp-tryitout charts.



3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   serverPort: "8080"
   serverShutdown: graceful
   lifecycle: 60s

   physicalStrategy: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl
   driver: org.mariadb.jdbc.Driver
   sqlStatement: "true"
   dialest: org.hibernate.dialect.MySQLDialect

   httpTimeout: "30000"
   storageEngine: innodb

   APP_DEBUG: DEBUG

   connectionTimeOutInMilis: "500000"
   responseTimeout: "500000"
   readTimeout: "500000"
   writeTimeOut: "50000"

   executorServiceMinThreads: "80"
   executorServiceMaxThreads: "80"
   executorServiceThreadTTL: "5"
   executorServiceQueuseSize: "100000"

   smsEmailSenderBaseUrl: "<masked-service-url>"
   addRecipientBaseUrl: "<masked-external-api>"
   adobeEndpoint: "<masked-adobe-api>"

   managementEndpoints: health,info,metrics

   httpsConnectionCount: "30"
   httpsConnectionKeepAliveSeconds: "120"
   httpsConnectionReadTimeoutSeconds: "1220"
   httpsConnectionWriteTimeoutSeconds: "1230"
   httpsConnectTimeoutSeconds: "1240"

   hikariPoolSize: "5"
   hikariTimeOut: "30000"
   hikariIdleTimeOut: "10000"
   minimumIdle: "0"

   APP_LOG_LEVEL: debug

   fromEmailId: user@domain.com
   alertToEmailId: user@domain.com

   KMS_IMPLEMENTATION: AWS



4. On successful deployment, validate the deployment as shown below.
