Deploying CDP Trigger

Prerequisites

Make sure to create a cdp-trigger secret in the HashiCorp vault before deploying the CDP Trigger.

To create a CDP Trigger secret in the HashiCorp vault, follow the steps below:

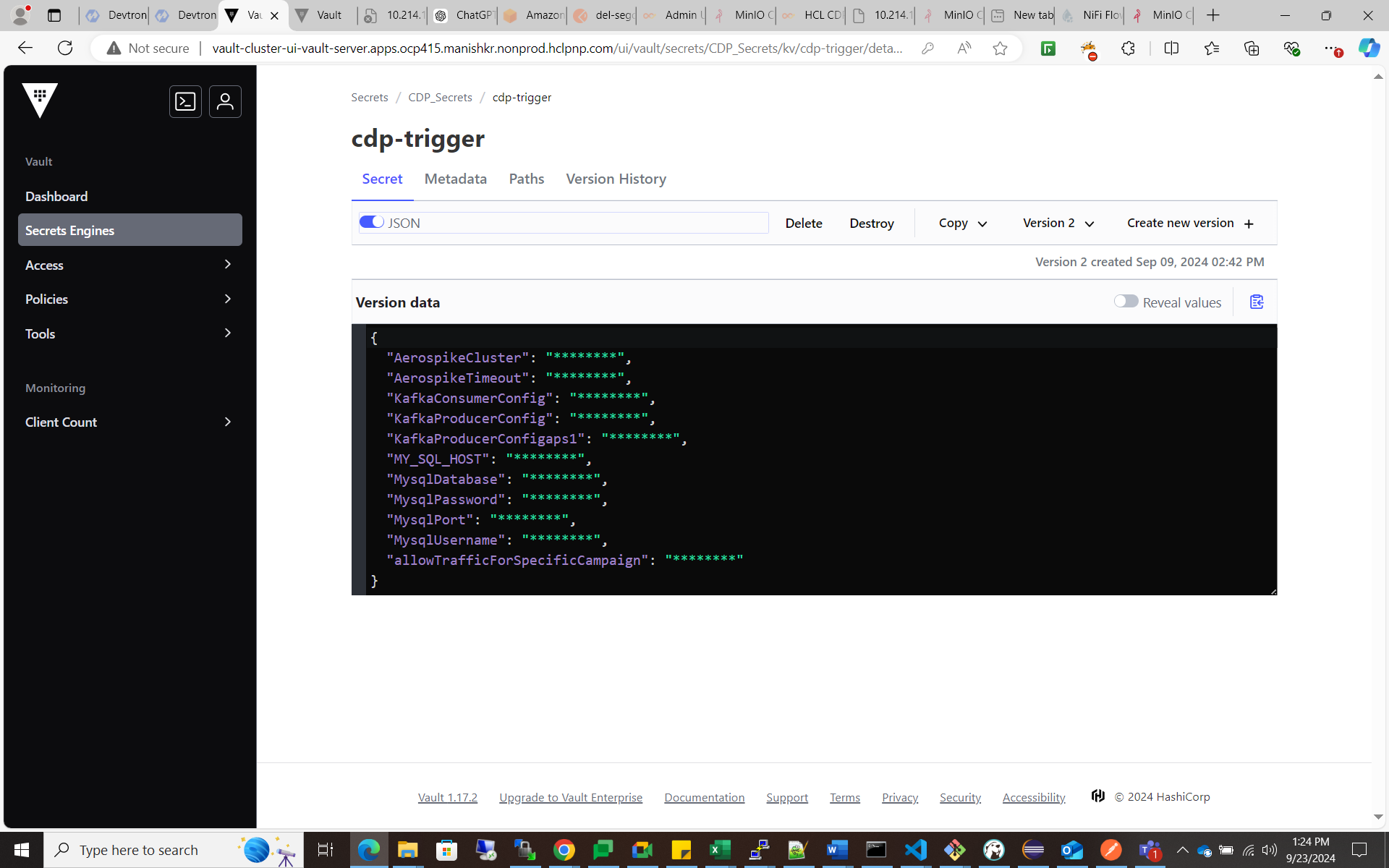

1. Create a cdp-trigger secret sample key and value, and update the actual values as shown below.

   {
     "AerospikeCluster": "<AerospikeCluster>",
     "AerospikeTimeout": "10000",
     "KafkaConsumerConfig": "<KafkaConsumerConfig>",
     "KafkaProducerConfig": "<KafkaProducerConfig>",
     "KafkaProducerConfigaps1": "<KafkaProducerConfigaps1>",
     "MY_SQL_HOST": "<MY_SQL_HOST>",
     "MysqlDatabase": "<MysqlDatabase>",
     "MysqlPassword": "<MysqlPassword>",
     "MysqlPort": "<MysqlPort>",
     "MysqlUsername": "<MysqlUsername>",
     "allowTrafficForSpecificCampaign": "false"
   }

2. Create a Kubernetes Secret with Vault credentials to fetch the secrets from the vault.

   apiVersion: v1
   kind: Secret
   metadata:
     name: vault-creds
     namespace: cdp-dev-app
   type: Opaque
   data:
     username: <vault username>
     password: <vault password>

3. Create separate service account cdp-dev-app-sa with appropriate roles and permissions, and update ConfigMaps data with actual values.
4. Create required Kafka topics before deployment. A sample Kafka topic configuration is shown below.



Deploy CDP Trigger

To deploy CDP Trigger using Devtron in Openshift platform, follow the steps below:

1. Navigate to the Devtron Chart Store, and select cdp-trigger chart to deploy.



2. Now, configure and deploy the cdp-trigger charts.



3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   {
     "AerospikeCluster": "<AERO_HOST_1>:13000,<AERO_HOST_2>:13000",
     "AerospikeTimeout": "10000",

     "MY_SQL_HOST": "<DB_HOST>",
     "MysqlDatabase": "vrm",
     "MysqlUsername": "<DB_USER>",
     "MysqlPassword": "<DB_PASSWORD>",
     "MysqlPort": "3307",

     "allowTrafficForSpecificCampaign": "false",

     "KafkaConsumerConfig": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|group.id::k8s-trigger-prod",

     "KafkaProducerConfig": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|acks::all|max.block.ms::5000",

     "KafkaProducerConfigaps1": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|acks::all|max.block.ms::5000",

     "AerospikeUsername": "<AERO_USER>",
     "AerospikePassword": "<AERO_PASSWORD>"
   }



4. On successful deployment, validate the deployment as shown below.
