Deploying CDP Flip

Prerequisites

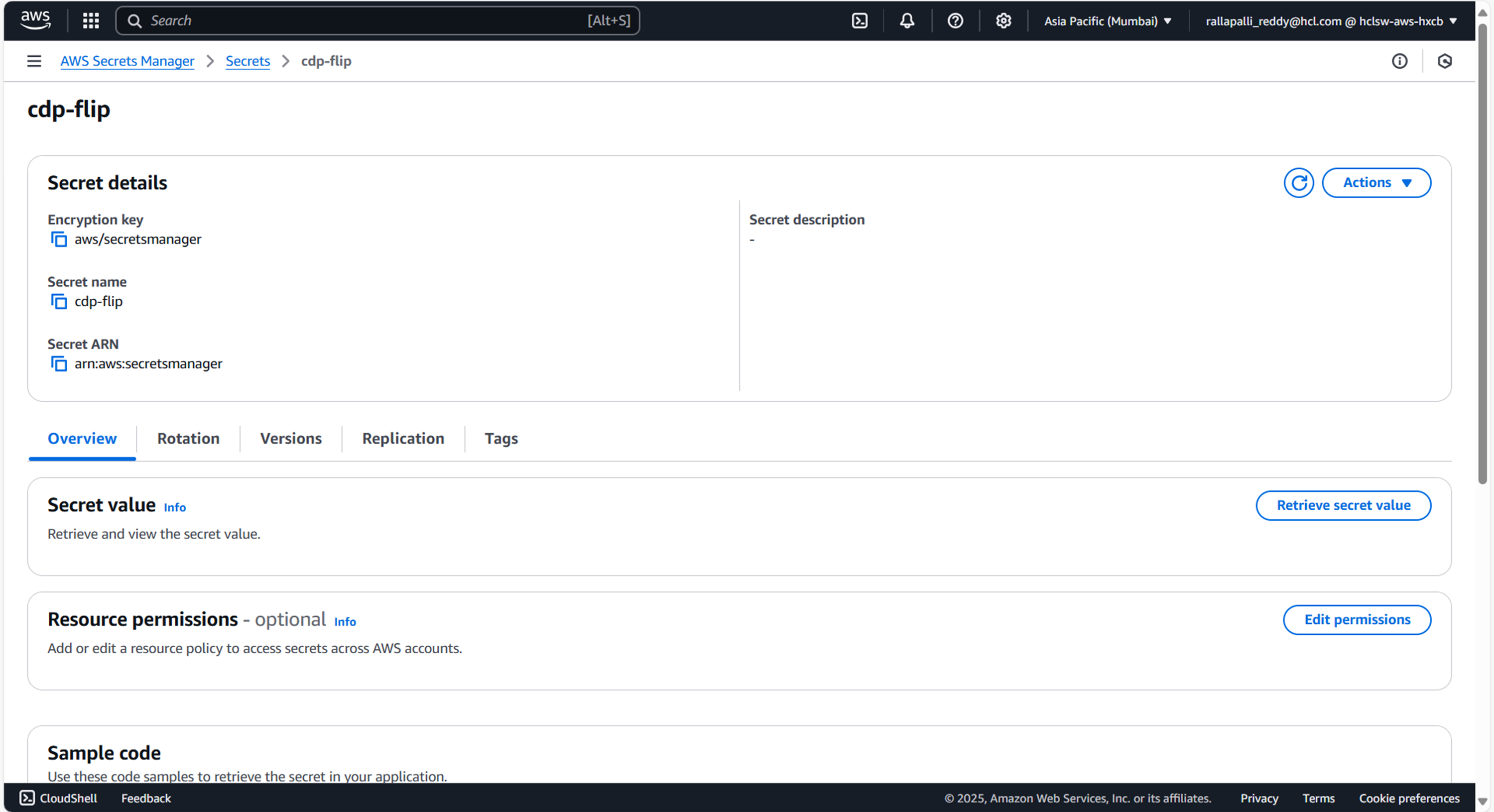

Make sure to create cdp-flip secret in the AWS Secret Manager before deploying CDP Flip.

To create CDP Flip secret in the AWS secret Manager, follow the steps below:

1. Create a cdp-flip secret sample key and value, and update the actual values as shown below.

   {
     "CUSTOMIZATION_AERO_CLUSTER": "",
     "DB_USERNAME": "",
     "DB_PASSWORD": "",
     "DB_URL": "",
     "KafkaConsumerConfig": "",
     "KAFKA_CONSUMER_PREFIX": "flip",
     "KAFKA_TOPIC_LIST": "dmp_rt_segments"
   }

2. Create separate service account cdp-dev-app-sa with appropriate roles and permissions, and update ConfigMaps data with actual values.
3. Create required Kafka topics before deployment.

Deploy CDP Flip

1. Navigate to the Devtron Chart Store, and select the cdp-flip chart to deploy.



2. Now, configure and deploy the cdp-flip charts.



3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   AERO_CUSTOMIZATION_NS: "<AERO_CUSTOMIZATION_NAMESPACE>"
   AERO_CUSTOMIZATION_TIMEOUT: "<AERO_CUSTOMIZATION_TIMEOUT>"
   AERO_RTS_CACHE_EXPIRY: "<AERO_RTS_CACHE_EXPIRY>"

   MYSQL_DBDRIVER: "<MYSQL_DB_DRIVER>"
   MYSQL_REFRESH_DBREFRESHTIMEMIN: "<MYSQL_REFRESH_INTERVAL_MIN>"

   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_MIN_THREADS: "<FLIP_EXECUTOR_MIN_THREADS>"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_MAX_THREADS: "<FLIP_EXECUTOR_MAX_THREADS>"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_THREAD_TTL: "<FLIP_EXECUTOR_THREAD_TTL>"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_QUEUSE_SIZE: "<FLIP_EXECUTOR_QUEUE_SIZE>"

   KAFKA_CONSUMER_GROUP_ID: "<KAFKA_CONSUMER_GROUP_ID>"
   KAFKA_CONSUMER_GROUP_PREFIX: "<KAFKA_CONSUMER_GROUP_PREFIX>"
   KAFKA_REBALANCE_MAX_RETRIES: "<KAFKA_REBALANCE_MAX_RETRIES>"

   KAFKA_CONSUMER_TOPIC_LIST: "<KAFKA_CONSUMER_TOPIC_LIST>"
   KAFKA_CONSUMER_TOPIC_CONSUMERS: "<KAFKA_CONSUMER_TOPIC_CONSUMERS>"
   KAFKA_CONSUMER_TOPIC_CONSUMER_BATCH_SIZE: "<KAFKA_CONSUMER_BATCH_SIZE>"
   KAFKA_CONSUMER_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_MS: "<KAFKA_CONSUMER_BATCH_TIMEOUT_MS>"
   KAFKA_CONSUMER_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_TRIGGER: "<KAFKA_CONSUMER_BATCH_TIMEOUT_TRIGGER>"

   KAFKA_CONSUMER_EVENT_MAX_EVENT_BATACH_LAG: "<KAFKA_MAX_EVENT_BATCH_LAG>"
   KAFKA_CONSUMER_EVENT_SR_MAX_EVENT_BATCH_LAG: "<KAFKA_SR_MAX_EVENT_BATCH_LAG>"
   KAFKA_CONSUMER_EVENT_MAX_BATCH_EXECUTE_RETRIES: "<KAFKA_MAX_BATCH_EXECUTE_RETRIES>"

   KAFKA_PRODUCER_METADATA_BROKER_LIST: "<KAFKA_BROKER_LIST>"
   KAFKA_PRODUCER_SERIALIZER_CLASS: "<KAFKA_PRODUCER_SERIALIZER_CLASS>"
   KAFKA_PRODUCER_ID: "<KAFKA_PRODUCER_ID>"
   KAFKA_PRODUCER_REQUIRED_ACKS: "<KAFKA_REQUIRED_ACKS>"
   KAFKA_PRODUCER_REQUIRED_TIMEOUT: "<KAFKA_REQUIRED_TIMEOUT>"
   KAFKA_PRODUCER_TYPE: "<KAFKA_PRODUCER_TYPE>"
   KAFKA_PRODUCER_COMPRESSION_CODEC: "<KAFKA_COMPRESSION_CODEC>"
   KAFKA_PRODUCER_MAX_RETRIES: "<KAFKA_PRODUCER_MAX_RETRIES>"
   KAFKA_PRODUCER_RETRY_BACKOFF: "<KAFKA_PRODUCER_RETRY_BACKOFF>"
   KAFKA_PRODUCER_NC_EVENT_TYPE: "<KAFKA_NC_EVENT_TYPE>"
   KAFKA_PRODUCER_HOSTNAME: "<KAFKA_PRODUCER_HOSTNAME>"
   KAFKA_PRODUCER_POOL_SIZE: "<KAFKA_PRODUCER_POOL_SIZE>"
   KAFKA_PRODUCER_NOTIFTOPIC: "<KAFKA_PRODUCER_NOTIFICATION_TOPIC>"

   LOG_TSDB_METRIC_LOGGING_FREQUENCY_MS: "<TSDB_METRIC_LOG_FREQUENCY_MS>"
   LOG_TSDB_MAX_WAIT_FOR_CONNECTION_REESTABLISH: "<TSDB_MAX_WAIT_RECONNECT>"
   LOG_TSDB_SERVER_ADDRESS: "<TSDB_SERVER_ADDRESS>"
   LOG_TSDB_SERVER_PORT: "<TSDB_SERVER_PORT>"
   LOG_TSDB_HOSTNAME: "<TSDB_HOSTNAME>"

   LOG_GANGLIA_GMOND_COLLECTORS: "<GANGLIA_GMOND_COLLECTORS>"
   LOG_GANGLIA_GMOND_PORT: "<GANGLIA_GMOND_PORT>"
   LOG_GANGLIA_HOSTNAME_OVERRIDE: "<GANGLIA_HOSTNAME_OVERRIDE>"
   LOG_GANGLIA_METRIC_PREFIX: "<GANGLIA_METRIC_PREFIX>"

   AERO_KEYS_ORDER: "<AERO_KEYS_ORDER>"
   AERO_METADATA_ITEMS: "<AERO_METADATA_ITEMS>"

   APP_LOG_LEVEL: "<APP_LOG_LEVEL>"

   KAFKA_BATCH_SIZE: "<KAFKA_BATCH_SIZE>"
   MAX_EVENT_BATCH_LAG: "<MAX_EVENT_BATCH_LAG>"
   BATCH_TIMEOUT_MS: "<BATCH_TIMEOUT_MS>"
   BATCH_TIMEOUT_TRIGGER: "<BATCH_TIMEOUT_TRIGGER>"
   KAFKA_TOPIC_CONSUMERS: "<KAFKA_TOPIC_CONSUMERS>"

   FLATTEN_ARRAY_IN_MACRO: "<BOOLEAN>"



4. On successful deployment, validate the deployment as shown below.
