Deploying HCL CDP ExternalAPI

Prerequisites

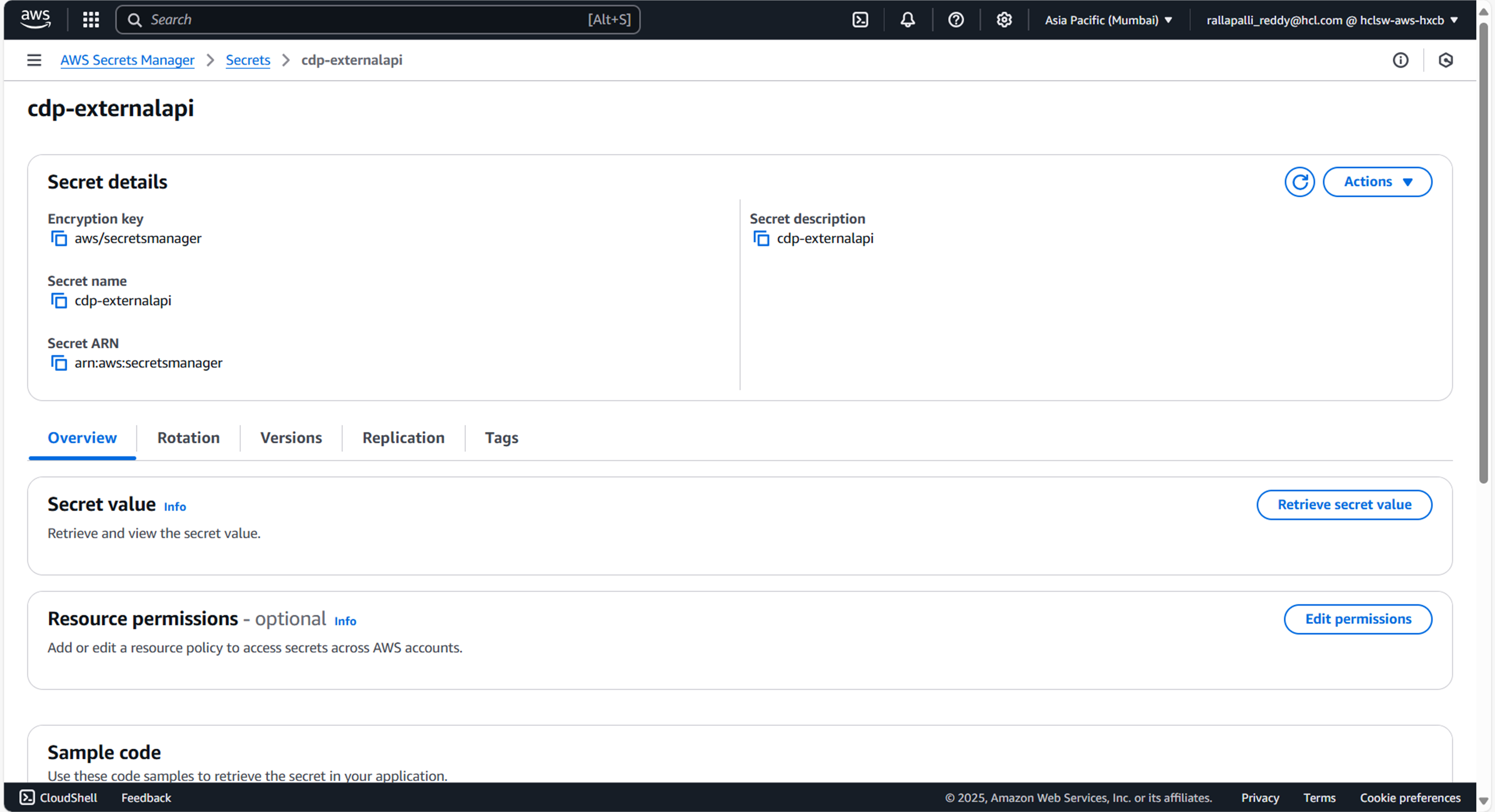

Make sure to create cdp-externalapi secret in the AWS secret manager before deploying CDP External API.

To create cdp-externalapi secret in the AWS secret manager, follow the steps below:

1. Create a cdp-externalapi secret sample key and value, and update the actual values as shown below.

   {
   "DbUrl":"",
   "DbUsername":"",
   "DbUserPassword":""
   }

2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy HCL CDP External API

To deploy HCL CDP External API using Devtron in the AWS platform, follow the steps below:

1. Navigate to the Devtron Chart Store, and select the cdp-externalapi chart to deploy.



2. Now, configure and deploy the cdp-externalapi charts.



3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   ServerPort: 8080
   HibernateNaming: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl
   DbDriver: org.mariadb.jdbc.Driver
   DbSQL: true
   JpaHibernate: org.hibernate.dialect.MySQL5Dialect
   DbConnectionTimeout: 30000
   HibernateDialect: INNODB
   LOG_LEVEL_APP: DEBUG
   LOG_LEVEL_ROOT: DEBUG
   kmsBaseUrl: "<REDACTED>"
   region: aps1



4. On successful deployment, validate the deployment as shown below.
