Links tab

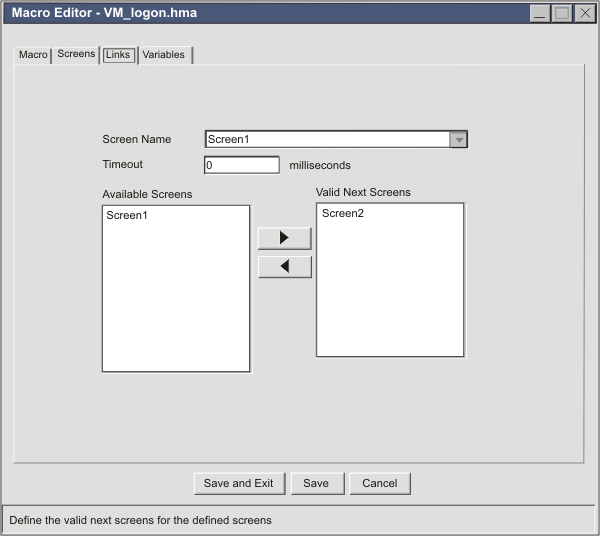

In the AME, the Links tab provides the user interface for storing the names of candidate macro screens into the <nextscreens> element of a macro screen. Links tab shows a sample Links tab:

In Links tab, the Screen Name list box at the top of the tab contains a list of all the macro screens in the entire macro. The currently selected macro screen is Screen1. On the right, the Valid Next Screens list box contains a list of candidate macro screens for Screen1. (Do not confuse this list box, which contains the names in the <nextscreens> element of Screen1, with the list of valid next screens that the macro runtime uses when a macro is played back). On the left, the Available Screens list box contains a list of the names of all other macro screens.

Links tab shows only one screen in the Available Screens list because this figure is from a macro with only two macro screens in it, Screen1 and Screen2. However, imagine a macro of twenty screens, and suppose that you want to add macro screens to the <nextscreens> list of a new macro screen, ScreenR. You would follow these steps:

1. On the Links tab, expand the Screen Name list box and scroll down until you find ScreenR.
2. Select ScreenR.
3. Because ScreenR is a new screen, there are no macro screen names listed in the Valid Next Screens list on the right.
4. On the left, the Available Next Screens list box contains the names of all the macro screens in the macro.
5. Select a screen that you want to add to the list for ScreenR. Suppose that you select ScreenS.
6. After selecting ScreenS, click the right arrowhead button between the two list boxes. ScreenS is added to the list box on the right, and removed from the list box on the left.
7. In the same way, move the names of any other macro screens that you want to the Valid Next Screens list box for ScreenR.
8. Move a total of three screen names: ScreenS, ScreenG, and ScreenY.

When you are done, ScreenR, the currently selected macro screen, has the names of three macro screens in its list of valid next screens.

In the source view, you would see the names of the valid next macro screens, ScreenS, ScreenG, ScreenY, stored inside ScreenR as shown in Macro screen ScreenR with <nextscreens> element:

<screen name="ScreenR" entryscreen="true" exitscreen="false" transient="false">
   <description>
      ...
   </description>
   <actions>
      ...
   </actions>
   <nextscreens>
      <nextscreen name="ScreenS"/>
      <nextscreen name="ScreenG"/>
      <nextscreen name="ScreenY"/>
   </nextscreens>
</screen>

Macro screen ScreenR with <nextscreens> element shows the <screen> element for ScreenR, with the name attribute set to "ScreenR". Inside are the three primary structural elements of a <screen> element: the <description> element, the <actions> element, and the <nextscreens> element. The contents of the <description> element and the <actions> element are not shown but are indicated with ellipses (...). The <nextscreens> element contains three <nextscreens> elements, and each <nextscreen> element contains the name of one of the valid next screens: ScreenS, ScreenG, and ScreenY.
