Deploying CDP Mongo Sink Connector

This section provides detailed instructions on how to deploy HCL CDP Mongo Sink Connector using the Devtron in the OpenShift.

Prerequisites:

Make sure to create the mongo-sink-connector secret with required data in the HashiCorp vault before deploying the CDP Mongo Sink Connector.

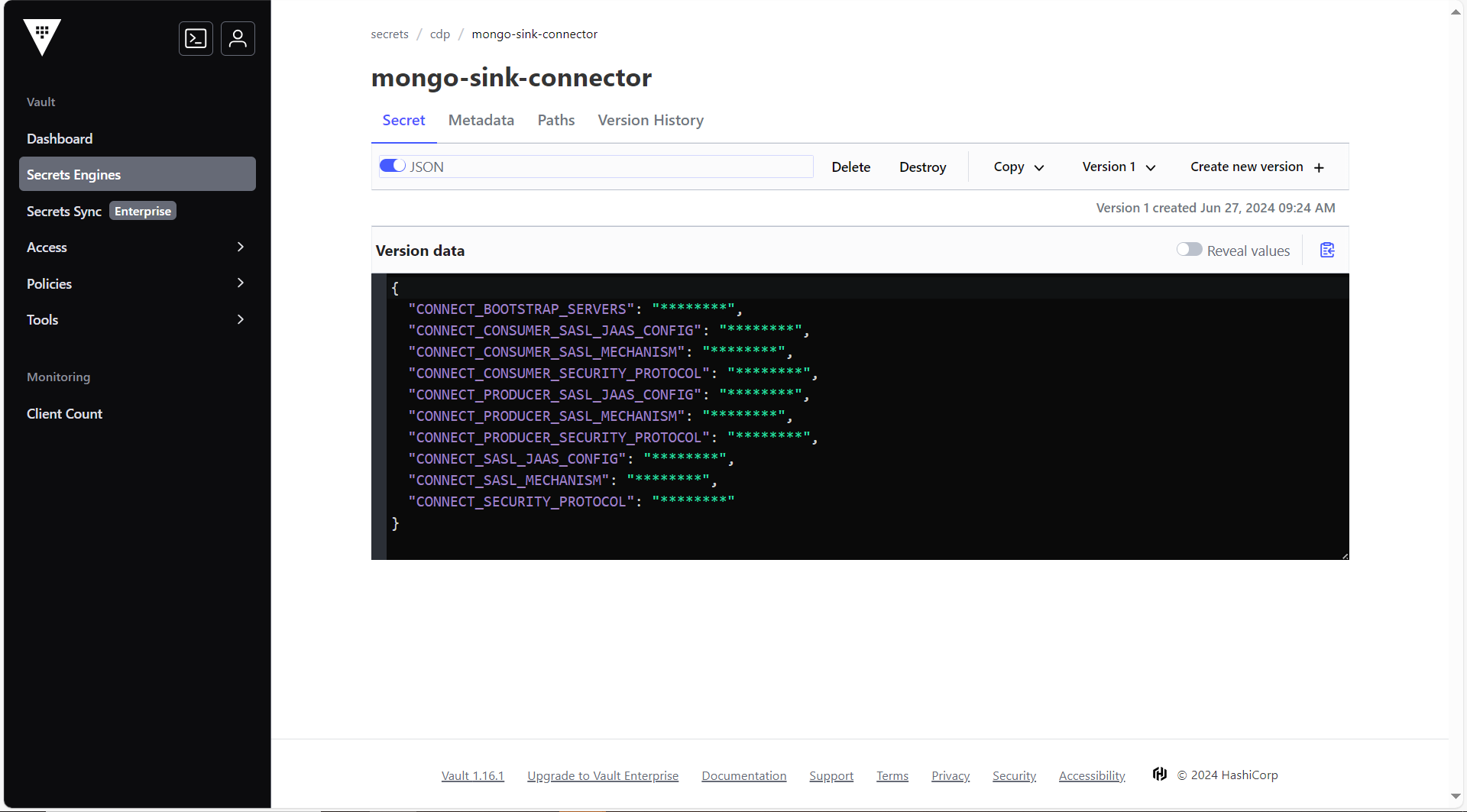

To create the mongo-sink-connector secret in the HashiCorp Vault, follow the steps below:

  1. Create a mongo-sink-connector secret sample key and value in the mongo-sink-connector secret, and update ConfigMaps data with actual values.
    {
  "CONNECT_BOOTSTRAP_SERVERS": <CONNECT_BOOTSTRAP_SERVERS>,
  "CONNECT_CONSUMER_SASL_JAAS_CONFIG": <CONNECT_CONSUMER_SASL_JAAS_CONFIG>,
  "CONNECT_CONSUMER_SASL_MECHANISM": <CONNECT_CONSUMER_SASL_MECHANISM>,
  "CONNECT_CONSUMER_SECURITY_PROTOCOL": <CONNECT_CONSUMER_SECURITY_PROTOCOL>,
  "CONNECT_PRODUCER_SASL_JAAS_CONFIG": <CONNECT_PRODUCER_SASL_JAAS_CONFIG>,
  "CONNECT_PRODUCER_SASL_MECHANISM": <CONNECT_PRODUCER_SASL_MECHANISM>,
  "CONNECT_PRODUCER_SECURITY_PROTOCOL": <CONNECT_PRODUCER_SECURITY_PROTOCOL>,
  "CONNECT_SASL_JAAS_CONFIG": <CONNECT_SASL_JAAS_CONFIG>,
  "CONNECT_SASL_MECHANISM": <CONNECT_SASL_MECHANISM>,
  "CONNECT_SECURITY_PROTOCOL": <CONNECT_SECURITY_PROTOCOL>
}

Deploying CDP Mongo Sink Connector

To deploy the CDP Mongo Sink Connector, follow the steps below:

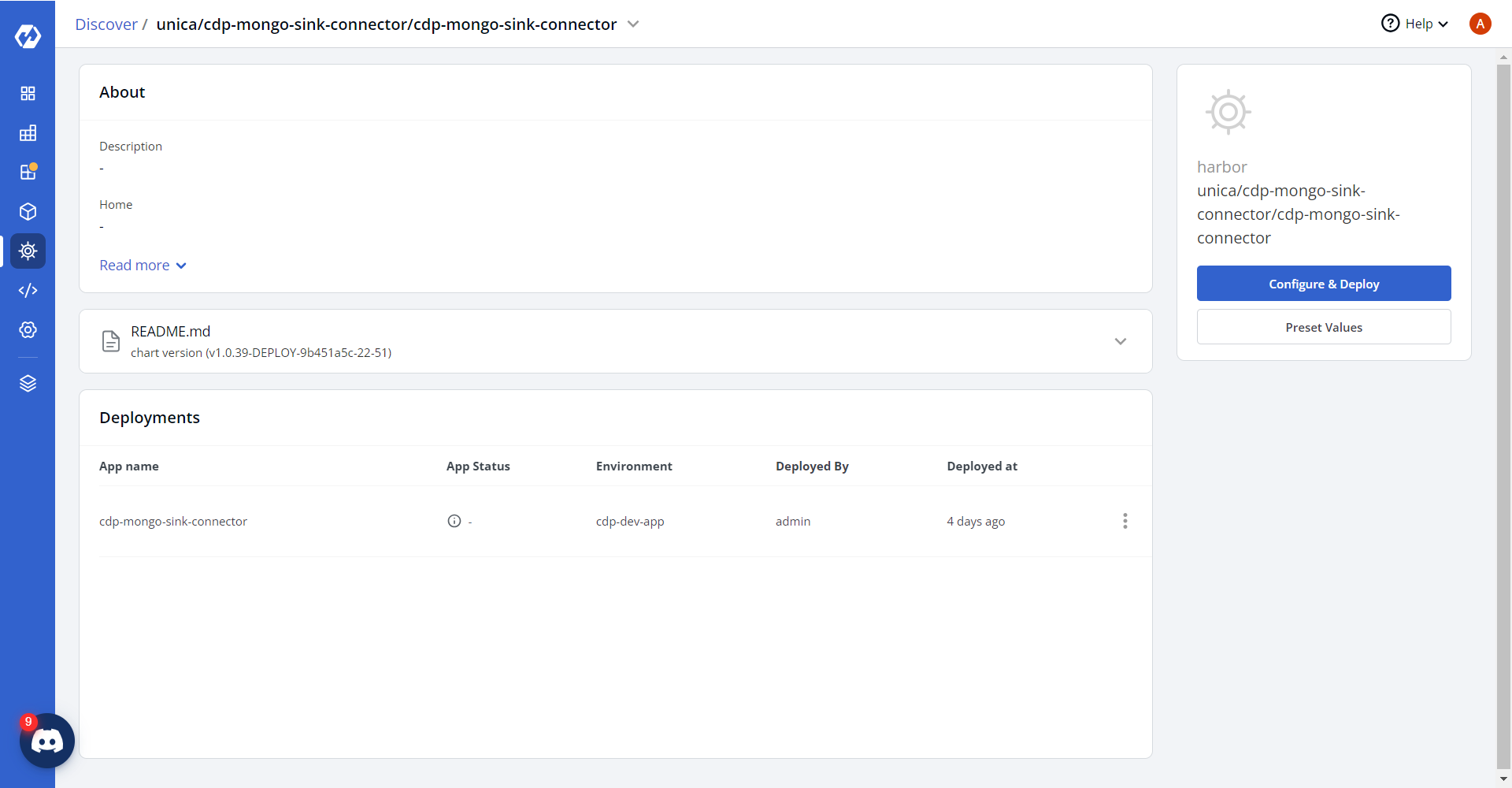

  1. Navigate to the Devtron Chart Store, and select the cdp-mongo-sink-connector chart to deploy.

  2. Now, configure and deploy the CDP Mongo Sink Connector.

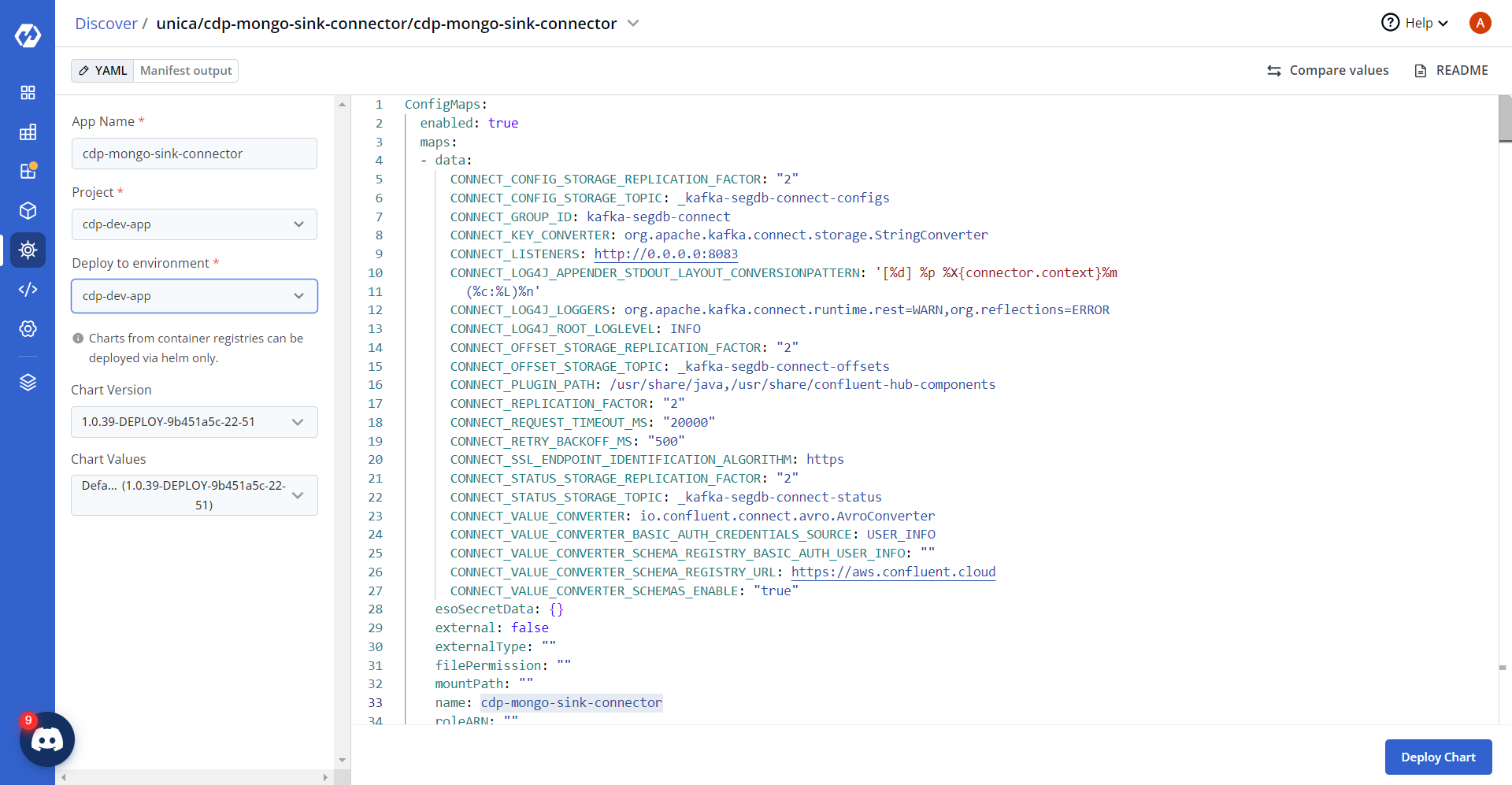

  3. In the YAML section, update the ConfigMap using below details, and deploy the charts.
    CONNECT_CONFIG_STORAGE_REPLICATION_FACTOR: "2"
CONNECT_CONFIG_STORAGE_TOPIC: _kafka-segdb-connect-configs
CONNECT_GROUP_ID: kafka-segdb-connect
CONNECT_KEY_CONVERTER: org.apache.kafka.connect.storage.StringConverter
CONNECT_LISTENERS: http://0.0.0.0:8083
CONNECT_LOG4J_APPENDER_STDOUT_LAYOUT_CONVERSIONPATTERN: '[%d] %p %X{connector.context}%m
  (%c:%L)%n'
CONNECT_LOG4J_LOGGERS: org.apache.kafka.connect.runtime.rest=WARN,org.reflections=ERROR
CONNECT_LOG4J_ROOT_LOGLEVEL: INFO
CONNECT_OFFSET_STORAGE_REPLICATION_FACTOR: "2"
CONNECT_OFFSET_STORAGE_TOPIC: _kafka-segdb-connect-offsets
CONNECT_PLUGIN_PATH: /usr/share/java,/usr/share/confluent-hub-components
CONNECT_REPLICATION_FACTOR: "2"
CONNECT_REQUEST_TIMEOUT_MS: "20000"
CONNECT_RETRY_BACKOFF_MS: "500"
CONNECT_SSL_ENDPOINT_IDENTIFICATION_ALGORITHM: https
CONNECT_STATUS_STORAGE_REPLICATION_FACTOR: "2"
CONNECT_STATUS_STORAGE_TOPIC: _kafka-segdb-connect-status
CONNECT_VALUE_CONVERTER: io.confluent.connect.avro.AvroConverter
CONNECT_VALUE_CONVERTER_BASIC_AUTH_CREDENTIALS_SOURCE: USER_INFO
CONNECT_VALUE_CONVERTER_SCHEMA_REGISTRY_BASIC_AUTH_USER_INFO: ""
CONNECT_VALUE_CONVERTER_SCHEMA_REGISTRY_URL: https://aws.confluent.cloud
CONNECT_VALUE_CONVERTER_SCHEMAS_ENABLE: "true"

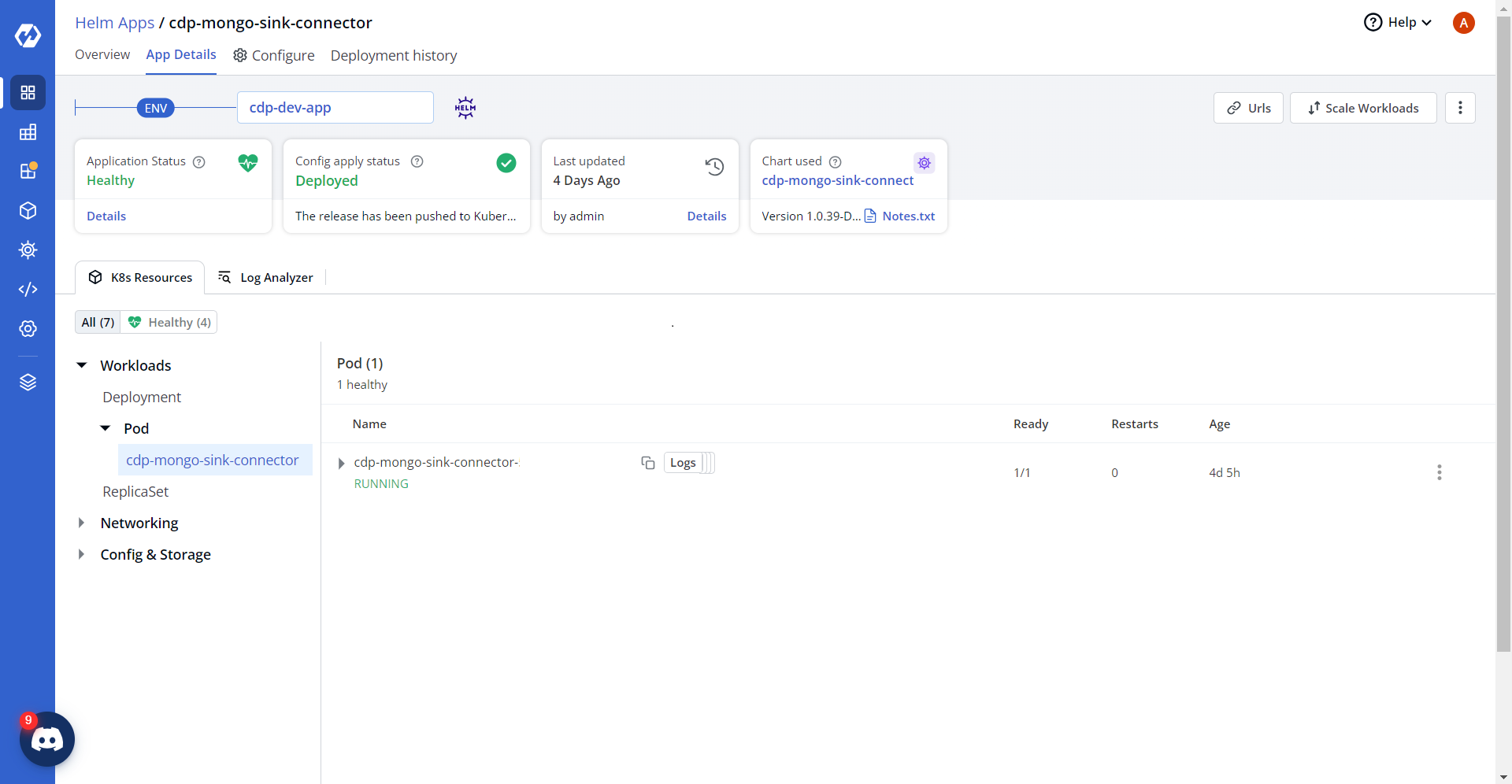

  4. On successful deployment, validate the deployment as shown below.
