Journey Integration

Prerequisite

Make sure that the following things are in place:

• Create a journey, entry source and data definition in the Unica Journey. For more information, refer Getting started with Unica Journey.
• Create Journey Rest integration. For more information, refer Creating a new REST integration.
• Create Journey API Channel in the HCL CDP, only if Journey API is not listed in Channels. For more information about create the Journey API table, refer Create Trigger API channel as Journey API.
• Configure the Journey API refresh token to authenticate the Journey API. For more information about refresh token configuration, refer Configure Journey refresh token API.

Create Trigger API channel as Journey API

Before you create the channel, make sure the Journey API feature is not available in the application. To create a new trigger api channel for Journey API, follow the steps below:

1. In the DMPChannel table, add a new entry for JOURNEY Channel using the following query.

   INSERT INTO DMPChannel
               (Name,
                Description,
                DisplayName,
                ECDisplayName,
                Preference,
                Config,
                Type)
   VALUES      ('JOURNEY API',
                'JOURNEY API',
                'Journey API',
                'Trigger API',
                21,
                '{"isSegChannelCap":1}',
                'trapi');


2. After inserting the Journey channel, in the DMPCampaignChannelMapping table, insert the journey ChannelMapping using the following query.

   INSERT INTO DMPCampaignChannelMapping
       (CampaignId,
        DMPChannelId,
        Status,
        ImpressionCap,
        ImpressionEnabled,
        FrequencyCaps,
        EmailScheduleTimeInMins,
        IcDisabled,
        DMPCampaignChannelMapping)
   VALUES
       (6525,
        31,
        1,
        500,
        0,
        '{"monthly":{"value":1500},"weekly":{"value":1350},"daily":{"value":200,"isPersistent":0},"lifetime":200}',
        10,
        1,
        5);

3. On successful update, the journey api will be listed under the Channels.

Configure Journey refresh token API

Unica Journey uses thirdpartylogin api to generate authentication token to send the data from HCL CDP. To generate authentication token, follow the steps below:

1. Before generating the tokens, encrypt the clientSecret using KMS encrypt api. Use the following curl commands to encrypt the clientSecret.

   curl --location 'https://<base_url>/kms-service/kms/encrypt' \
   --header 'Content-Type: application/json' \
   --data '{
       "kmsKey": "arn:aws:kms:ap-south-1:654654226610:key/8595ade8-8f55-4487-92da-b42183a2b455",
       "data": "8eInFG2JqfLCkYl9o7.GjpmVZlA4.JkW",
       "campaignId": "campaignID", //replace campaignID
       "region": "aps1"
   }'

   Response:

   {
       "val": "+la4fQPzcUtxjl9t+sekbvGnIjUflBHJjmBuvxCDbzwczhiSdjCV/hp9R2XYmhdK",
       "key": "AQIDAHi1hwJPT6CZTmDECgxOuTdLNdmiQDB2pRjyszBH67kWkQFwJukJOvuPFkYdvF7/2K06AAAAfjB8BgkqhkiG9w0BBwagbzBtAgEAMGgGCSqGSIb3DQEHATAeBglghkgBZQMEAS4wEQQM8NyLH08Qj6TdjZ97AgEQgDte70kBTjq9vE1Z4igQAbLh5noiwcPlZSAPbtEM6TDTPQeyt4o4wVBizTQoykaED/0rhXvtbHcZGQmMFA=="
   }

2. Use the Journey's third party login API to generate tokens.
   1. Endpoint: https://unicabeta.hcltechsw.com/journey/api/thirdpartylogin
   2. RequestType: POST
   3. ContentType: application/json
   4. EncPassword: Include the encrypted clientSecret val generated from the above step.
   5. EncKey: Include the encrypted clientSecret key generated from the above step.
   6. Config: JSON corresponding to the request parameters and also the response parsing for ThirdParty token.

   {
       "accessTokenParam": "tokenId", //Response parameter key for the Refresh token"
       "p": { // Request Parameters for JSON body as per the request payload that you need,
           "clientId": "cliendID", //replace with client ID
           "clientSecret": "@PASSWORD@", //PASSWORD macro is decrypted and replaced from EncPassword while generating a fresh token.
       },
       "h": {}, // Request Headers
       "qp": {} // Query Parameters that you want to send if it is a GET request
   }

3. In the DMPTriggerApiAuthDetails table, add above prepared refresh token entry. Use the following SQL query.

   INSERT INTO DMPTriggerApiAuthDetails
               (id,
                Name,
                CampaignId,
                Endpoint,
                RequestType,
                ContentType,
                EncPassword,
                EncKey,
                Config)
   VALUES      (51,
                ‘journeyThirdpartyToken’,
                6335,
                https://unicabeta.hcltechsw.com/journey/api/thirdpartylogin ',
                POST,
                application/json ',
                iYTY0M0srD82xP9E7oNeBSRMn8GK9EyFbOjPFnnbf+WR6isz4dCz64n1wyH2e/A7',
   ‘bmotc2FtcGxlOnZhdWx0OnYxOjZtbGhab0NlbGJrYThpcjJacHJ0NEs0VXN1WEVqNGYvN1orUzM1MkVyN05WYjZjMEZrT0xQNURXSm1COXg4STF1TDZvRnhqMEF5MnU2UVc1’
                ,
   '{"accessTokenParam":"tokenId","p":{"clientId":"yAzVN1zDl4RhTeaEge42Ipbw30Mp.oO8","clientSecret":"@PASSWORD@"},"h":{},"qp":{}}'
   );

Configure Journey API

To configure journey API, follow the steps below:

1. Navigate to Channels > Journey API. Or Navigate to Segments > ALL SEGMENTS > select a segment and click Journey API.
2. Click +Add New Journey API, and add BASIC DETAILS.
   1. Name: Name your journey API. This name cannot be editable once it is saved.
   2. Description: Enter the description of your API.
   3. Journey API Details:
      1. URL: Enter the unica journey rest api url.
      2. Client ID:
      3. Client Secret:
3. Click Save Details to create Journey API.
4. On the Test API tab, enter the payload, and click Test Configuration to verify the journey api connectivity. Before testing the configuration, make sure to run the following queries in VRM database.
   1. Get the API ID from the database using the following query. In the below query, replace "JourneyApiname" with the created journey api name. The result of this query returns the API ID.

      SELECT Id FROM DMPTriggerApiDetails WHERE NAME='JourneyApiname'

   2. For the newly created Journey API, update the DMPTriggerApiAuthDetailsId and AuthType from DMPTriggerApiDetails to get a dynamic refresh token by providing API ID. Use the below query to update the authentication for the Journey API. In the below query, replace <ID> with the API ID obtained in the previous step.

      UPDATE DMPTriggerApiDetails
      SET DMPTriggerApiAuthDetailsId=51, AuthType='ACCESSKEY'
      WHERE Id= <ID>

5. On successful testing of API, create an engagement.

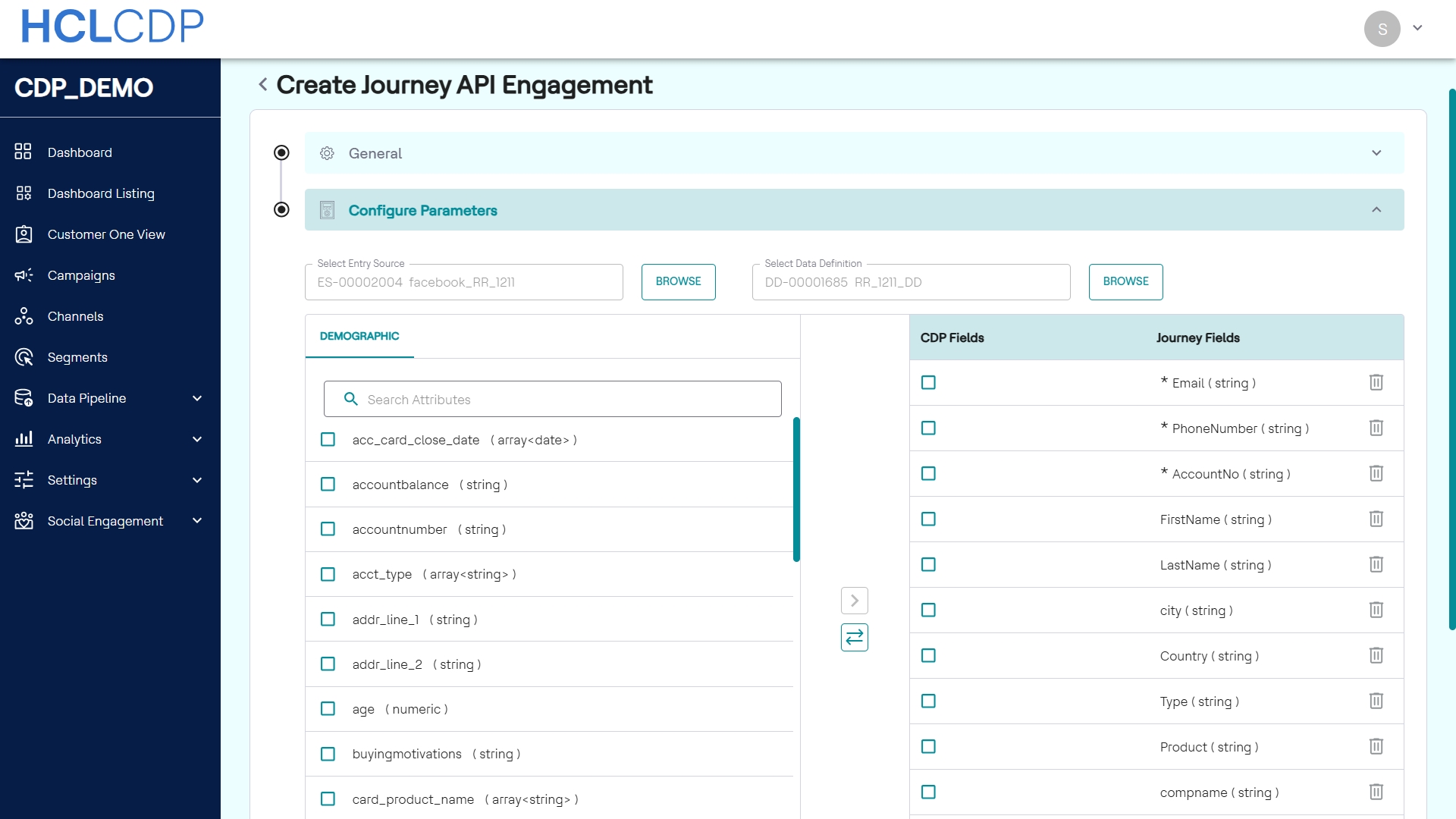

Create Engagement

After successfully configuring the Journey API, create an engagement and easily map fields between CDP (Athena) and Journey through a simplified UI and Auto mapping feature.

To create an engagement for Journey:
