Deploying CDP Manager

Prerequisites:

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP Manager.

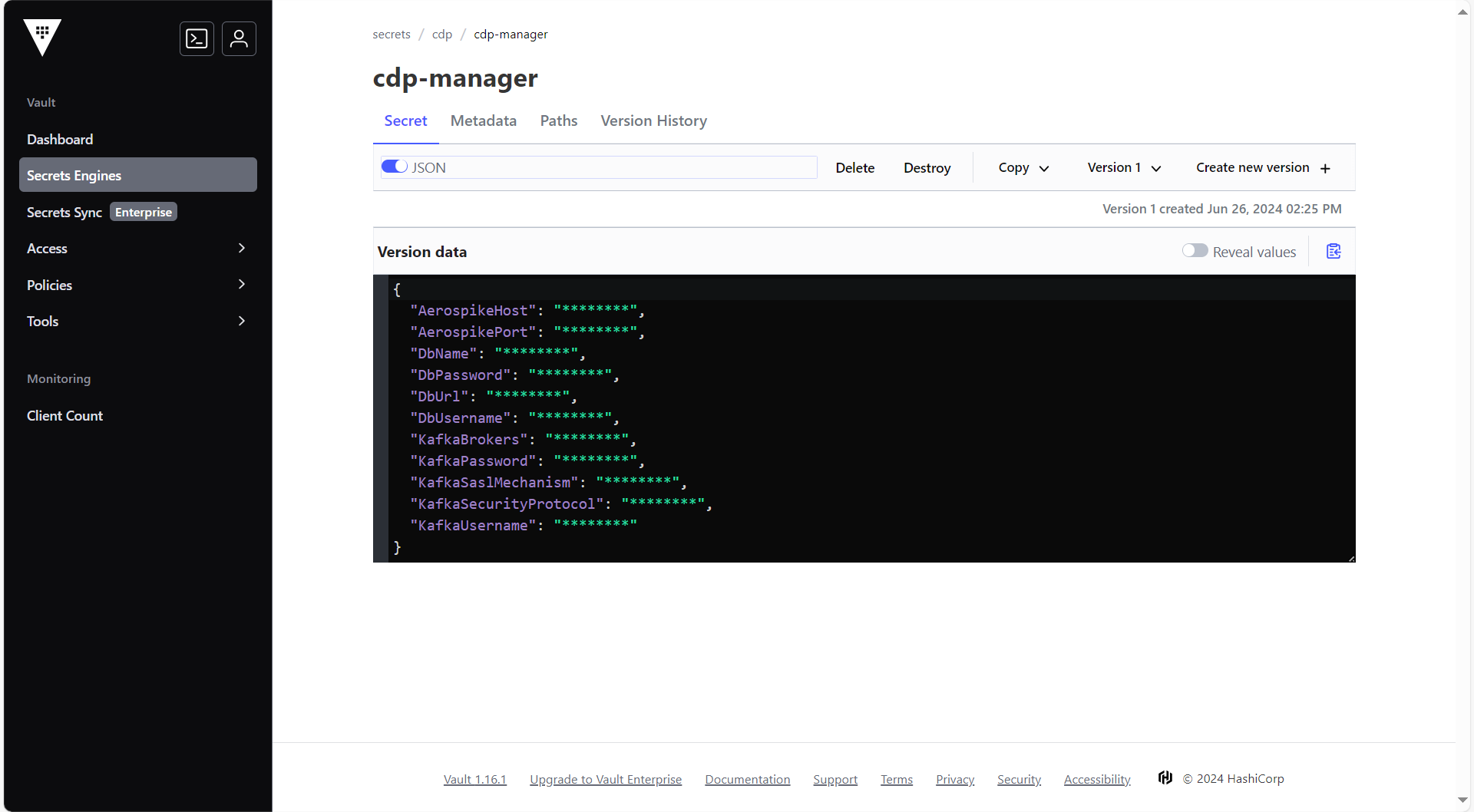

To create the UI secret in HashiCorp Vault, follow the steps below:

1. Create a UI secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "AerospikeHost": "<AerospikeHost>",
     "AerospikePort": "<AerospikePort>",
     "DbName": "<DbName>",
     "DbPassword": "<DbPassword>",
     "DbUrl": "<ip:port>",
     "DbUsername": "<DbUsername>",
     "KafkaBrokers": "<KafkaBrokers>",
     "KafkaPassword": "<KafkaPassword>",
     "KafkaSaslMechanism": "<KafkaSaslMechanism>",
     "KafkaSecurityProtocol": "<KafkaSecurityProtocol>",
     "KafkaUsername": "<KafkaUsername>"
   }

Deploying CDP Manager

To deploy the CDP Manager, follow these steps below:

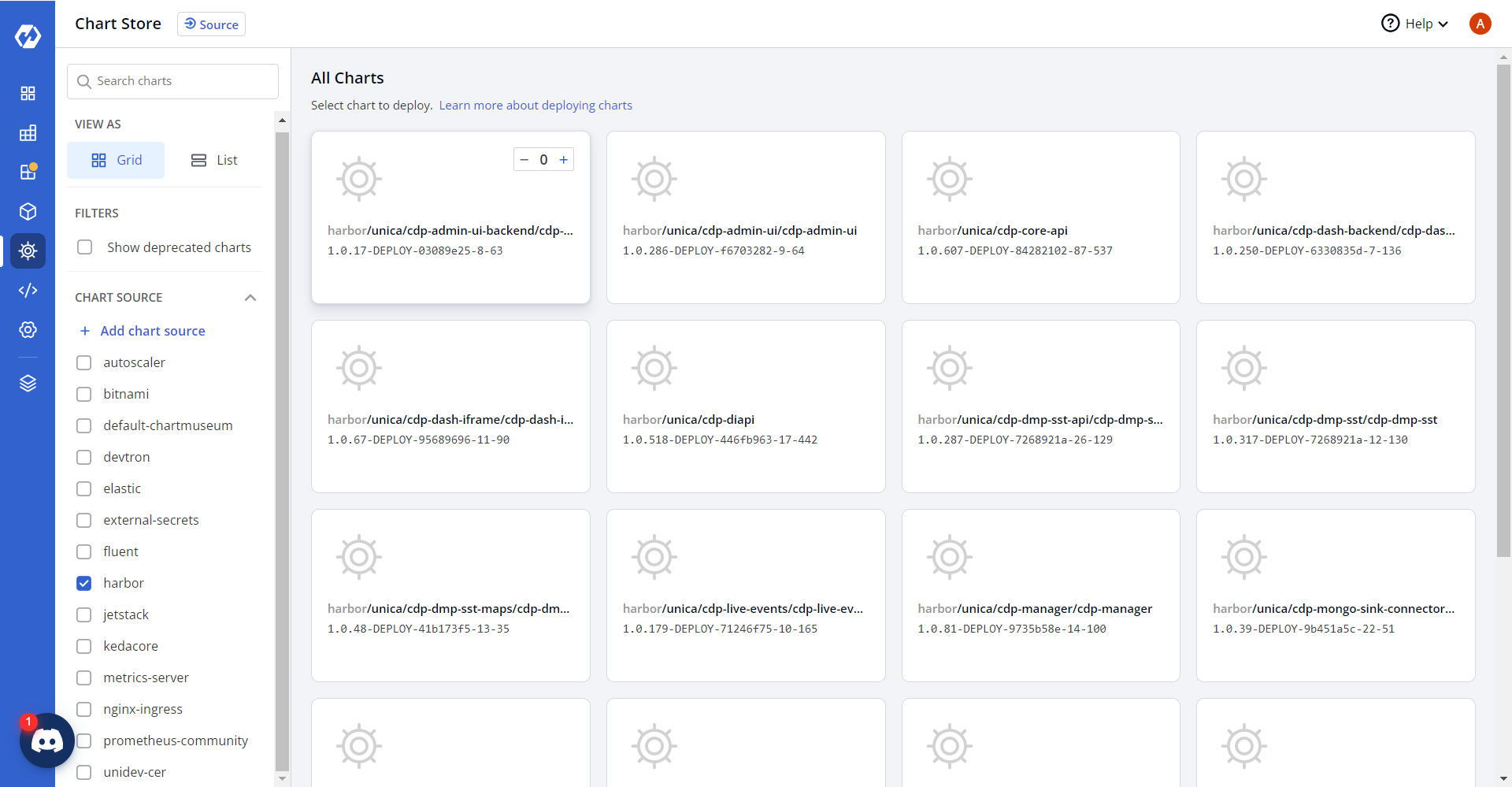

1. Navigate to the Devtron Chart Store, and select the cdp-manager chart to deploy.



2. Now, configure and deploy the CDP Manager charts.

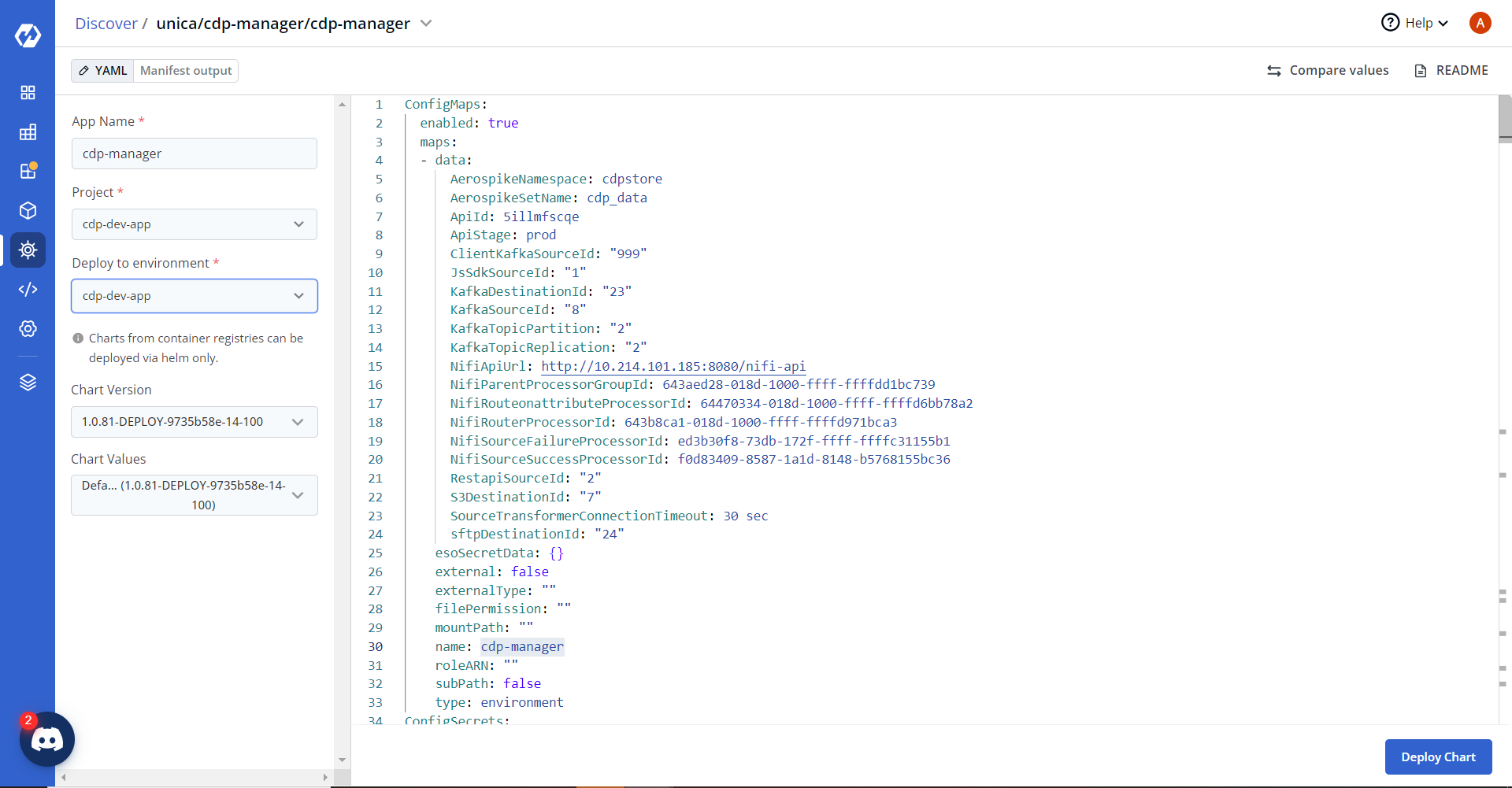

3. In the YAML section, update the ConfigMap using below details and deploy the charts.

   AerospikeNamespace: <AerospikeNamespace>
   AerospikeSetName: <AerospikeSetName>
   NifiApiUrl: http://<ip:port>/nifi-api
   NifiParentProcessorGroupId: <NifiParentProcessorGroupId>
   NifiRouteonattributeProcessorId: <NifiRouteonattributeProcessorId>
   NifiRouterProcessorId: <NifiRouterProcessorId>
   NifiSourceFailureProcessorId: <NifiSourceFailureProcessorId>
   NifiSourceSuccessProcessorId: <NifiSourceSuccessProcessorId>

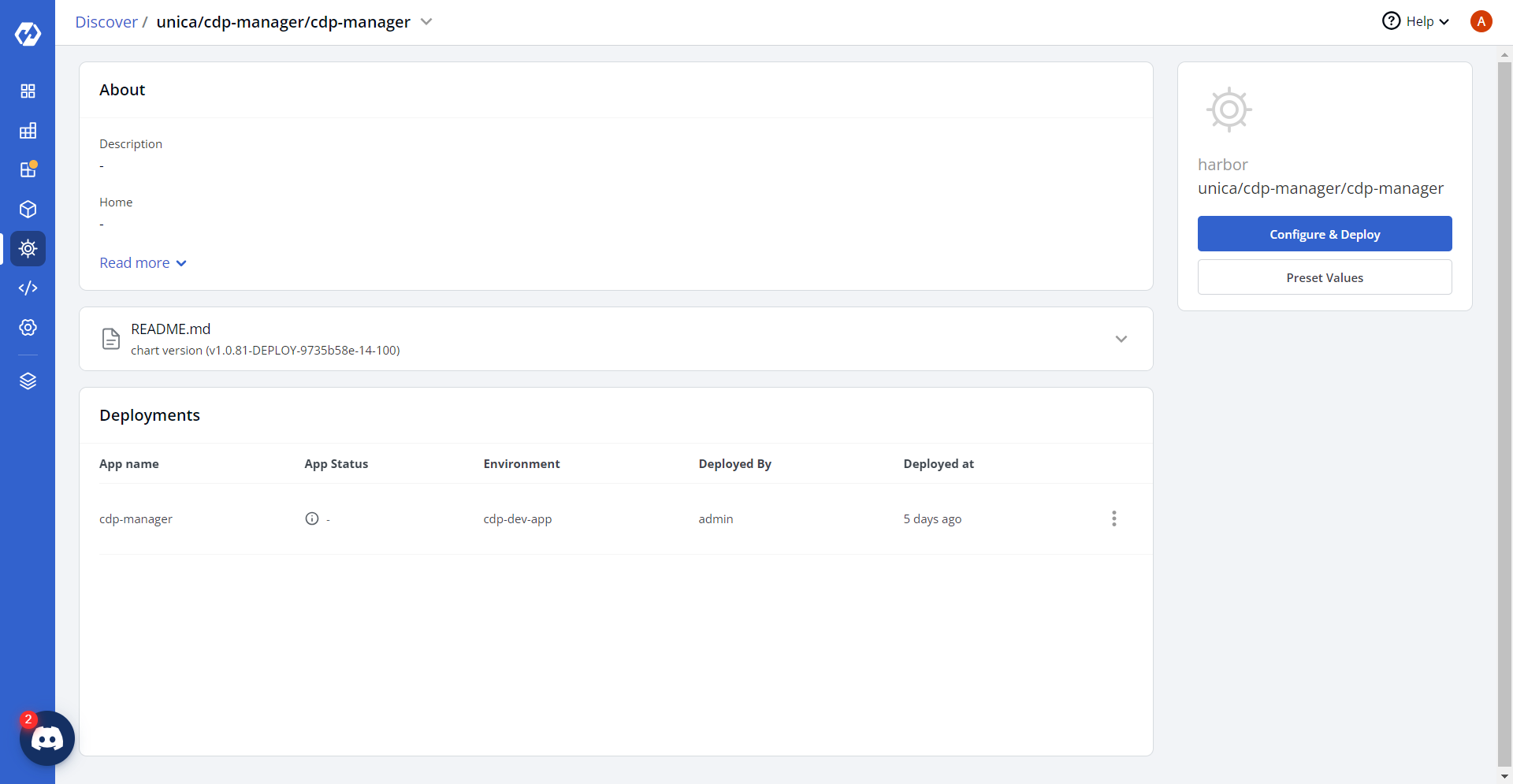

4. On successful deployment, validate the deployment as shown below.
