Fields in the LEI Connection Document - 1

See the following tables for descriptions of the connection document fields.

Connectivity

The Connectivity options are described as follows.

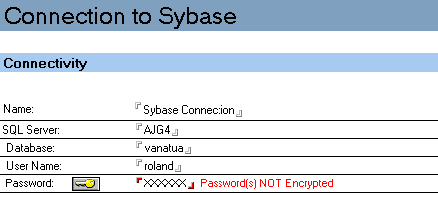

Sybase connection document options bmp


Field	Description
Name	Specifies a unique name that identifies this connection. The maximum number of characters allowed is 255.
SQL Server	Specifies the name of the Sybase SQL Server where the database is located.
Database	Specifies the name of the Sybase SQL Server database.
User Name	Specifies the user name required to log in to the Sybase SQL Server database.
Password	Specifies the password associated with the preceding user name. Password encryption is described in the "Introduction to Lotus® Connectors" chapter.

Data Transfer Options

When you select the Data Transformation tab, the following options appear. These settings have no effect on Advanced RealTime activities.


Field	Description
Cursor Options:	Select "Disable Cursors" to disable use of Sybase cursors. These cursors lock the table when producing a writeback result set (such as through replication). When modifying the table outside the cursor, such as through an insert or timestamp replication update, the operation can deadlock against the cursor. If this behavior occurs, simulate cursors through keyed operations by selecting this option.
Cursor Options:	Select "Capture Procedure Status" to interpret the status code separately, not as a result set, as an error indicator (non-zero is error, and zero is success). A Sybase stored procedure can generate a result set or return a status code. When a non-zero code is returned, this may signal an error. The default behavior is to interpret the status as a 1-row, 1-column result set.

Data Creation Options


Field	Description
Truncate Text/Image to Char/Binary	When a Sybase table is created, Text and Binary columns longer than 254 characters are created as Sybase Text or Image columns. The long Sybase data types Text and Image are inefficient and should only be used when necessary. You can use these options to change Text and Image data types to Char and Binary types when the database is a destination database and a table is being created. Never Truncate: Prevents truncation of Text and Image data types. Less than 64K: Truncates all LEI Text and Binary data types that are less than 64K in length, but does not truncate lengths of 64K or greater. Always Truncate: Truncates all LEI Text and Binary data types to Sybase Char and Binary data types.

Logging Options

When you select the Logging Options tab, the following options appear. The Logging Options section provides a feature for including SQL statements in the activity log. These settings have no effect on Advanced RealTime activities.


Field	Description
Output SQL Statements to Log	Select this option to include in the activity log all SQL statements generated during processing of the activity. Note: Selecting this option slows down performance. Use it only for troubleshooting.

Selection Type

Regardless of which Options tab you select, the following option is available.


Field	Description
Selection Type	Enables you to specify the metadata type for a connection. Select Table to connect to a Sybase table. Select View to connect to a Sybase view. Select Procedure to connect to a Sybase stored procedure. Spaces in a table or column name are not permitted.

Table Options

These settings display a current list of tables and allow you to specify which tables will be accessed. You can also specify a table name not shown in the list by selecting the Manual button.


Field	Description
Owner	Lists the available owner names for the preceding table, view, or procedure selection type in the specified Database. A selection list displays all Sybase owners. Choose the owner of the table, view, or procedure being connected to from the list (Optional).
Name	Lists the available table, view, or procedure names defined for the specified Owner. A selection list displays all Sybase tables, views, or procedures for the selected Owner. Choose the table, view, or procedure to connect to. If an owner is not specified, all names are listed for the specified Selection Type. Spaces in a table or column name are not permitted.
Column	Lists the columns or parameters (stored procedure) defined for the specified Name. Spaces in a table or column name are not permitted.
Manual	Click this button to enter a table name not shown in the list.
