Sample Pipelines for the DXClient node package file

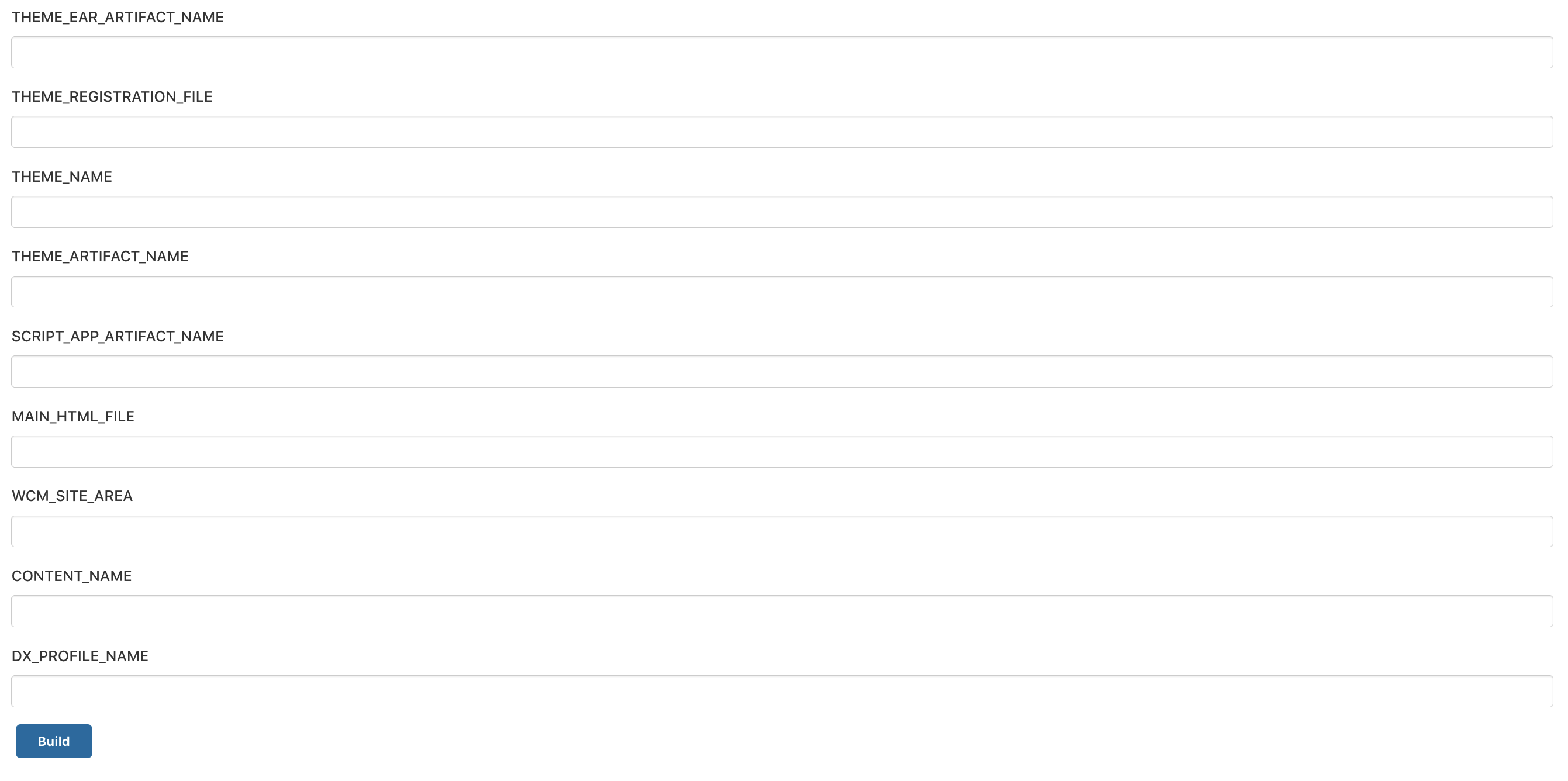

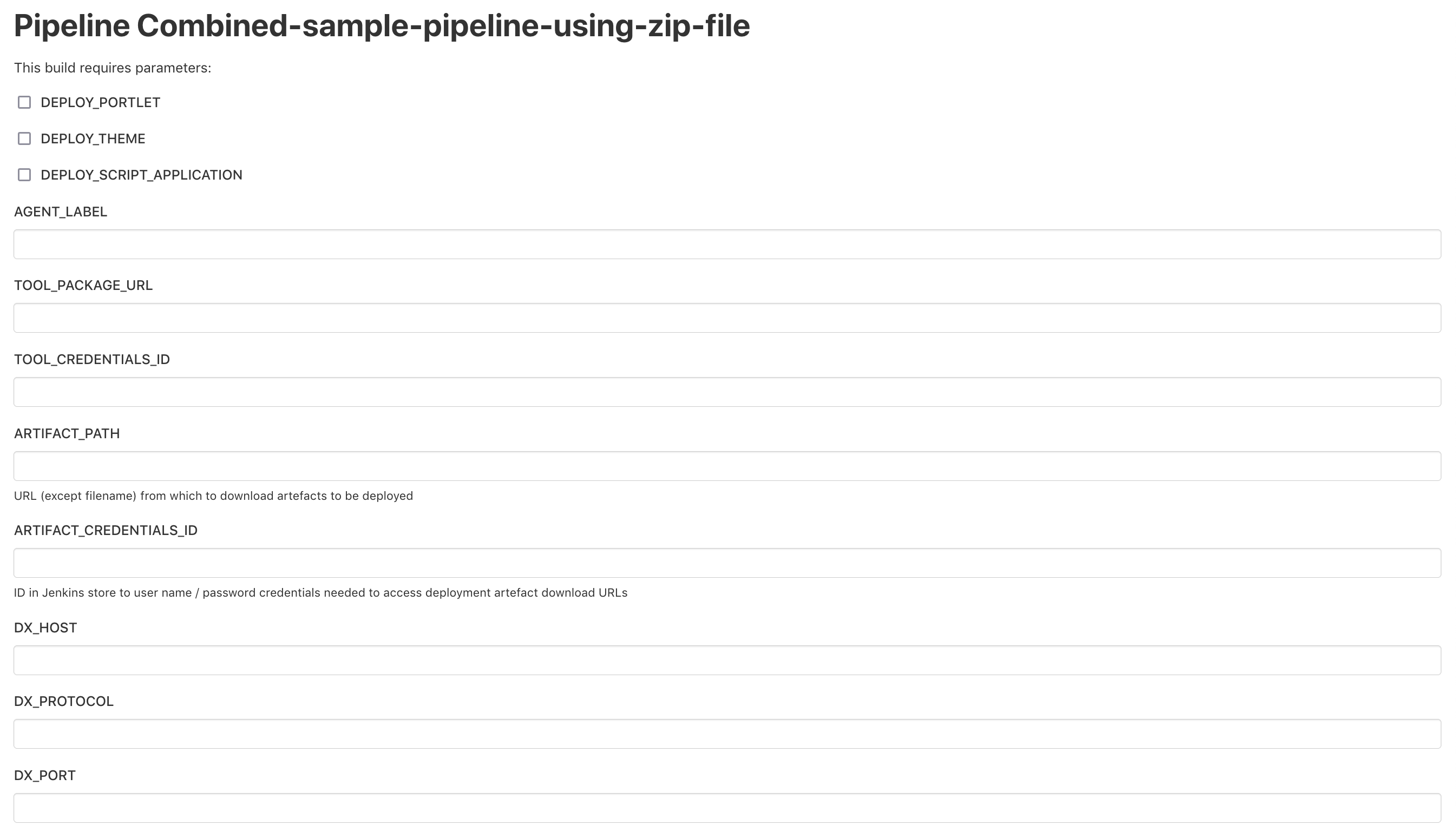

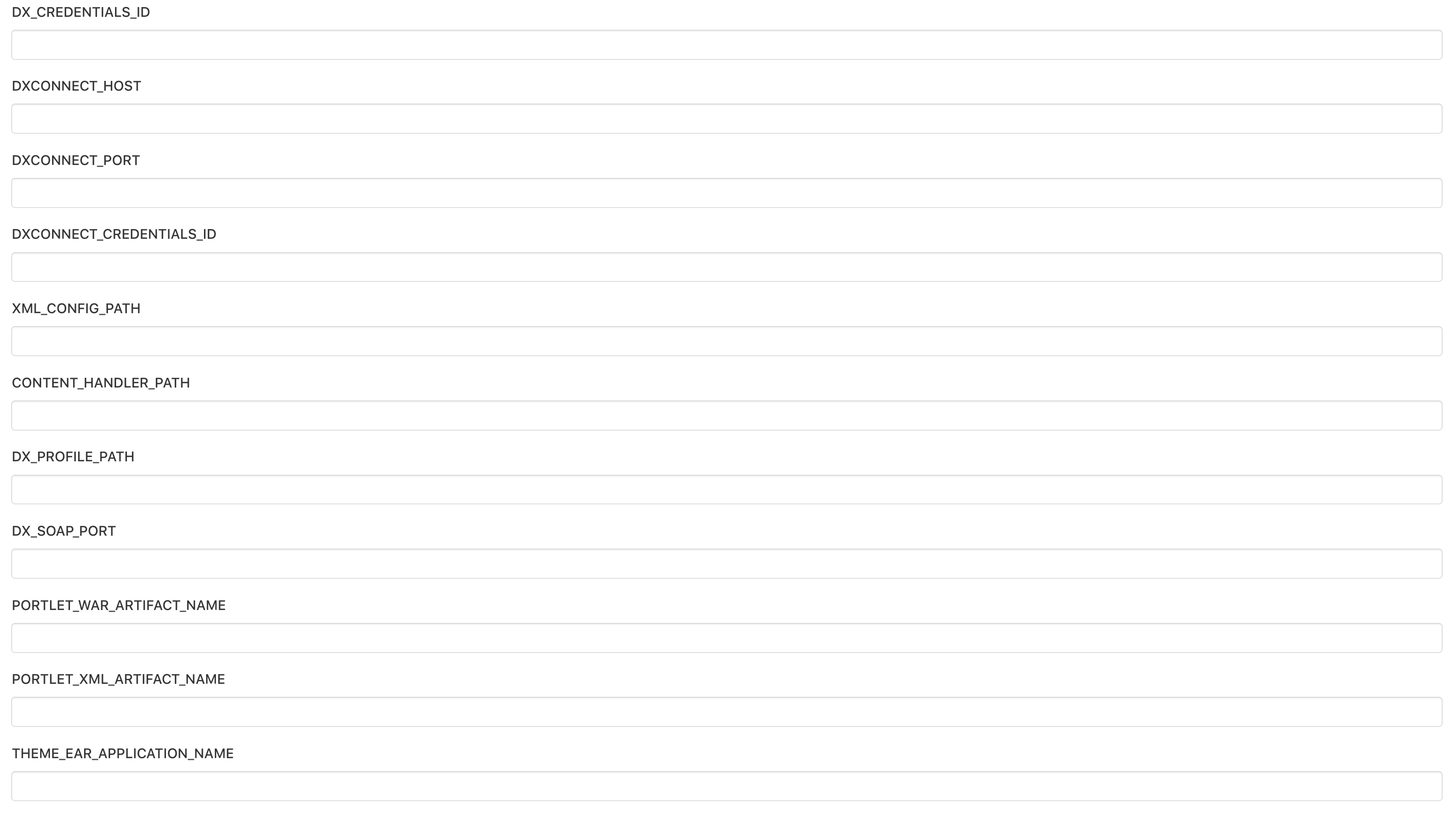

This topic describes how to install the DXClient tool in a pipeline, by providing a few sample pipelines such as pipelines for deploying a portlet, theme, and script application. It is designed to be run from a Jenkins job with the following parameters:
| Parameter | Value | Notes |
|---|---|---|
| DEPLOY_PORTLET | Select this to deploy the portlet | |
| DEPLOY_THEME | Select this to deploy the theme | |
| DEPLOY_SCRIPT_APPLICATION | Select this to deploy the script application | |
| AGENT_LABEL | Jenkins agent label | Determines on which agents the pipeline can run |
| TOOL_PACKAGE_URL | URL to DXClient zip | Fetched via curl |
| TOOL_CREDENTIALS_ID | Credentials ID in Jenkins store | User name / password credentials needed to access tool package URL |
| ARTIFACT_PATH | URL (except filenames) for artifacts to be deployed | Artifacts fetched via curl |
| ARTIFACT_CREDENTIALS_ID | Credentials ID in Jenkins store | User name / password credentials needed to access artifact URLs |
| DX_HOST | Host name or IP address of DX server | Artifacts will be deployed to this server |
| DX_PROTOCOL | Protocol to connect to DX server | http or https |
| DX_PORT | Port to connect to DX serve | Port for the DX main profile |
| DX_CREDENTIALS_ID | Credentials ID in Jenkins store | User name / password credentials needed to access DX server |
| DXCONNECT_HOST | Host name or IP address of the DXConnect servlet (route change only in case of Open Shift Kubernetes Environment. For other case, this parameter should be same as DX_HOST) | Hostname for the DX Configuration Wizard profile |
| DXCONNECT_PORT | Port to connect to DXConnect servlet | Port for the DX config wizard profile |
| DXCONNECT_CREDENTIALS_ID | Credentials ID in Jenkins store | User name / password credentials needed to access DX server config wizard profile |
| XML_CONFIG_PATH | URL path to the config servlet for xmlaccess | Defaults to '/wps/config' |
| CONTENT_HANDLER_PATH | Alternate path for the portal context root or the content handler servlet | Default to /wps/mycontenthandler/ |
| DX_PROFILE_NAME | Profile name of the DX server | |
| DX_PROFILE_PATH | Profile path of the DX server | |
| DX_SOAP_PORT | Soap Port number of the DX server | |
| PORTLET_WAR_ARTIFACT_NAME | Filename of WAR to deploy the portlet | Required for deploy portlet |
| PORTLET_XML_ARTIFACT_NAME | Filename of xmlaccess script used to deploy the portlet | Required for deploy portlet |
| THEME_EAR_APPLICATION_NAME | Application name for the EAR file to deploy the theme | Required for EAR theme deployment |
| THEME_EAR_ARTIFACT_NAME | File name of EAR application to deploy theme | Required for EAR theme deployment |
| THEME_REGISTRATION_FILE | File name of XML file to register the theme | Required for theme registration |
| THEME_NAME | WEBDAV theme name | Required for WEBDAV theme deployment |
| THEME_ARTIFACT_NAME | WEBDAV theme zip file name | Required for WEBDAV theme deployment |
| SCRIPT_APP_ARTIFACT_NAME | Filename of zipped script application to deploy | Required for deploy script application |
| MAIN_HTML_FILE | File name of Main HTML file within the script application | Required for deploy script application |
| WCM_SITE_AREA | SiteArea of the Script Application content | Required for deploy script application |
| CONTENT_NAME | Name of the Script Application instance to be created or updated | Required for deploy script application |
