Sizing guidance for rendering in a medium-sized Kubernetes configuration

This topic provides the details of the environments used for rendering in a medium-sized Kubernetes configuration. You can also find the test results and recommendations for medium configurations on this page.

Methodology

This sizing activity rendered scenarios for the Web Content Manager (WCM), Digital Asset Management (DAM), and HCL Digital Experience (DX) pages and portlets. This activity used a rendering setup enabled in AWS/Native-Kubernetes, where Kubernetes is installed directly in Amazon Elastic Cloud Compute (EC2) instances. A combination run was performed that rendered WCM content, DAM assets, and DX pages and portlets. The load distribution was WCM content (40%), DAM assets (30%), and DX pages and portlets (30%). All systems were pre-populated before performing the rendering tests.

To achieve the 10,000 concurrent users mark, an initial set of runs was done with a lower number of users on a multiple node setup with varying numbers of worker nodes. The tests started with three worker nodes. The number of worker nodes and pods were increased as needed to achieve the desired load with an acceptable error rate (< 0.01%). After establishing the number of nodes, further steps were taken to optimize the limits on the available resources for each pod, as well as the ratios of key pods to each other.

The following table contains the rendering scenario details for a medium configuration.

Concurrent users	WCM pages	DAM content	Pages and portlets content
10,000 users	200	25,000	80

For more information about the setup of test data, refer to the following sections:

• WCM default test data
• DAM default test data
• Pages and portlets default test data

Environment

This section provides details for the Kubernetes cluster, JMeter agents, LDAP, and tuning setups used for this activity.

AWS/Native Kubernetes

The Kubernetes platform ran on an Amazon EC2 instance with the DX images installed and configured. In AWS/Native Kubernetes, the tests were executed in EC2 instances with one c5.xlarge master node and four c5.4xlarge worker nodes. The test started with c5.2xlarge worker nodes and moved to c5.4xlarge worker nodes after analyzing test results. Refer to the following node setup details:

• c5.large master node

  • Node details





  • Processor details



  • Volume details



• c5.4xlarge worker nodes

  • Information





  • Processor details

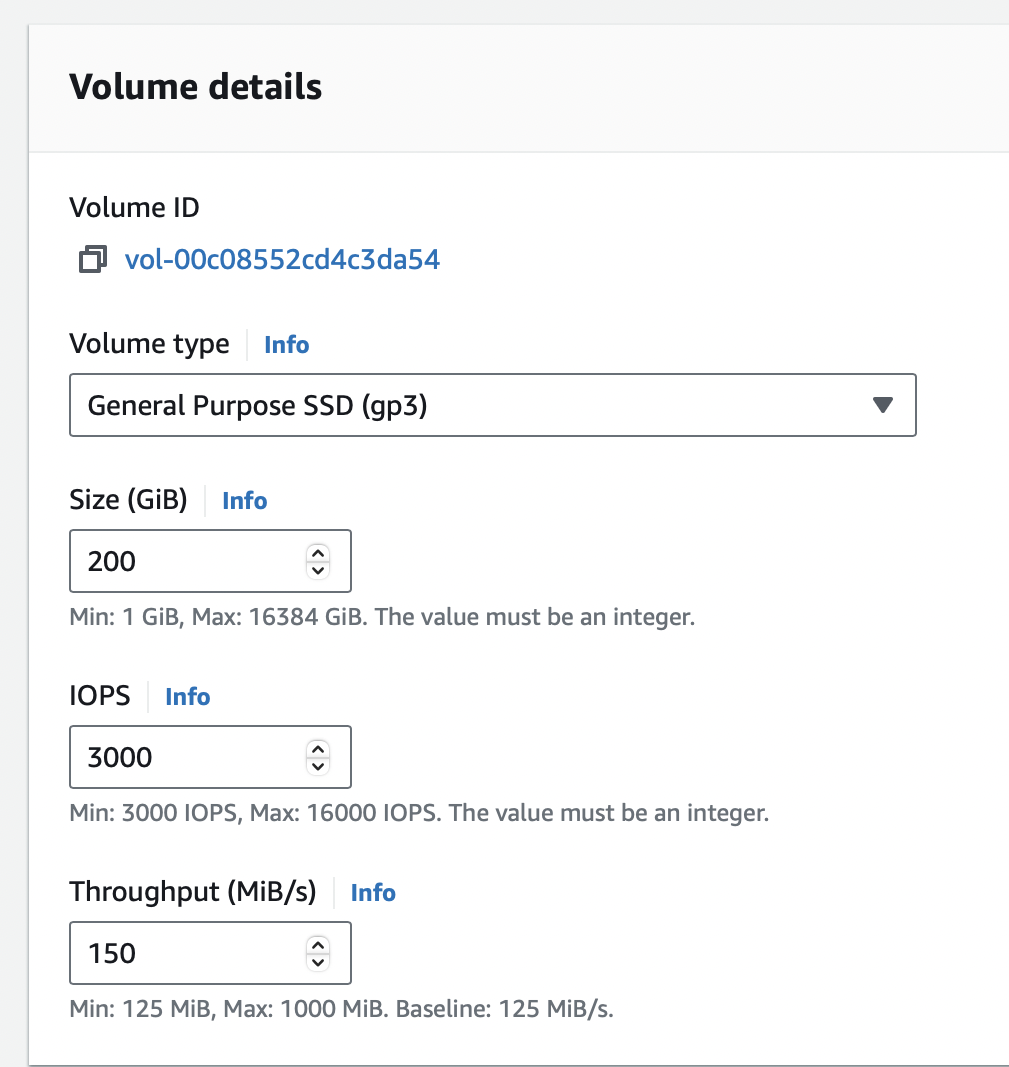

  • Volume details



DB2 instance

The tests used a c5.2xlarge remote DB2 instance for the core database. Refer to the following DB2 setup details:

c5.2xlarge remote DB2 instance

• DB2 details





• Processor details



• Volume details



JMeter agents

To run the tests, a distributed AWS/JMeter agents setup consisting of one primary and eight subordinate c5.2xlarge JMeter instances was used. Refer to the following JMeter setup details:

c5.2xlarge JMeter instance

• Instance details





• Processor details



• Volume details



Note

Ramp-up time is 1.5 seconds per user. The test duration includes the ramp-up time plus one hour at the peak load of concurrent users.

DX Core tuning

The following list contains details about the tuning and enhancements done to the DX Core during testing:

• Defined the initial deployment as a rendering environment to trigger the tuning task for initial tuning. For more information, see Portal server performance tuning tool.

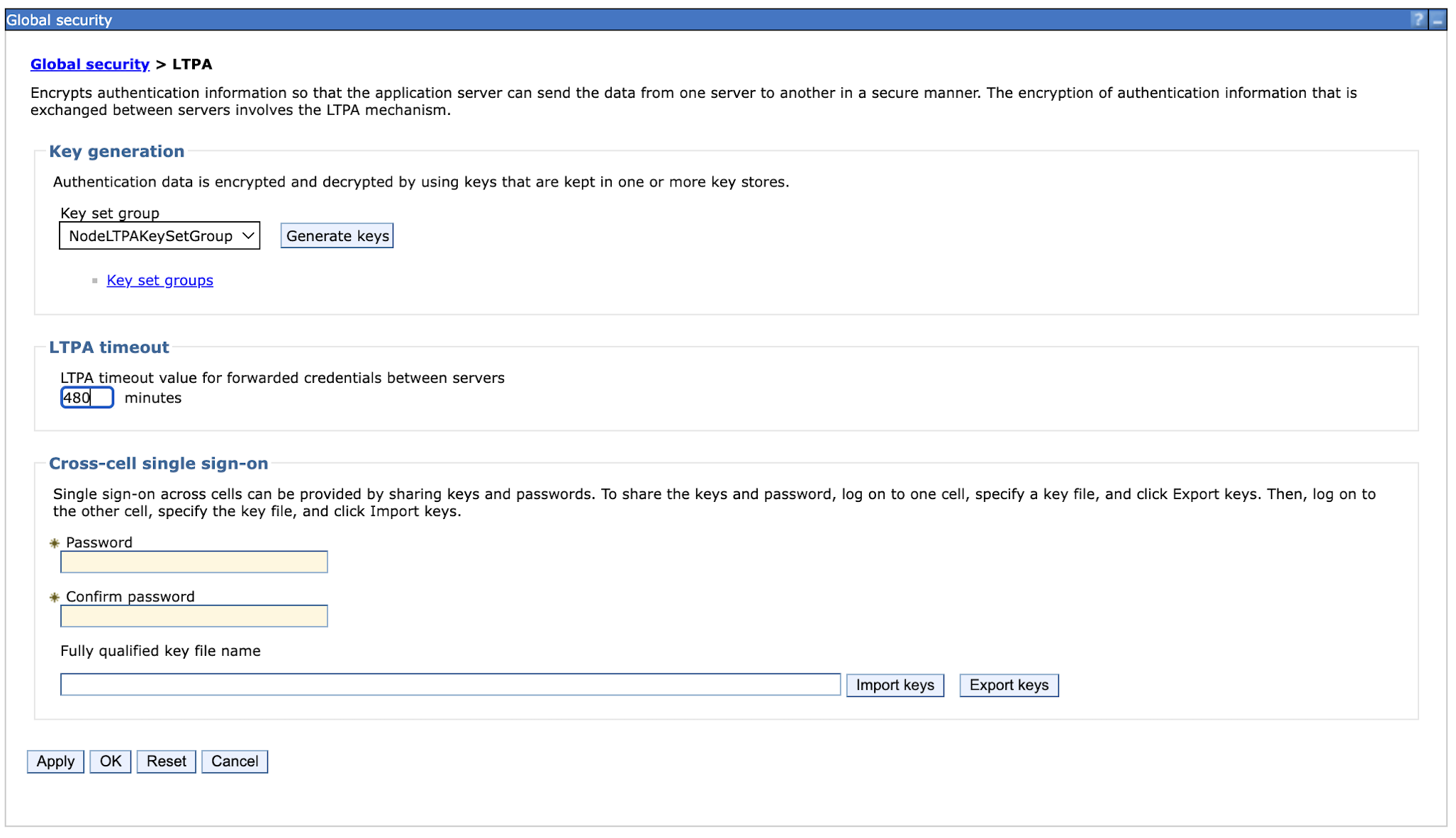

• Increased the LTPA token timeout from 120 minutes to 480 minutes for the rendering tests.

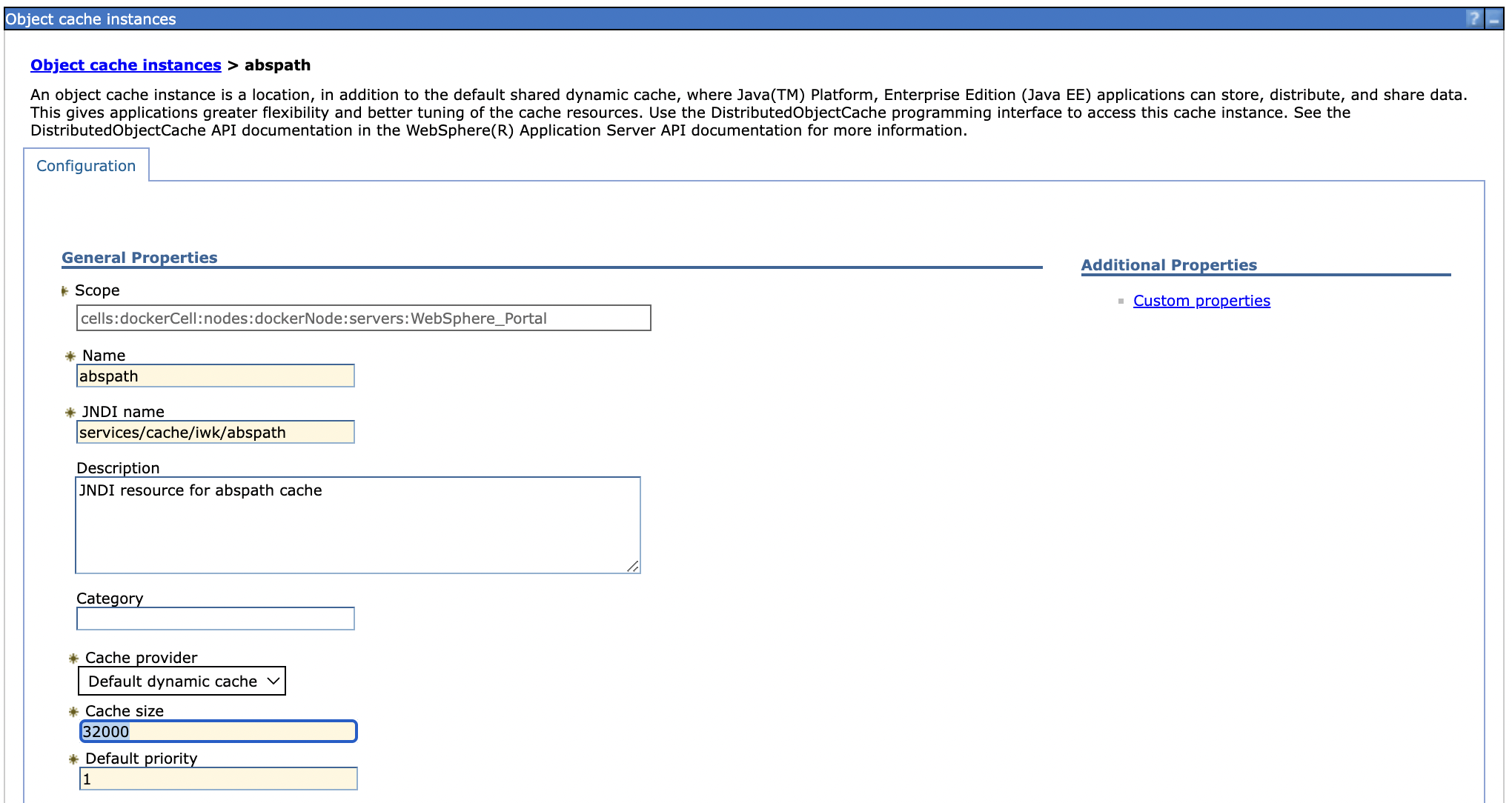

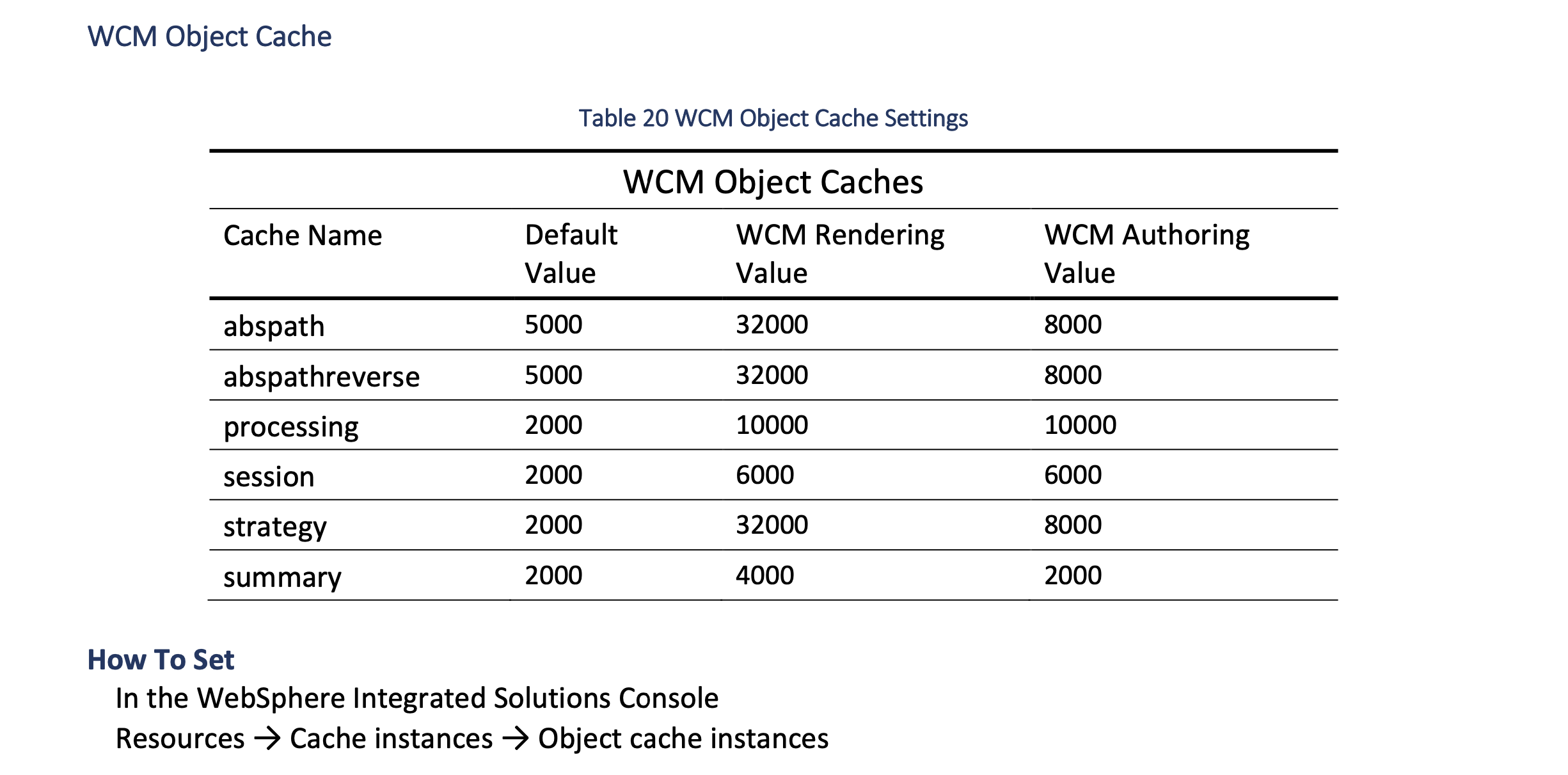

• Updated the WCM object cache for rendering. Refer to the Performance Tuning Guide for Traditional Deployments for more information.





• Updated abspath, abspathreverse, processing, session, strategy, summary values, and WCM rendering values as per Performance Tuning Guide for Traditional Deployments.

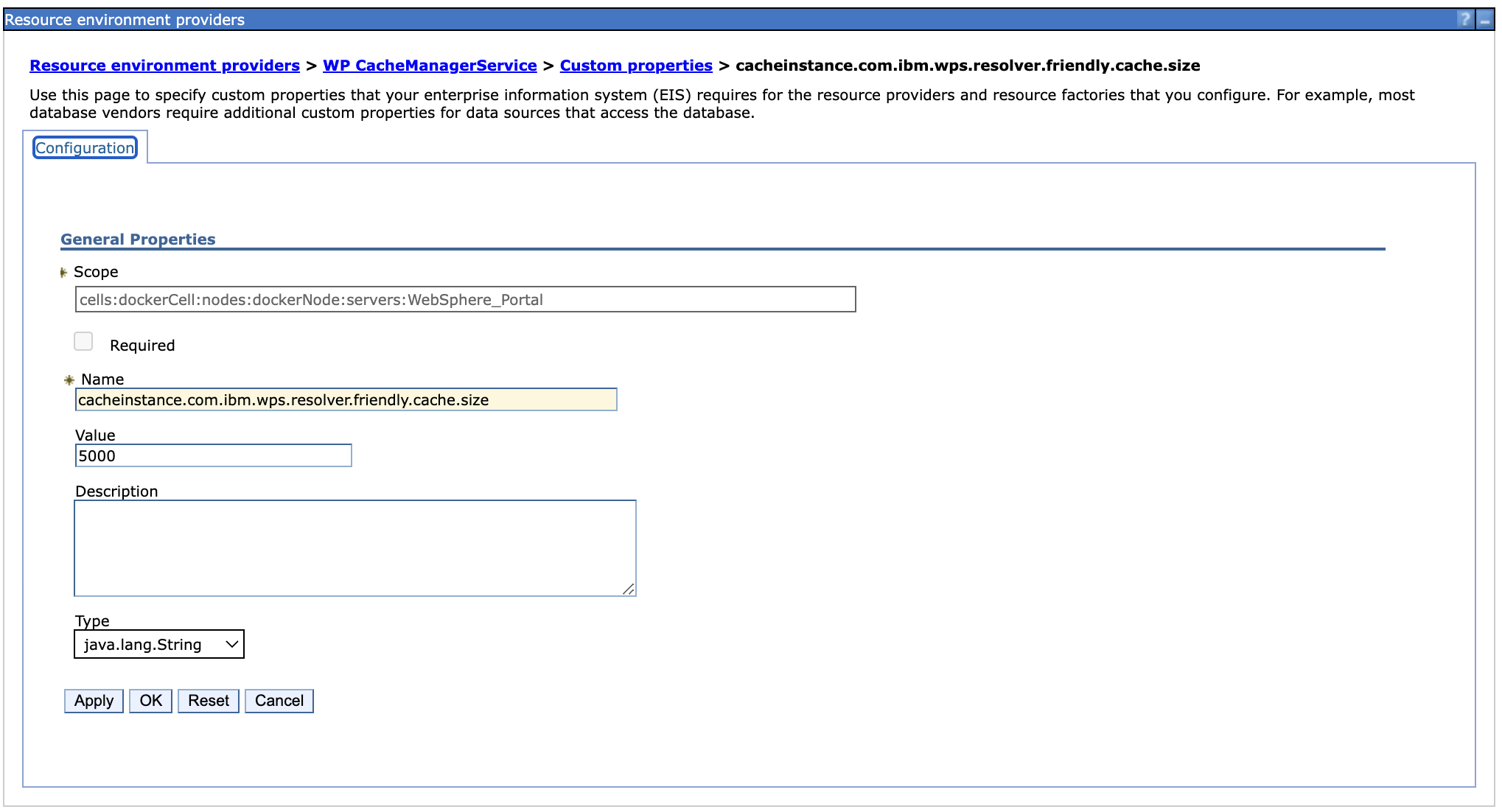

• Added a new custom property under Resource environment providers > WP CacheManagerService > Custom properties > cacheinstance.com.ibm.wps.resolver.friendly.cache.size.

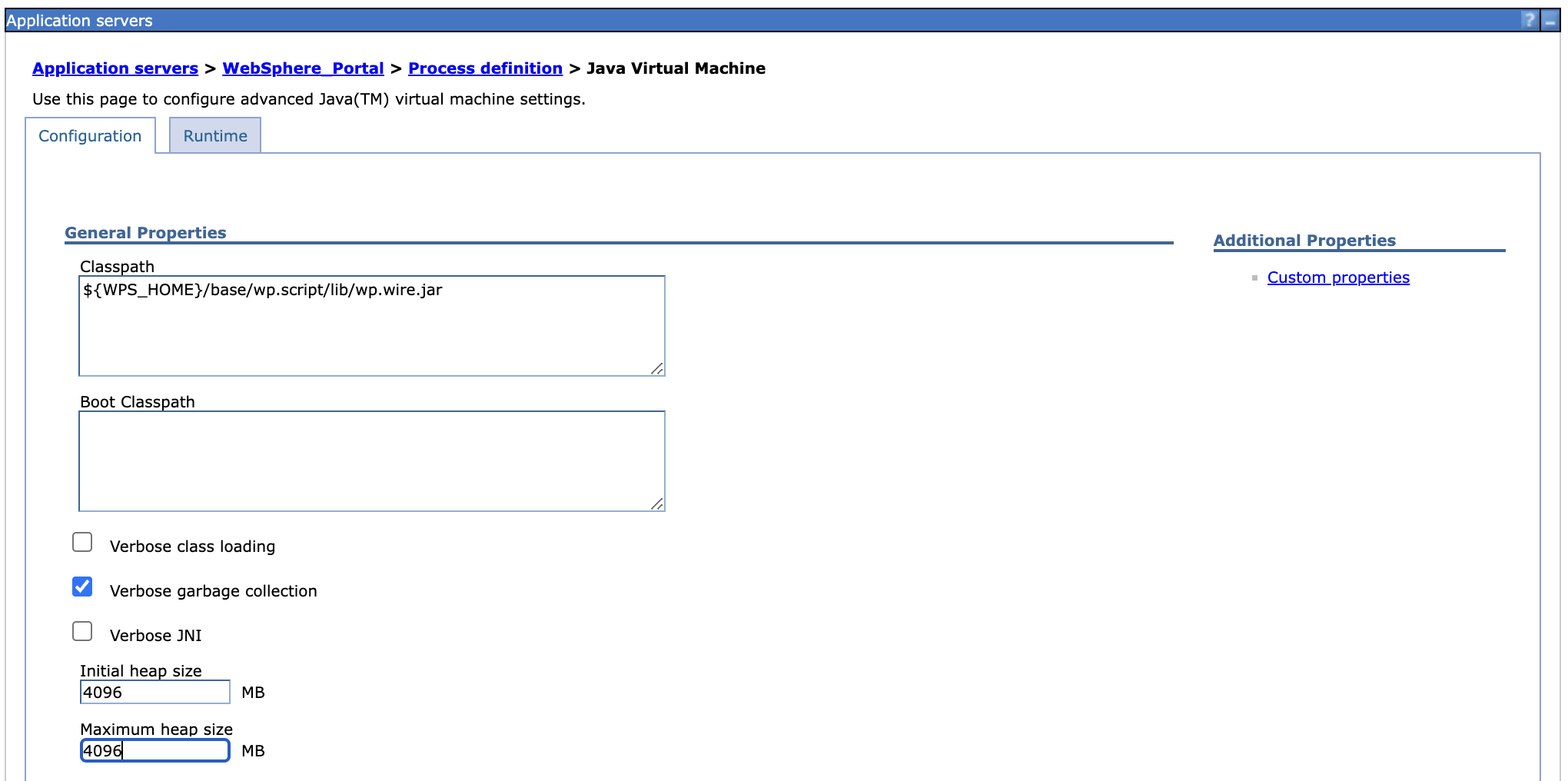

• Adjusted JVM heap size from 3584 to 4096 under Application servers > WebSphere_Portal > Process_definition > Java Virtual Machine.

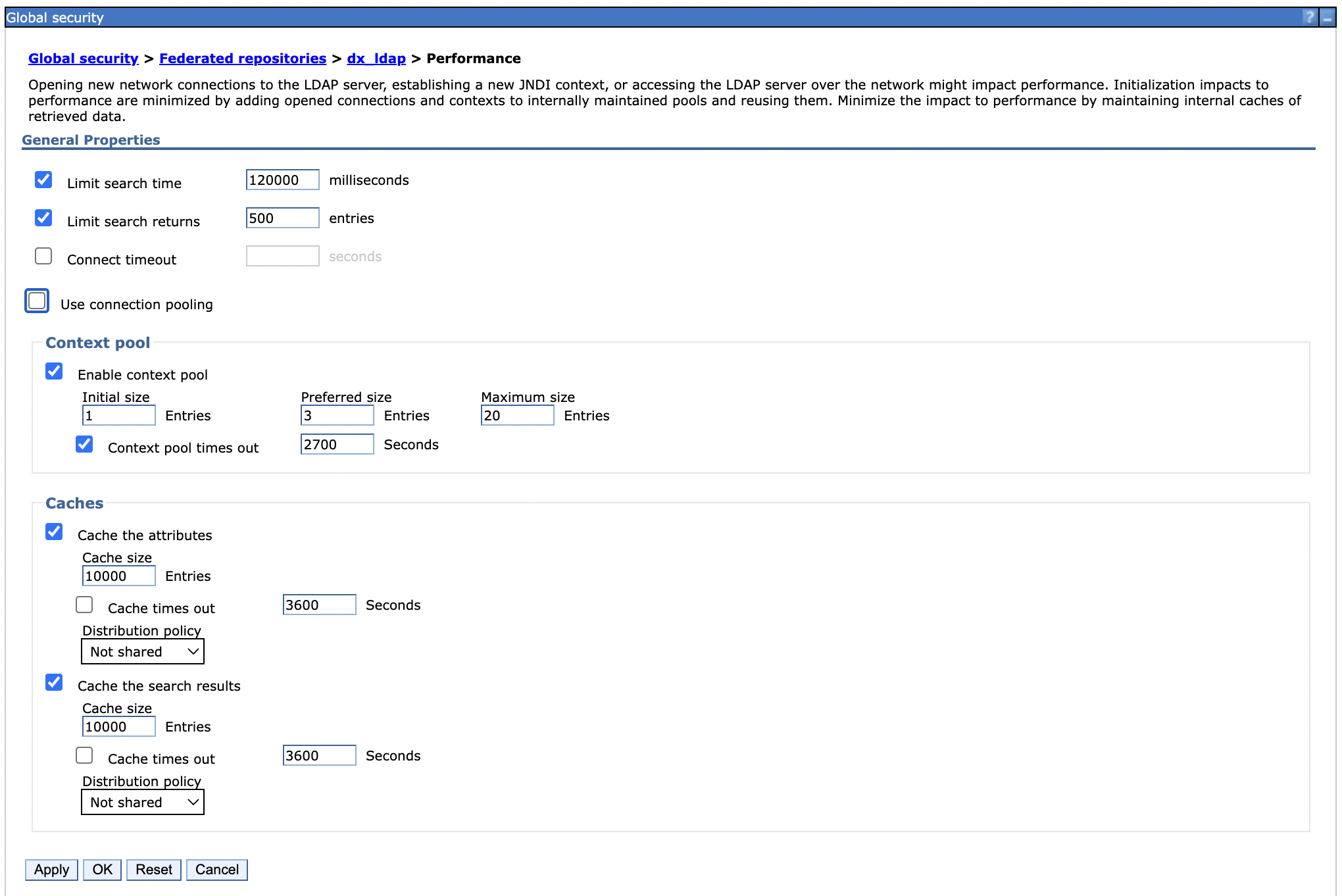

• Set the LDAP user cache attributes and search to 10,000.

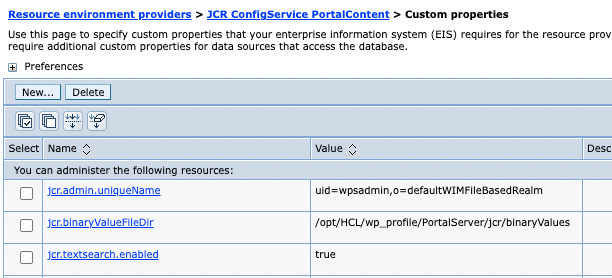

• Disabled jcr.text.search under Resource environment providers > JCR ConfigService Portal Content > Custom properties because there is currently no authoring search functionality in these tests.

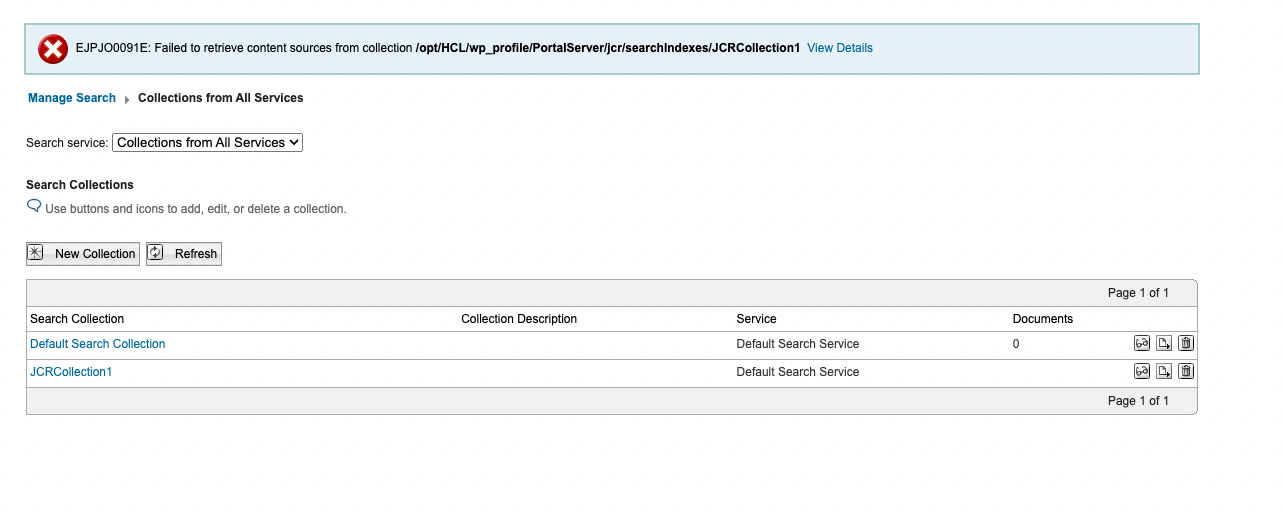

• Deleted JCRCollection1 and Default Search Collection in Portal > Administration > Search > Search collections.



• Logged level changes from info to severe in the WebSphere Application Server (WAS) for both configuration and run time.



• Tuned DB2 by executing DB2 Reorg and Runstats.

Note

• Neither fragment caching nor static resource caching were enabled to trigger actual stress and processing. In a customer scenario, it is recommended to enable both fragment caching and static resource caching.

• For DAM, no tuning details are mentioned in this topic except for the pod resources like CPU and memory limits for all pods related to DAM, such as ring-api, persistence-node, persistence-connection-pool, and core. Since DAM uses Node.js, you can monitor CPU and memory usage using Prometheus and Grafana. Based on your observations, you can modify memory requests and limits in Kubernetes accordingly.

Modifications were also made to the initial Helm chart configuration during the tests. The following table outlines the pod count and limits for each pod. After applying these values, the setup showed significantly improved responsiveness. These changes allowed the system to handle 10,000 concurrent users with a substantial reduction in average response time and a minimal error rate.

		Request	Request	Limit	Limit
Component	No. of pods	cpu (m)	memory (Mi)	cpu (m)	memory (Mi)
contentComposer	1	100	128	100	128
core	7	5600	8192	5600	8192
digitalAssetManagement	4	1000	2048	1000	2048
imageProcessor	1	200	2048	200	2048
openLdap	1	500	2048	500	2048
persistenceNode	2	1200	2048	1200	2048
persistenceConnectionPool	2	700	1024	700	1024
ringApi	2	2000	512	2000	512
runtimeController	1	100	256	100	256
haproxy	2	2000	1024	2000	1024
licenseManager	1	100	300	100	300
Total	24	56000	79532	56000	79532

Note

Values in bold are tuned Helm values while the rest are default minimal values.

For convenience, these values were added to the medium-config-values.yaml file in the hcl-dx-deployment Helm chart. To use these values, complete the following steps:

1. Download the hcl-dx-deployment Helm chart from FlexNet or Harbor.

2. Extract the hcl-dx-deployment-XXX.tgz file.

3. In the extracted folder, navigate to hcl-dx-deployment/value-samples/medium-config-values.yaml and copy the medium-config-values.yaml file.

Results

The initial test runs were conducted on an AWS-distributed Kubernetes setup with one master and three worker nodes. The system successfully handled concurrent user loads of 1,000, 2,500, 4,000, and 5,000 users, with a low error rate (< 0.0001%). At 8,000 users, error rates increased dramatically and the response times went up. For a response time to be considered optimal, it should be under one second.

Subsequent tests were conducted on a setup with four worker nodes and 10,000 concurrent users. The error rates were low (<0.0001%) and response times were satisfactory. Adjustments were made to the number of pods, CPU, and memory of each of the following containers: HAProxy, Core, RingAPI, digitalAssetManagement, persistenceNode, and persistenceConnectionPool. These changes aimed to identify the most beneficial factors for the sizing activity.

For the HAProxy container, increasing the CPU allocation dramatically increased throughput. When the number of HAProxy pods was increased, the throughput decreased.

For the Core pod, increasing the CPU limit gave a boost to performance, but this effect eventually saturated at 5600 millicore. This result indicated that increasing the number of Core pods at this point provided additional benefits.

Conclusion

There are several factors that can affect the performance of DX in Kubernetes. Changes in the number of running nodes, number of pods, and the capacity of individual pods can improve HCL DX performance.

Note

For more information on OS tuning, Web Server tuning, JSF best practices, and other performance tuning guidelines and recommendations for traditional deployments, refer to the Performance Tuning Guide for Traditional Deployments.

Recommendations

• For a medium-sized workload in AWS, start the Kubernetes cluster with one master and four worker nodes.

• To increase the throughput for the HAProxy and RingAPI containers, increase their CPU allocations. Note that increasing the number of pods does not increase throughput.

• To boost performance for the DAM and persistence-node pods, increase the CPU limits first, then increase the number of pod replicas. Increasing the number of pods also increases throughput for DAM.

• To hold more authenticated users for testing purposes, increase the OpenLDAP pod values. Note that the deployment of the OpenLDAP container in a production environment is not supported. For more information, refer to Configure Applications - OpenLDAP configuration.

• To optimize the Core container, increase the CPU allocation until the container saturates. After the optimal CPU level is determined, increase the number of pods to boost performance.

Recommended heap size configuration

To ensure optimal performance and stability of HCL DX on Kubernetes, it is essential for you to configure JVM heap memory and pod resource limits correctly. Refer to the following best practices when tuning memory allocation.

Note

Do not set your JVM heap size larger than the allotted memory for the pod.

• Ensure your minimum heap size (-Xms) is equal to your maximum heap size (-Xmx).

  • Setting the minimum and maximum heap sizes to the same value prevents the JVM from dynamically requesting additional memory (malloc()).
  • This eliminates the overhead of heap expansion and improves performance consistency.

• Ensure the Kubernetes pod resource limits match the JVM heap settings

  • The requested memory (requests.memory) should match the limit (limits.memory) in the pod specification.
  • This ensures that the container is allocated a fixed memory block and prevents unexpected memory reallocation, which could lead to performance degradation or out-of-memory (OOM) errors.

• Determine the final memory requirements based on load testing

  • To determine the optimal memory configuration, you should conduct local testing with your specific portlets, pages, and customizations. You should also perform synthetic load testing using tools like JMeter to simulate realistic usage scenarios.
  • The required memory is highly dependent on Service Level Agreements (SLAs) and transaction rates.
  • A minimum of 3.5GB is recommended, but higher memory allocations may be necessary depending on actual usage patterns.

Related information

• Performance Tuning Guide for Traditional Deployments
