Lesson 5: Configuring the value stream

Before you begin

You must have completed all the previous lessons in this tutorial.

About this task

After you created the value stream in Velocity, you can modify the JSON file to define the queries for the Phases and Stages in the JSON file according to your project requirements.

Refer to the following table for the Phases and Stages associated with Jira, GitHub, and Jenkins in this tutorial.


Plug-in	Value stream phases	Value stream stages
Jira	Planning	Backlog
Jira and GitHub	Development	In progress In Review
Jira and GitHub	Merged	Merged
Jenkins	Build	Build
Jenkins	Deployment	DEV QA PROD

Procedure

Perform the following steps to configure the Phases and Stages in the value stream:

On the Value Streams page, select the value stream that you created in Lesson 4: Creating the value stream.
Click Edit value stream map.

Modify the phases in the JSON file as shown in the following example:


  "phases": [
    {
      "name": "Planning",
      "description": "",
      "stages": [
        {
          "name": "Backlog",
          "query": "(issue.status=\"To Do\")",
          "description": "",
          "targets": [
            "In Progress"
          ],
          "wipLimit": 10,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        }
      ]
    },
    {
      "name": "Development",
      "description": "",
      "stages": [
        {
          "name": "In Progress",
          "query": "(issue.status=\"In Progress\") AND (pr.status!=\"open\")",
          "description": "",
          "targets": [
            "In Review"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        },
        {
          "name": "In Review",
          "query": "(issue.status=\"In Review\") AND (pr.status=\"open\")",
          "description": "",
          "targets": [
            "Merged"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        }
      ]
    },
    {
      "name": "Merged",
      "description": "",
      "stages": [
        {
          "name": "Merged",
          "query": "(issue.status=\"Done\") AND (pr.status=\"closed\") AND build.status!=success AND deployment.env!=DEV",
          "description": "",
          "targets": [
            "Build"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        }
      ]
    },
    {
      "name": "Build",
      "description": "",
      "stages": [
        {
          "name": "Build",
          "query": "(issue.status=\"Done\") AND (pr.status=\"closed\") AND build.status=success AND deployment.env!=DEV",
          "description": "",
          "targets": [
            "DEV"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        }
      ]
    },
    {
      "name": "Deploy",
      "description": "",
      "stages": [
        {
          "name": "DEV",
          "query": "(issue.status=\"Done\") AND (pr.status=\"closed\") AND build.status=success AND deployment.env = 'DEV' AND deployment.env != 'QA'",
          "description": "",
          "targets": [
            "QA"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        },
        {
          "name": "QA",
          "query": "(issue.status=\"Done\") AND (pr.status=\"closed\") AND build.status=success AND deployment.env = 'QA' AND deployment.env != 'PROD'",
          "description": "",
          "targets": [
            "PROD"
          ],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        },
        {
          "name": "PROD",
          "query": "(issue.status=\"Done\") AND (pr.status=\"closed\") AND build.status=success AND deployment.env = 'PROD' AND deployment.status =success",
          "description": "",
          "targets": [],
          "wipLimit": null,
          "showAlerts": true,
          "showSpeed": true,
          "gates": null
        }
      ]
    }
  ],

Click Save.

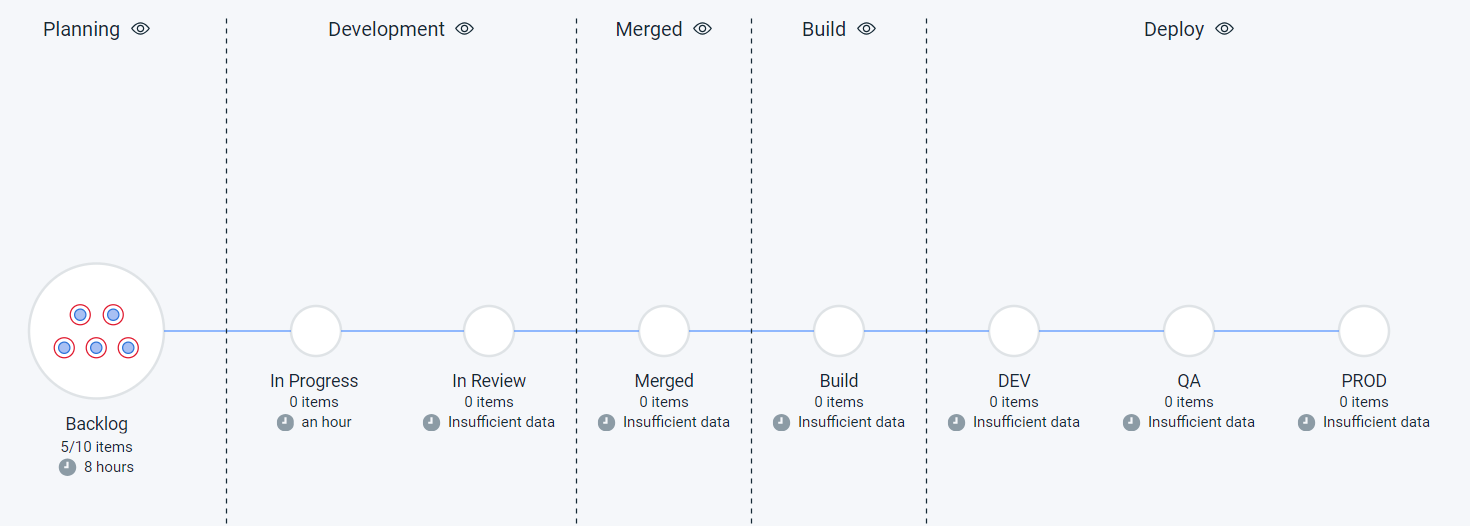

The value stream page displays the Phases and Stages for the integration.

Perform the following steps to update the metrics definition for the value stream:
1. On the Value Streams page, select the value stream that you created in Lesson 4: Creating the value stream.
2. Click Edit value stream map.
3. Update the metrics in the JSON file as shown in the following example:
```
  "leadTimeChange": {
    "start": null,
    "end": null
  },
  "leadTime": {
    "start": "Backlog",
    "end": "Merged"
  },
  "cycleTime": {
    "start": "In Progress",
    "end": "Merged"
  },
  "devCycleTime": {
    "start": "In Progress",
    "end": "In Review"
  },
```

Perform the following steps to add the link rules to link the Jira issue with the associated pull request in GitHub:

On the Value Streams page, select the value stream that you created in Lesson 4: Creating the value stream.
Click Edit value stream map.

Modify the linkRules in the JSON file as shown in the following example:

 "linkRules": [
    {
      "fromIntegrationName": "TUTORIAL_GITHUB",
      "toIntegrationName": "TUTORIAL_JIRA",
      "fromField": "pr.name",
      "toField": "issue.id",
      "pattern": "([A-Z]+-[0-9]+)"
    }
  ],

Property	Description
toIntegrationName	Name of the integration to which you are linking.
toField	Field in the `toIntegrationName` integration that you are linking.
pattern	Regular expression that determines if the linking fields match. For example, `[[A-Z]+-[0-9]+]`.
fromIntegrationName	Name of the integration from which you are linking.
fromField	Field in the `fromIntegrationName` integration that you are linking.

In this lesson, you have learned to configure the value stream for Jira, GitHub, and Jenkins.

What to do next

You can learn about setting up build and deployment jobs in Jenkins. See Lesson 6: Setting up the build and deployment jobs in Jenkins.
