Installing MDT Bundle Creators

From the Bundle and Media Manager dashboard, you can install MDT Bundle Creators on selected targets.

In the Bundle and Media Manager dashboard, select the MDT Bundle Creators and Windows Media tab and click Install MDT Bundle Creator to start the wizard.

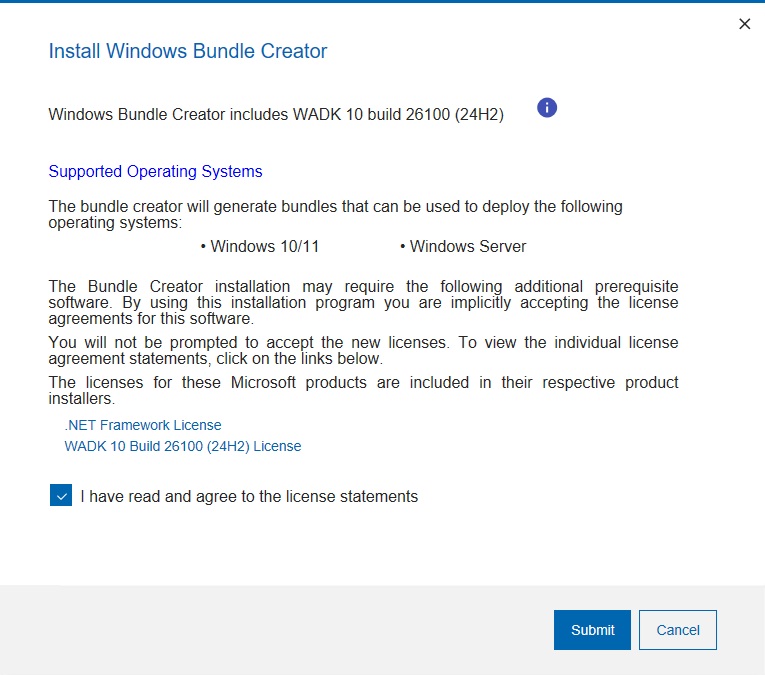

Install Bundle Creator Wizard

Here you can see the combination of tools that will be installed and the list of operating systems that can be deployed. Choose the combination of tools that best matches your deployment needs. For each choice, the list of operating systems that can be deployed is automatically displayed.

Depending on the target you select for the installation, additional prerequisite software can be automatically downloaded and installed. You are asked to agree to the license statements regarding this software. Click Submit to take action, and select one or more targets where the Bundle Creator will be downloaded.
Important:
  • The computers on which you install the MDT Bundle Creators must have direct internet access for the prerequisites to be correctly downloaded and installed through the wizard.
  • You don't need to create an MDT Bundle for Windows 10/11 in-place upgrades. For more information, see Installing Windows 10/11 or Windows Server using in-place upgrade.
  • If you select to install the MDT Bundle Creator on a target machine that already has deprecated deployment tools, the existing tools are not replaced. To ensure that the tools you select are downloaded on the target, check it beforehand and manually remove the preexisting tools if necessary. The deprecated tool combinations are listed in Deprecated Component Combinations for MDT Bundle Creator.

MDT Bundle Creators and valid component combinations

The following table lists the valid combinations for components using the MDT Bundle Creator Tool 3.11.81. For each combination, here is a corresponding list of operating systems that you can deploy.

Table 1. Valid component combinations for capture, reimage, and bare metal deployments

This table lists the component combination supported for capture, reimage, and bare metal deployment scenarios on Windows targets
Operating System MDT Bundle Creator 1 Microsoft Deployment Toolkit WIM Toolkit
Windows 11 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows 102 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows Server 2022 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows Server 2019 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows Server 2016 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows Server 2012 R2 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Windows Server 2012 3.11.8 MDT build 8456 WADK for Windows 11 22H2 (build 22621)
Notes
  1. MDT Bundle Creator 3.11.8 supersedes all earlier versions.
  2. For windows 10 x86, the last supported WADK is WADK 10 2004, refer to https://learn.microsoft.com/en-us/windows-hardware/get-started/adk-install.

For the list of deprecated component combinations for MDT Bundle Creator, see Deprecated Component Combinations for MDT Bundle Creator.

For a complete list of WADK(WinPE) versions and Operating System support, refer to the Microsoft Technet website.

Note: WADK 10.1.25398.1 (September 2023) is not supported for MDT Bundle creation.
