OpenTelemetry Setup

The OpenTelemetry Collector receives telemetry data from Unica services (via JMX exporters or application agents) and forwards it to Prometheus, Tempo, or Loki as per the setup configured. The steps for OpenTelemetry setup are as follows:

Procedure

Deploy the OpenTelemetry Collector using Helm or manifests.
Configure the collector to receive OTLP data and export metrics to Prometheus.
Validate that Unica’s exporters or agents are sending telemetry data.

Installing OpenTelemetry Collector

Procedure

Create a namespace for monitoring:

kubectl create namespace <monitoring_namespace>

Apply the OpenTelemetry Collector configuration:

kubectl apply -f otel.yaml -n <monitoring_namespace>

A sample otel.yaml file is shown below:

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-collector-conf
  labels:
    app: opentelemetry
    component: otel-collector-conf
data:
  otel-collector-config: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
            #max_recv_msg_size_mib: 887772160
            # Default is 4 MiB; increase as needed ${env:MY_POD_IP}
          http:
            endpoint: 0.0.0.0:4318
      jaeger:
        protocols:
          grpc:
            endpoint: ${env:MY_POD_IP}:14250
          thrift_http:
            endpoint: ${env:MY_POD_IP}:14268
          thrift_compact:
            endpoint: ${env:MY_POD_IP}:6831

      prometheus:
        config:
          scrape_configs:
          - job_name: 'otel-node-exporter'
            scrape_interval: 10s
            static_configs:
            - targets: ['loki-prometheus-node-exporter. <monitoring_namespace>.svc.cluster.local:9100']
          - job_name: 'otel-kube-state-metrics'
            scrape_interval: 10s
            static_configs:
            - targets: ['loki-kube-state-metrics.<monitoring_namespace>.svc.cluster.local:8080']
          - job_name: 'prometheus-pushgateway'
            scrape_interval: 10s
            static_configs:
            - targets:
              - loki-prometheus-pushgateway.<monitoring_namespace>.svc.cluster.local:9091
    processors:
      attributes:
        actions:
          - key: user.id
            action: insert
          - key: operation
            action: insert
      batch:
      memory_limiter:
        # 80% of maximum memory up to 2G
        limit_mib: 1500
        # 25% of limit up to 2G
        spike_limit_mib: 512
        check_interval: 10s
    extensions:
      zpages: {}
    exporters:
      otlp:
        endpoint: "http://otel-collector.<monitoring_namespace>.svc.cluster.local:4317"
        tls:
          insecure: true
      otlphttp:
        endpoint: "http://tempo.<monitoring_namespace>.svc.cluster.local:4318"
        tls:
          insecure: true
        timeout: 10s
        compression: gzip
        sending_queue:
          enabled: true
        retry_on_failure:
          enabled: true
      otlphttp/logs:
        endpoint: "http://loki.<monitoring_namespace>.svc.cluster.local:3100/otlp" #loki
        tls:
          insecure: true
      prometheusremotewrite:
        endpoint: http://loki-prometheus-server.<monitoring_namespace>.svc.cluster.local:9090/api/v1/write
    service:
      extensions: [zpages]
      pipelines:
        traces/1:
          receivers: [otlp,jaeger]
          processors: [memory_limiter, batch]
          exporters: [otlphttp,otlp/2]
        metrics:
          receivers: [otlp]
          processors: [batch]
          exporters: [prometheusremotewrite]
        logs:
          receivers: [otlp]
          processors: [batch, memory_limiter]
          exporters: [otlphttp/logs]
      telemetry:
        metrics:
          address: ${env:MY_POD_IP}:8888
---
apiVersion: v1
kind: Service
metadata:
  name: otel-collector
  labels:
    app: opentelemetry
    component: otel-collector
spec:
  ports:
  - name: otlp-grpc # Default endpoint for OpenTelemetry gRPC receiver.
    port: 4317
    protocol: TCP
    targetPort: 4317
  - name: otlp-http # Default endpoint for OpenTelemetry HTTP receiver.
    port: 4318
    protocol: TCP
    targetPort: 4318
  - name: metrics # Default endpoint for querying metrics.
    port: 8888
  selector:
    component: otel-collector
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: otel-collector
  labels:
    app: opentelemetry
    component: otel-collector
spec:
  selector:
    matchLabels:
      app: opentelemetry
      component: otel-collector
  minReadySeconds: 5
  progressDeadlineSeconds: 120
  replicas: 1 #TODO - adjust this to your own requirements
  template:
    metadata:
      labels:
        app: opentelemetry
        component: otel-collector
    spec:
      containers:
      - command:
          - "/otelcol"
          - "--config=/conf/otel-collector-config.yaml"
        image: otel/opentelemetry-collector:latest
        name: otel-collector
        resources:
          limits:
            cpu: 1
            memory: 2Gi
          requests:
            cpu: 200m
            memory: 400Mi
        ports:
        - containerPort: 55679 # Default endpoint for ZPages.
        - containerPort: 4317 # Default endpoint for OpenTelemetry receiver.
        - containerPort: 14250 # Default endpoint for Jaeger gRPC receiver.
        - containerPort: 14268 # Default endpoint for Jaeger HTTP receiver.
        - containerPort: 9411 # Default endpoint for Zipkin receiver.
        - containerPort: 8888  # Default endpoint for querying metrics.
        env:
          - name: MY_POD_IP
            valueFrom:
              fieldRef:
                apiVersion: v1
                fieldPath: status.podIP
          - name: GOMEMLIMIT
            value: 1600MiB
        volumeMounts:
        - name: otel-collector-config-vol
          mountPath: /conf
#        - name: otel-collector-secrets
#          mountPath: /secrets
      volumes:
        - configMap:
            name: otel-collector-conf
            items:
              - key: otel-collector-config
                path: otel-collector-config.yaml
          name: otel-collector-config-vol

You can integrate the OpenTelemetry Java Agent (opentelemetry-javaagent-2.11.0.jar, Apache License 2.0) with each Unica product container to export telemetry data.

Configuration Approach

Procedure

Update the following helm chart parameters. These parameters allow configuration of OTel-specific environment variables and endpoints for each product.
- PRODUCT_OPTS_PLATFORM
- PRODUCT_OPTS_CAMPAIGN
Alternatively, maintain the setenv.sh file on a Persistent Volume (PV). You can copy it at runtime during pod startup using the custom COMMANDS and SCRIPTS placeholders provided in the Helm charts for each product.

Once the pod starts, validate the OTel configuration using the following commands:

kubectl exec -it <platform-pod-name> -- bash

cd /docker/unica/Tomcat_platform/apache/bin

vi setenv.sh

Example configuration:

export JAVA_HOME=/docker/unica/jre
export PATH=/docker/unica/jre/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/docker/unica

export OTEL_EXPORTER_OTLP_LOGS_ENDPOINT=http://otel-collector.monitoring.svc.cluster.local:4318/v1/logs
export OTEL_EXPORTER_OTLP_METRICS_ENDPOINT=http://otel-collector.monitoring.svc.cluster.local:4318
export OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=http://otel-collector.monitoring.svc.cluster.local:4318/v1/traces

export JAVA_OPTS="-javaagent:/docker/unica/opentelemetry-javaagent-2.11.0.jar \
-Dotel.metrics.exporter.prometheus.port=80 \
-Dotel.exporter.otlp.protocol=grpc \
-Dotel.exporter.otlp.protocol=http \
-Dotel.javaagent.debug=true \
-Dotel.exporter.otlp.grpc.max_reconnect_delay=10s \
-Dotel.exporter.otlp.grpc.max_receive_message_size=16777216 \
-Dotel.exporter.otlp.grpc.max_send_message_size=16777216 \
-Dotel.exporter.otlp.endpoint=http://otel-collector.monitoring.svc.cluster.local:4317 \
-Dotel.metrics.exporter.prometheus.host=hcl-prometheus-server.monitoring.svc.cluster.local \
-Xms1024m -Xmx2048m \
-DUNICA_PLATFORM_CACHE_ENABLED=false \
-Dfile.encoding=UTF-8 \
-DENABLE_NON_PROD_MODE=true \
-Dclient.encoding.override=UTF-8 \
-Dplatform.home=/docker/unica/Platform"

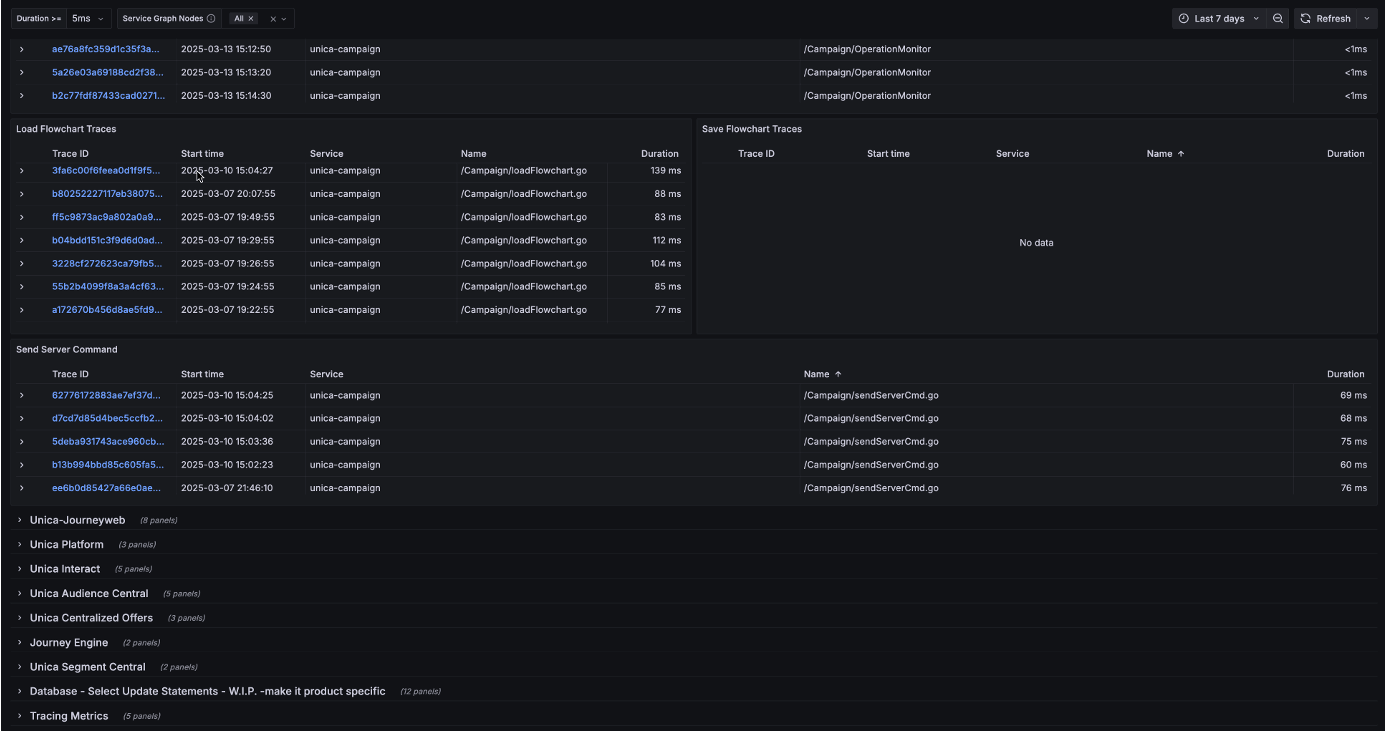

Otel Dashboard
