ON-Bar catalog map

This topic contains an example mapping between tables.

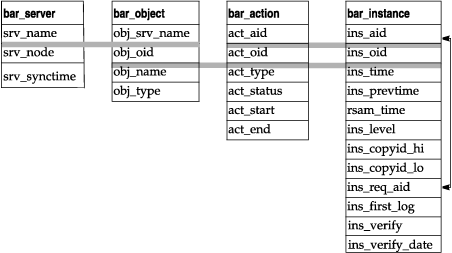

The following figure maps the tables on HCL Informix®. In this figure, the gray lines show the relations between tables. The arrows show that the ins_req_aid value must be a valid ins_aid value.

This figure shows how columns in one table correspond to columns in another table. — Figure 1. catalog map on Informix®
