Used in the context of HCL®Informix® database
servers, the term heterogeneous environment is a group of database
servers in which at least one of the database servers is a different
database server. Heterogeneous commit ensures the all-or-nothing basis
of distributed transactions in a heterogeneous environment.
Unlike the two-phase commit protocol, the heterogeneous commit
protocol supports the participation of a participant that is not Informix®. The
other participant, called a gateway participant, must communicate
with the coordinator through the HCL®Informix® gateway.
The database server uses heterogeneous commit protocol when the
following criteria are met:
Heterogeneous commit is enabled. (That is, the HETERO_COMMIT configuration
parameter is set to 1.)
The coordinator of the commit is a version
7.2 or later HCL Informix®.
The gateway participant communicates with the HCL®Informix® database
server through the HCL®Informix® gateway.
At most, one gateway participant performs an update within a single
transaction.

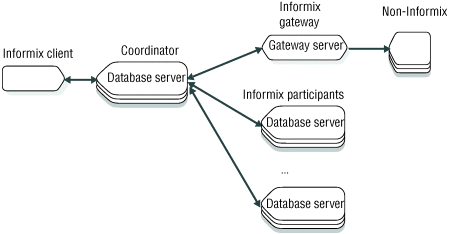

The following figure illustrates this scenario.Figure 1. Configuration that requires heterogeneous
commit for distributed transactions
