Adding a registered CentraSite WSDL as a synchronization source

The integration between HCL OneTest™ API and CentraSite relies on the testing of the services (WSDLs) that are in the CentraSite registry that uses HCL OneTest™ API. The registered WSDLs can be imported into HCL OneTest™ API from CentraSite (by using UDDI), then tests and test suites can be created and executed.

Note: Only SOAP 1.1 and SOAP 1.2 bindings are supported. Any schema definitions that are not referenced by an operation that uses at least one of these bindings is ignored.

About this task

Resources that you can generate from the WSDL include tests, test suites, and stubs that are used for certification.

Procedure

Launch the Create a new Synchronization Source wizard in one of the following ways:
- Drag a WSDL file from the file system into the Logical view of the Architecture School perspective.
- Click Web > WSDL on the menu bar in the Logical or Synchronization view.
- Click the Create Synchronization Source icon () and select WSDL from the Type list in the Create a new Synchronization Source wizard.
Complete the information on the first page of the Create a new Synchronization Source wizard that is unique to the CentraSite WSDL source.

That information consists of the following fields:
1. In the Configuration section of the wizard, click New.

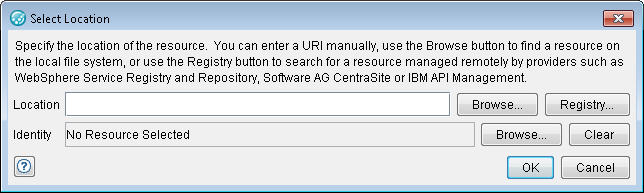

2. In the Select Location dialog, click Registry.

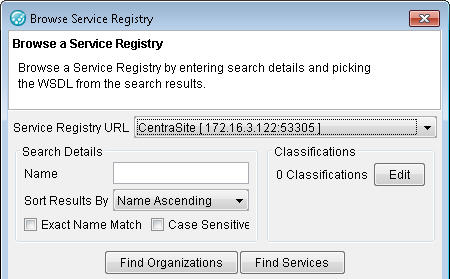

3. In the Browse Service Registry dialog, ensure that the correct CentraSite server is selected under Service Registry URL.
4. If you want to filter your search of the registry, enter the search criteria and conditions by using the name, sort, and match options, then click Find Organizations or Find Services to display a list of matching items.
5. In the list of organizations or services that is returned, locate and select a service, then click OK. Click OK in the Select Location and New WSDL dialogs to return to the Create a new Synchronization Source wizard.
  The selected WSDL appears in the Configuration text box.
6. To add another WSDL, repeat this process.
Complete the wizard by following the instructions in Adding a synchronization source.
