Plug-ins
The Deploy plug-ins provide tools for creating component processes and integrations. HCL provides plug-ins for several common deployment processes, and others are available to integrate with a wide variety of tools, such as middleware tools, databases, and servers.
Plug-ins provide processing and integration functions. There are two types of plug-ins:
- Source-type plug-ins integrate with external systems to import artifacts and create component versions.
- Automation-type plug-ins provide process steps that manipulate components, typically by deploying them.
Both types of plug-ins consist of distinct processes called steps. Each step consists of a number of properties, a command that runs the step, and post-processing instructions. (Post-processing typically ensures that expected results occur.) Step properties can serve various purposes, from providing input to the command to supplying some, or all, the actual command itself. Automation-type plug-in properties can be set at design time in the process editor, or at run time in the user interface. Source-type plug-in properties are typically defined when a component is created.
Automation-type plug-ins

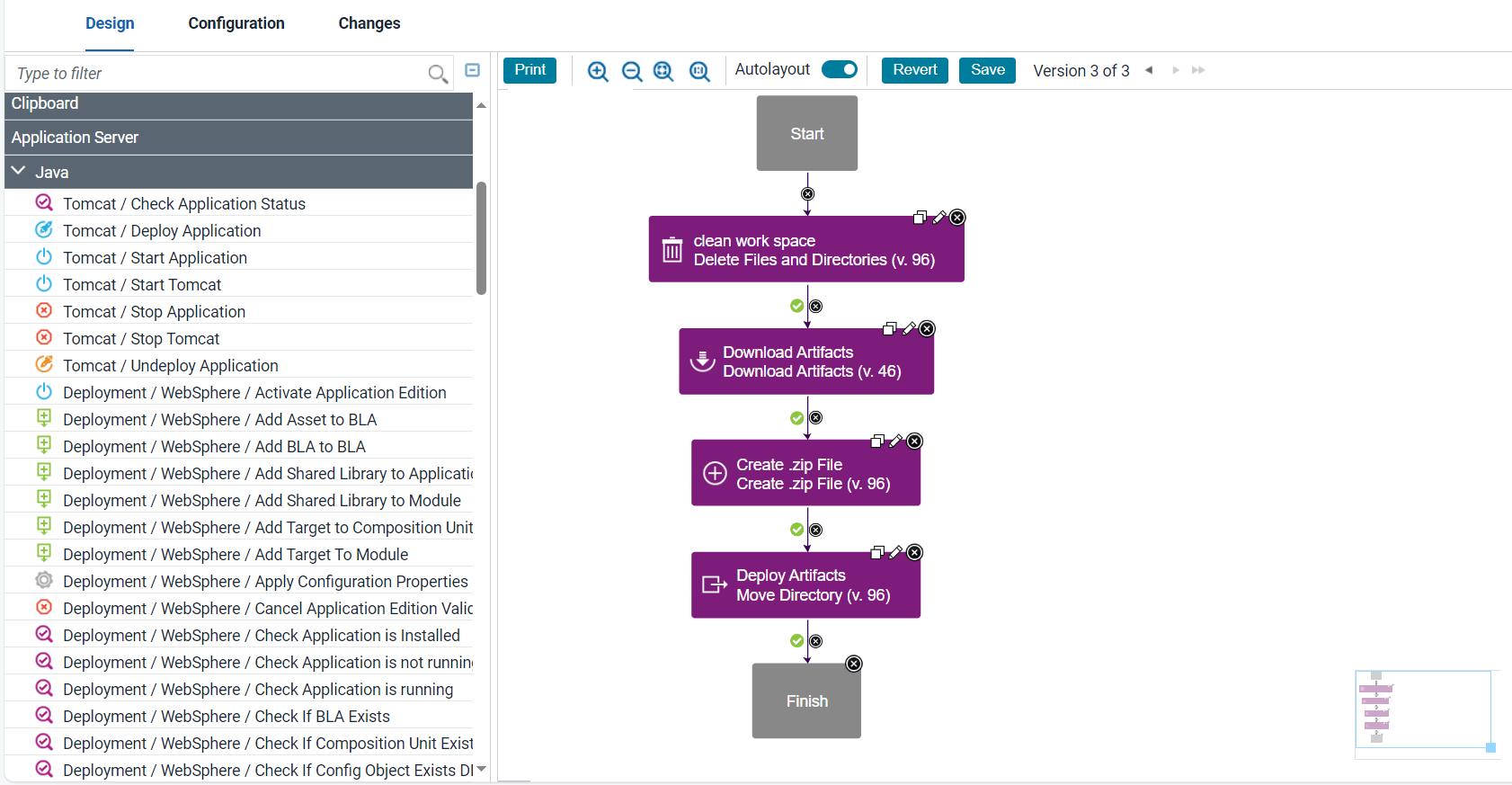

You use automation plug-ins to deploy components or otherwise manage them. Each step is a self-contained unit with inputs, outputs, and properties. By combining automation plug-in steps in the process editor, you can create fully automated deployment processes. When you create a process, you drag steps onto the design area and define the properties as you go. Property values can be specified when you define the process or at run time. The process flow is defined by drawing connections between steps. The following illustration, shows a series of automation-type plug-in steps and the connections between them.
For information about creating component processes, see Component processes.
At deployment time, component processes are run by agents that are installed in the target environment. For a process to run, the agent must have access to all resources, tools, and files that are required by the plug-in steps in the process. When you install an agent, ensure that these conditions are met:
- The agent that runs the process has the necessary user permissions to run commands and can access required resources. Assigning these permissions typically entails granting permissions if an external tool is installed as a different user; installing the agent as a service; or impersonating the appropriate user. See User impersonation for process steps.
- External tools that plug-in steps require are installed in the target environment.
- The required minimum version of an external tool is installed.
For information about installing agents, see Installing agents from the command line.
Source-type plug-ins
You use source plug-ins to import artifacts and create component versions. A source plug-in defines the type of artifacts that can be imported and identifies where the artifacts are located. Source-type plug-ins are configured when components are created, you do not use the process editor to configure source-type plug-ins. Unlike automation plug-ins, source plug-ins always have a single step, the Import Version step.
Artifacts are imported into component versions by agents that are running in the environment where the artifacts are located. For a component version to be created, the agent must have the required permissions and access to all required resources and files. For information about installing agents that run source plug-ins, see System settings.
For information on how to use the source config plug-ins that are provided with Deploy, see Creating components.
