Configuring user authentication

Authenticate users for AppScan 360° using either single sign-on (SSO) or LDAP authentication.

AppScan 360° supports the following user authentication methods:
  • Single sign-on (SSO) using OpenID Connect (OIDC) through Keycloak, Okta, PingFederate, or Microsoft EntraID.

    Open ID Connect is an authentication layer on top of OAuth 2.0, allowing clients to verify the identity of the end-user based on authentication performed by an Authorization Server, as well as to obtain basic profile information about the end-user in an interoperable and REST-like manner.

  • Microsoft Active Directory or Domino (LDAP) via port 389/636/TCP

    Active Directory authenticates and authorizes all users and computers in a network, assigning and enforcing security policies for network access.

    Domino LDAP provides authentication and authorization services using the Domino directory, enabling centralized identity management and allowing applications to query and validate user credentials.

Note:
  • Only one authentication method can be active at a time. If SSO is enabled, LDAP cannot be used simultaneously.
  • If authentication is configured during installation (using the configuration file), those settings take precedence over the user interface settings and the user interface settings for authentication appear in read-only mode.
  • For self-signed certificates, they must be provided during installation if you plan to configure SSO through the user interface later.
  • Once an LDAP or SSO user is promoted to Administrator, the default Admin account created during installation is disabled.

Configuring single sign-on (SSO) authentication

AppScan 360° supports single sign-on (SSO) through OpenID Connect (OIDC). This allows enterprises to integrate AppScan 360° with identity providers (IdPs) such as Okta, Keycloak, or PingFederate, thus allowing users to log in with corporate credentials.

Registering with identity providers

To set up Okta for AppScan 360°:

See Additional information for Entra ID and Okta mandatory, custom, and optional claims.

To set up Keycloak for AppScan 360°:
  • Create a Realm with confidential client.
  • Validate redirect URIs. The URI’s should be in following formats:
    • Login URI--https://{as360ApplicationURL}/api/v4/signin-oidc
    • Logout URI--https://{as360ApplicationURL}
  • Validate post logout redirect URIs, web origins, and enable OIDC standard flows.
    Note: Users can use Keycloak for SSO that includes integration with LDAP.
    Please note down the following details once registration is completed-Authorization Endpoint, Client ID, Client Secret for use in AppScan 360°.
To set up PingFederate for AppScan 360°:
  1. Register AppScan 360° as an OIDC client in PingFederate.
  2. Configure redirect URIs. The URIs should be in the following formats:
    • Login URI — https://{as360ApplicationURL}/api/v4/signin-oidc
    • Logout URI — https://{as360ApplicationURL}
  3. Receive the Client ID and Client Secret for use when configuring authentication in AppScan 360°.
  4. Ensure the OpenID discovery endpoint is accessible: https://{PingFederateURL}/.well-known/openid-configuration
    Important: Contract Fulfilment must include preferred_username or email.

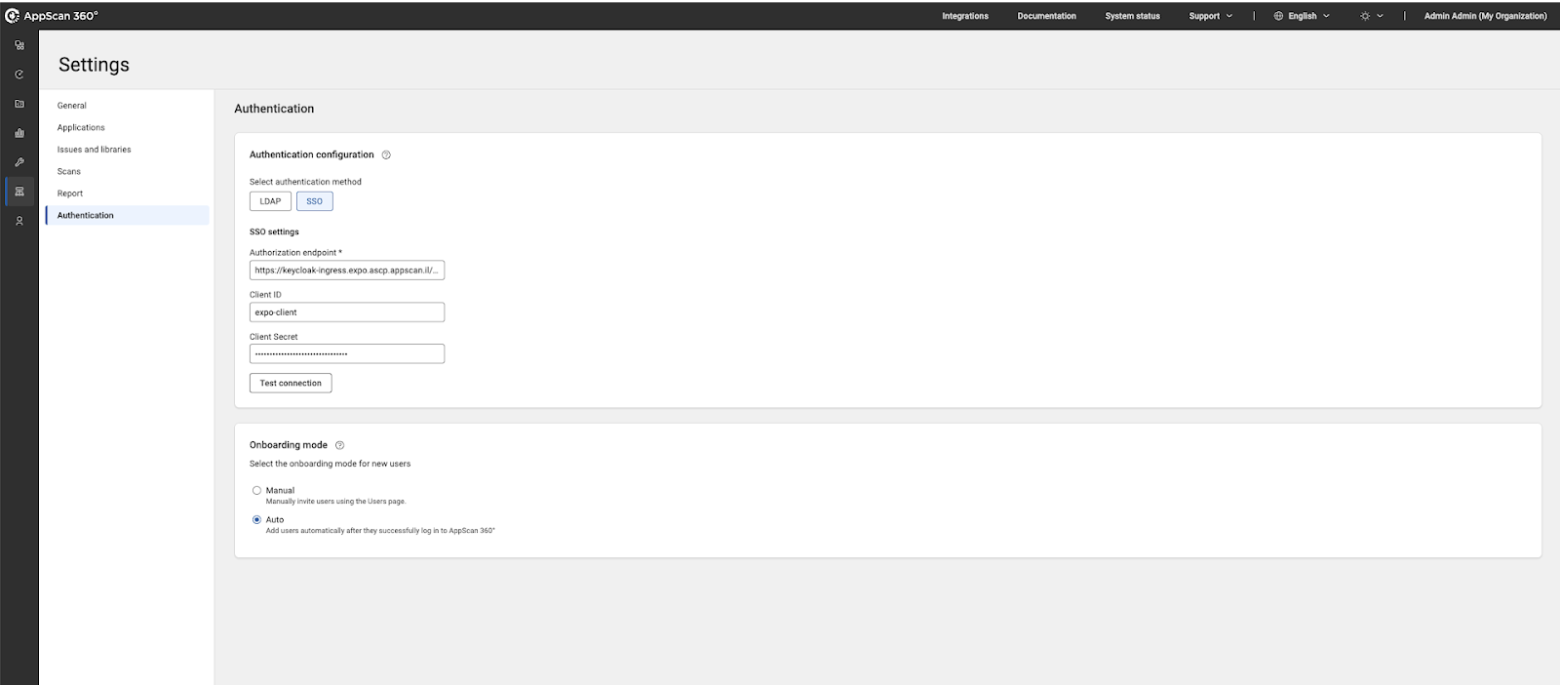

Configuring single sign-on in AppScan 360°

To configure AppScan 360° to use single sign-on:
  1. Log in to AppScan 360° as an administrator.
  2. Go to Settings > Authentication.
  3. Select SSO as the authentication method.
  4. Specify identity provider details as follows:
    Field Description
    Authorization endpoint The OIDC authorization/discovery endpoint URL of your identity provider.
    Client ID Unique identifier assigned to AppScan 360° when registered as a client application in your identity provider.
    Client secret Secret key issued by the identity provider for secure communication with AppScan 360°.
  5. Select onboarding mode:
    • Manual – Users must be invited by an Administrator using Access Management → Users.

      When a user's email is added during manual onboarding, the current validation from AppScan 360° is not present to check whether it is a valid email ID.

    • Auto – Any valid identity provider user who logs in is automatically added to AppScan 360°.

      Choose Auto only if all identity provider users are able to access AppScan 360°.

  6. Click Test connection to validate the setup.
  7. Click Save before exiting the screen.

User login workflow

Once configured, users experience single sign-on as follows:
  1. From the AppScan 360° login page, user click Login with SSO.

    AppScan 360° redirects to identity provider login.

  2. At the identity provider login, user enters appropriate organization credentials.

    Upon successful login, user is redirected back to AppScan 360°.

Configuring LDAP authentication

AppScan 360° supports authentication through LDAP (Lightweight Directory Access Protocol). You can integrate with either Active Directory or Domino LDAP by configuring the appropriate provider type. This allows users to log in with their enterprise directory credentials.

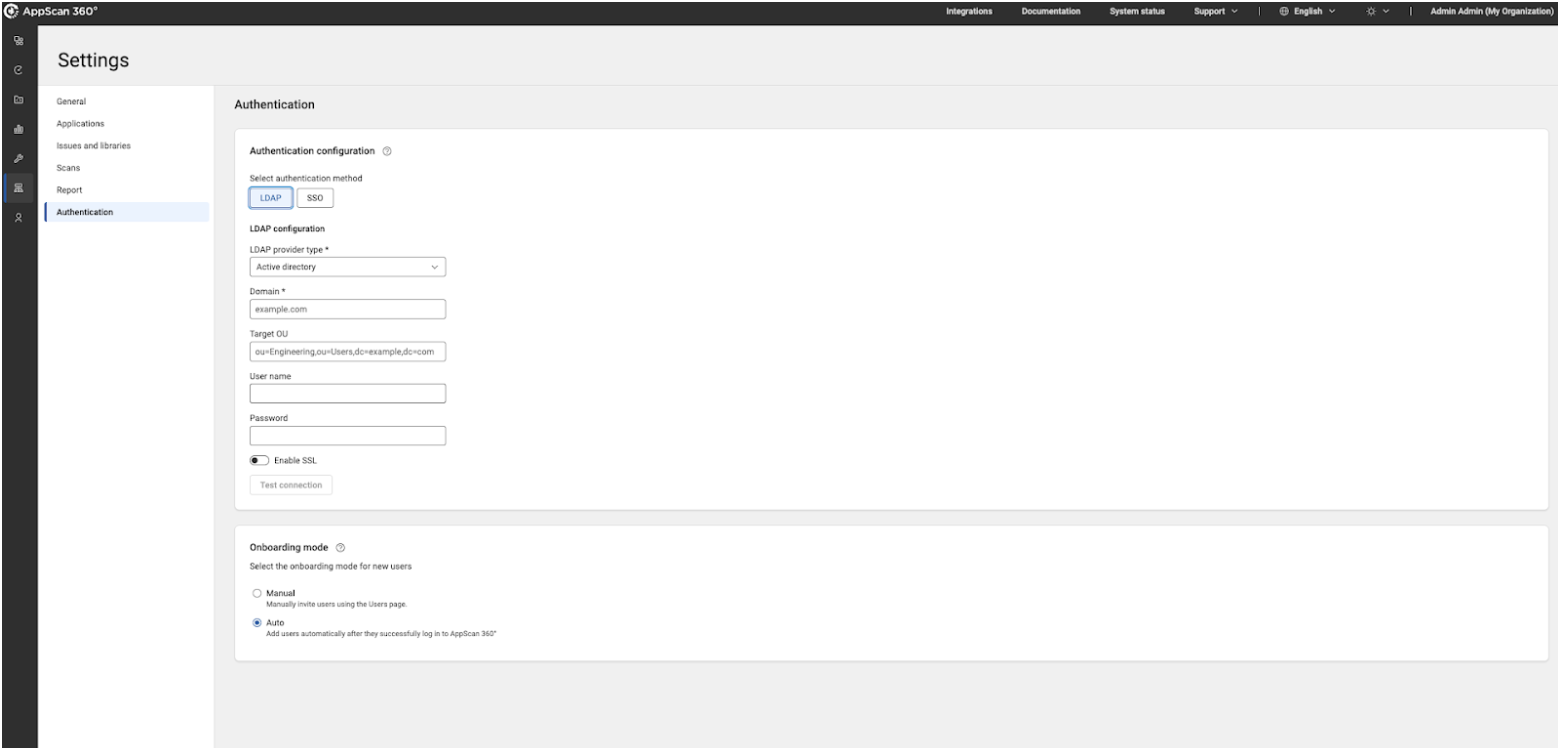

Configuring LDAP in AppScan 360°

To configure AppScan 360° to use single sign-on:
  1. Log in to AppScan 360° as an administrator.
  2. Go to Settings > Authentication.
  3. Select LDAP as the authentication method.
  4. From the LDAP provider type list, choose either Active Directory or Domino LDAP.
  5. Specify details as follows:
    Field Description
    Domain Domain name (for Active Directory) or directory root domain
    Target OU Organizational Unit or Base DN path used to search for users
    Username/password Service account credentials used for LDAP binding
    Enable SSL Enable or disable secure LDAP (LDAPS)
  6. Select onboarding mode:
    • Manual – Users must be invited by an Administrator using Access Management → Users.

      When a user's email is added during manual onboarding, the current validation from AppScan 360° is not present to check whether it is a valid email ID.

    • Auto – Any valid identity provider user who logs in is automatically added to AppScan 360°.

      Choose Auto only if all identity provider users are able to access AppScan 360°.

  7. Click Test connection to validate the setup.
  8. Click Save before exiting the screen.
Note: As of version 2.0.0 , AppScan 360° supports authentication of users from multiple Active Directory domains (in the same Active Directory Forest).

Additional information

Additional information for EntraID configurations
  • Mandatory claims: In the OIDC protocol and Microsoft Entra ID, mandatory claims are hardcoded into the token by default to comply with the global OpenID standard. Because they are mandatory, they are not listed as checkboxes in the user interface; they are included automatically in every token Entra ID issues.
  • Optional claims:
    • email
    • preferred_username

    Set optional claims under Enterprise App > Manage > Token Configuration

Additional information for Okta configurations
  • Mandatory claims claims required for user authentication:
    • iss: Issuer identifier of the Okta Authorization Server.
    • sub: Unique identifier for the authenticated user.
    • aud: Audience (Client ID of the application).
    • exp: Token expiration time.
    • iat: Token issued time.
    • auth_time (if requested): Time when the user was authenticated.
    • nonce (for ID Token validation when used): Prevents replay attacks.
  • Common user claims typically included based on scope:
    • email
    • email_verified
    • preferred_username
    • given_name
    • family_name
    • name
    • locale
    • zoneinfo
    • Updated_at
  • Optional claims can be configured in Okta if required by the application:
    • Groups (groups)
    • Employee ID
    • Department Manager
    • Any other custom profile attributes defined in Okta.
  • Standard OpenID Connect (OIDC) scopes:
    Scope Purpose
    openid Mandatory. Enables OpenID Connect authentication and returns an ID token.
    profile Provides basic user profile information (name, username, locale, and so on).
    email Provides the user's email address and email verification status.
    groups (optional) Returns group membership if configured in Okta.
    offline_access (optional) Allows issuance of refresh tokens for long-lived sessions.
