Connecting to HCL Volt MX Foundry through DDC

This section provides the steps on using the Digital Data Connector (DDC) for HCL Digital Experience (DX) Compose framework to integrate data from HCL Volt MX Foundry (integrated external data sources) to your DX Compose pages using HCL Web Content Manager presentation components.

Prerequisite

Ensure that the your Volt MX Foundry application is configured correctly according to Configuring Volt MX Foundry to connect to HCL DX DDC.

Creating a mapping for the DDC plug-in for the list-rendering profile

This section describes how to define the set of attributes available in the beans that are contained in bean lists that a DDC plug-in generates in list-rendering profile.

For more information, see Technical concepts.

The following API end point and response are used to create this sample document:

• Sample API end point for GET

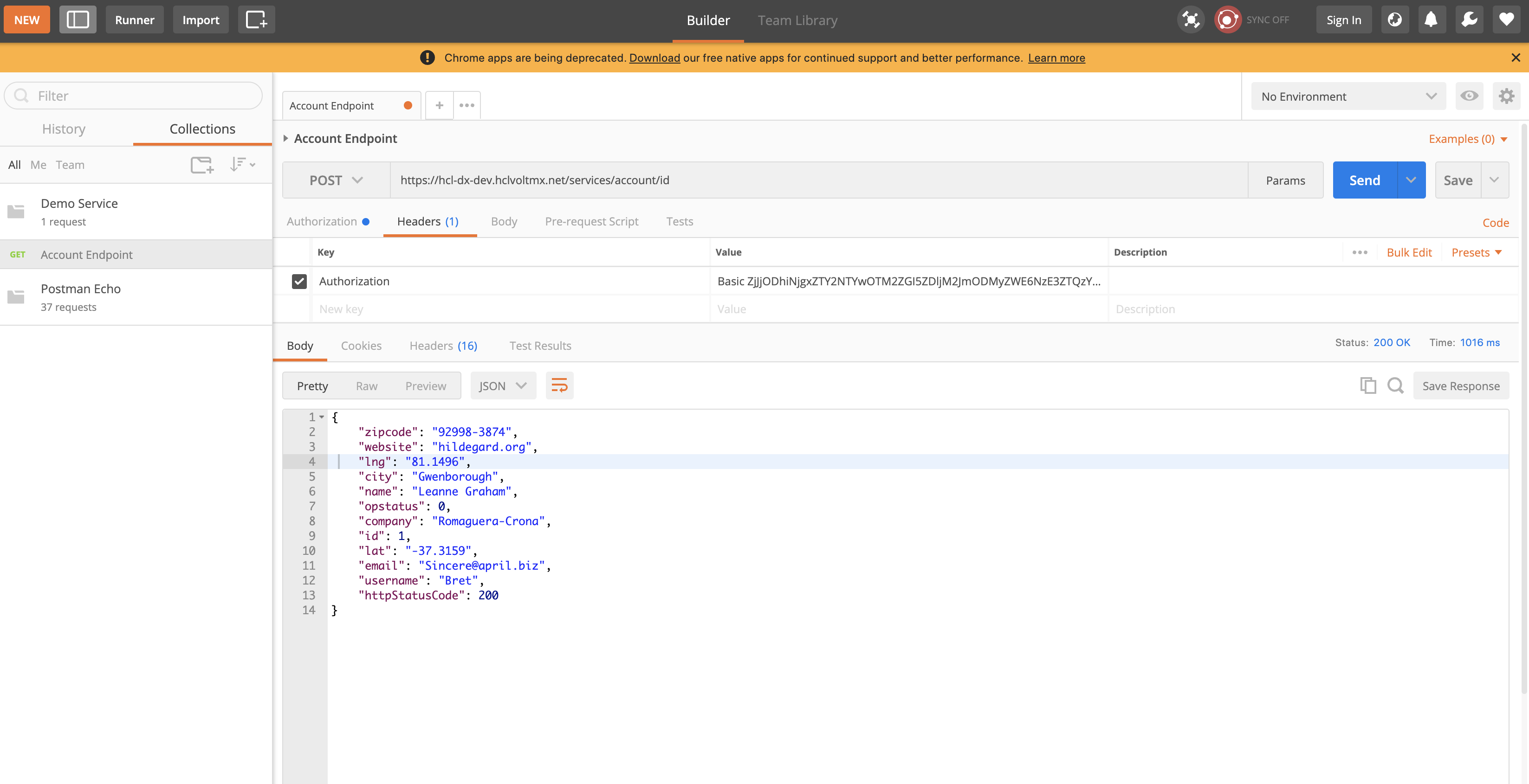

• Sample API end point for POST

Creating the list-rendering profile

Use Helm to add list-rendering profile properties in ListRenderingProfileService.properties. Refer to the following steps:

1. Update the values.yaml file with the following snippet:

   propertiesFilesOverrides:
     ListRenderingProfileService.properties:
       ddcDemo.Name: "ddcDemo.profile.json"
       ddcDemo.BeanListProviderID: "ibm.portal.ddc.json"
       ddcDemo.ItemAttribute.id: "id"
       ddcDemo.ItemAttribute.fullname: "name"
       ddcDemo.ItemAttribute.email: "email"
       ddcDemo.ItemAttribute.username: "username"
       ddcDemo.ListItemSelection: "."
       ddcDemo.Type: "BasicJSONSelection"
     ConfigService.properties:
       wp.proxy.config.urlreplacement.digital_data_connector_policy.ddcDemo: "https://hcl-dx-dev.hclvoltmx.net/services/account/*"


   This configuration defines a list-rendering profile named ddcDemo with the following attributes:

   • Name: The name of the profile file.
   • BeanListProviderID: The ID of the bean list provider.
   • ItemAttribute.id: The attribute for the item ID.
   • ItemAttribute.fullname: The attribute for the full name.
   • ItemAttribute.email: The attribute for the email.
   • ItemAttribute.username: The attribute for the username.
   • ListItemSelection: The selection criteria for the list items.
   • Type: The type of selection.

   For more information on how to update or add properties using Helm, see Updating DX Compose WebEngine properties using Helm values.

2. After updating property, perform a Helm upgrade to apply the changes.

The server is automatically restarted to pick up the changes in the properties file.

WCM presentation components

You can use an existing or a new Web Content Manager (WCM) library. The example in this page uses a new library, DDC Foundry, with default items such as site area and workflow. You must create WCM artifacts under four folders:

• Content
• Components
• Authoring Templates
• Presentation Templates

Refer to Creating web content libraries for instructions on how to work with WCM libraries.

Creating a Presentation Template

Create a Presentation Template to set the context of the DDC content. Refer to the following steps:

1. Go to Web Content > Authoring.

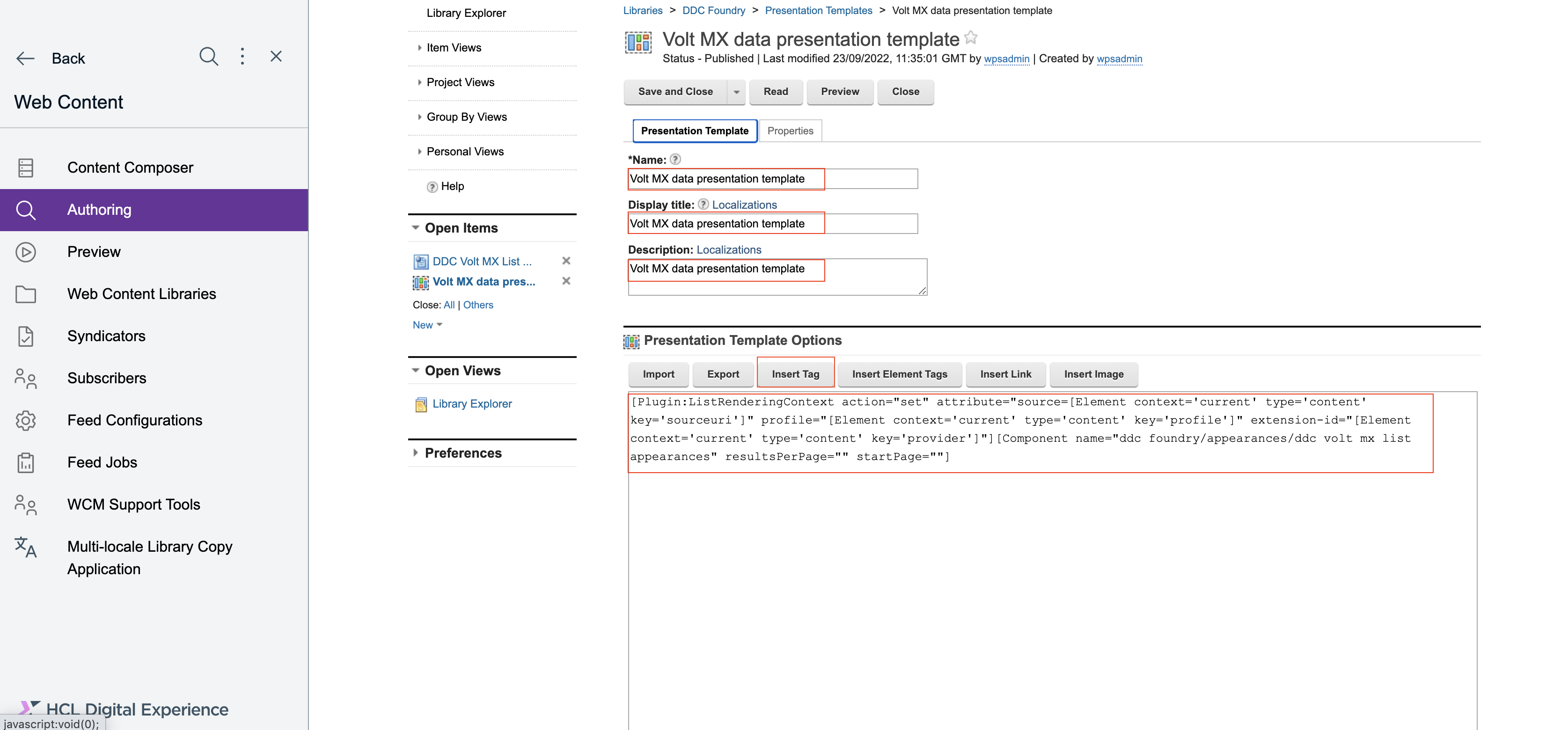

2. Create a new Presentation Template.

   1. Click New > Presentation Template.
   2. Enter a Name, Display title, and Description for your presentation template. The recommended name is Volt MX data presentation template.

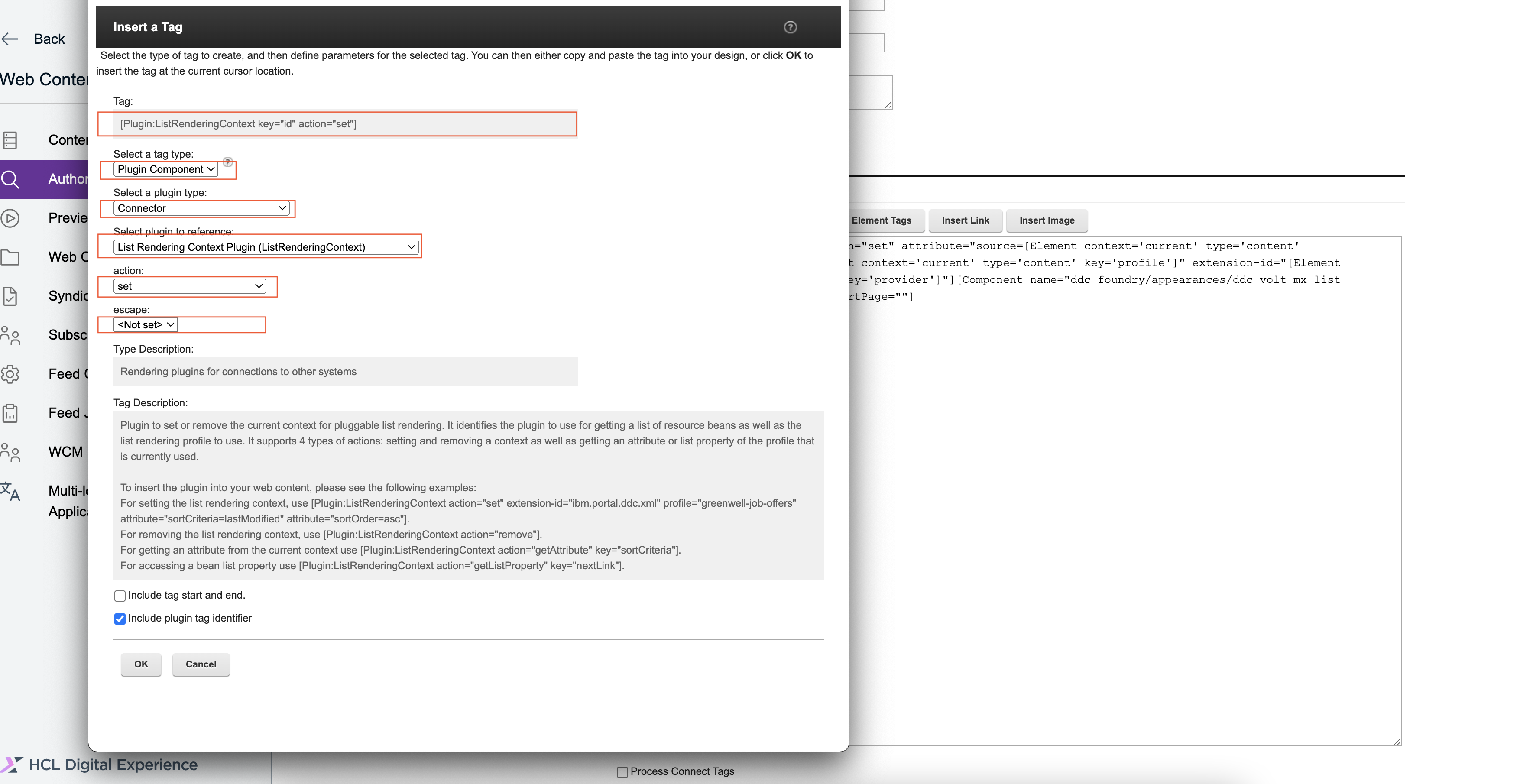

   3. Under Presentation Template Options, click Insert Tag.



   1. Select the type of tag to create, and then define parameters for the selected tag. You can then either copy and paste the tag into your design, or click OK to insert the tag at the current cursor location.



   Sample Presentation Template options

   [Plugin:ListRenderingContext action="set" attribute="source=[Element context='current' type='content' key='sourceuri']" profile="[Element context='current' type='content' key='profile']" extension-id="[Element context='current' type='content' key='provider']"][Component name="ddc foundry/appearances/ddc volt mx list appearances" resultsPerPage="" startPage=""]


   • Under attribute, define the data source endpoint. The content field set in this example is sourceuri, where you saved the endpoint in the content item.
   • profile refers to the List-Rendering Profile which was saved earlier in the WAS console. The content field that is set in this example is also profile, which is saved in the content item with the ddcDemo.profile.json value.
   • extension-id refers to the DDC plugin ID. The content field set in this example is provider, which is saved in the content item with value ibm.portal.ddc.json.

3. Click Save and Close.

Note

If you selected any other Resource Method (for example, POST from Advanced > Front End API > Resource Method) while creating a new integration service with Volt MX Foundry, you might need the capability to submit data to the API which DDC will try to parse as sourceParams. In that case, you must include that in your Presentation Template.

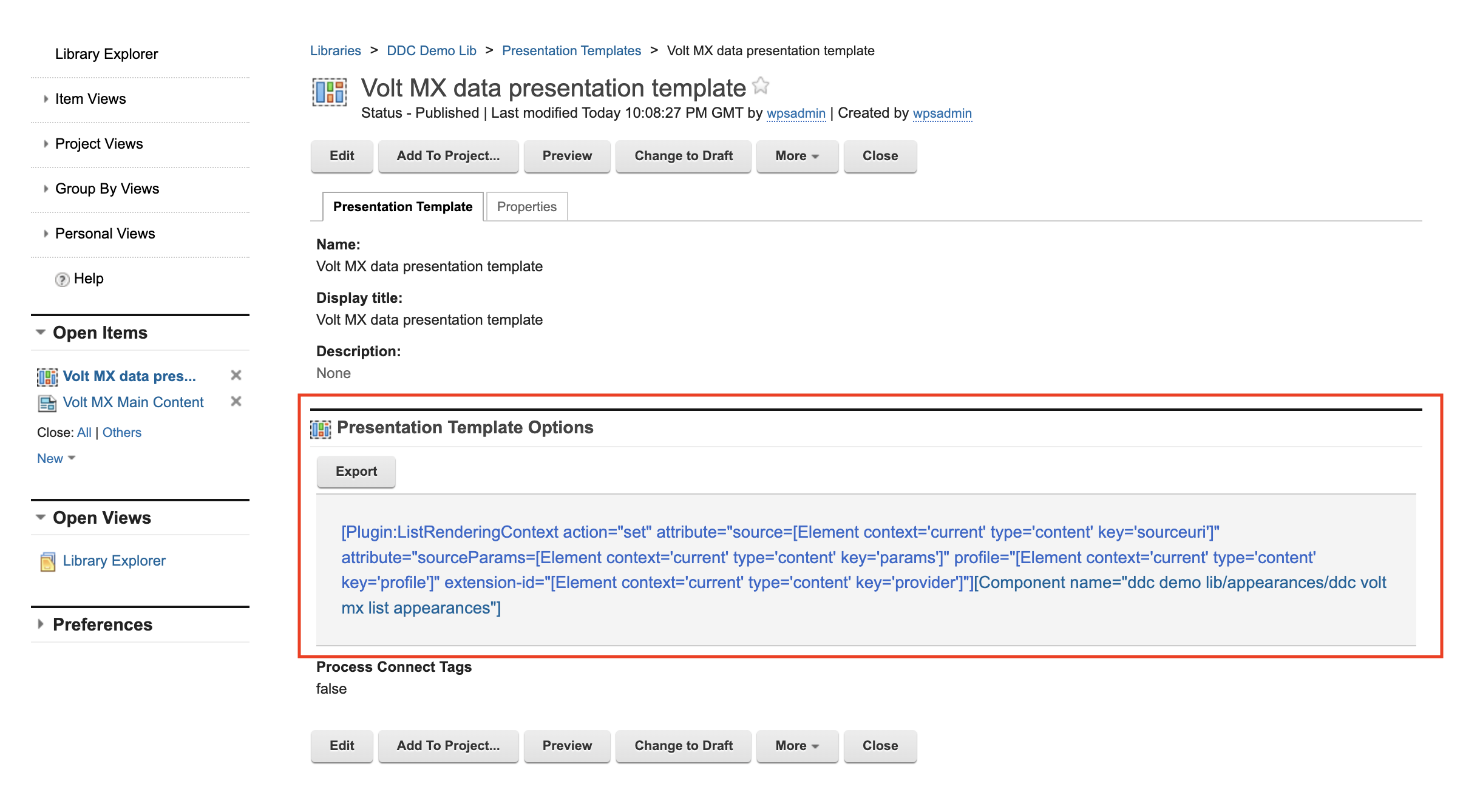

Sample Presentation Template options with params

[Plugin:ListRenderingContext action="set" attribute="source=[Element context='current' type='content' key='sourceuri']" attribute="sourceParams=[Element context='current' type='content' key='params']" profile="[Element context='current' type='content' key='profile']" extension-id="[Element context='current' type='content' key='provider']"][Component name="ddc foundry/appearances/ddc volt mx list appearances" resultsPerPage="" startPage=""]

Under attribute, define the data sourceParams. The content field set in this example is params, which is saved in the content item.

Creating a Content Template

Under Authoring Templates, create a Content Template.

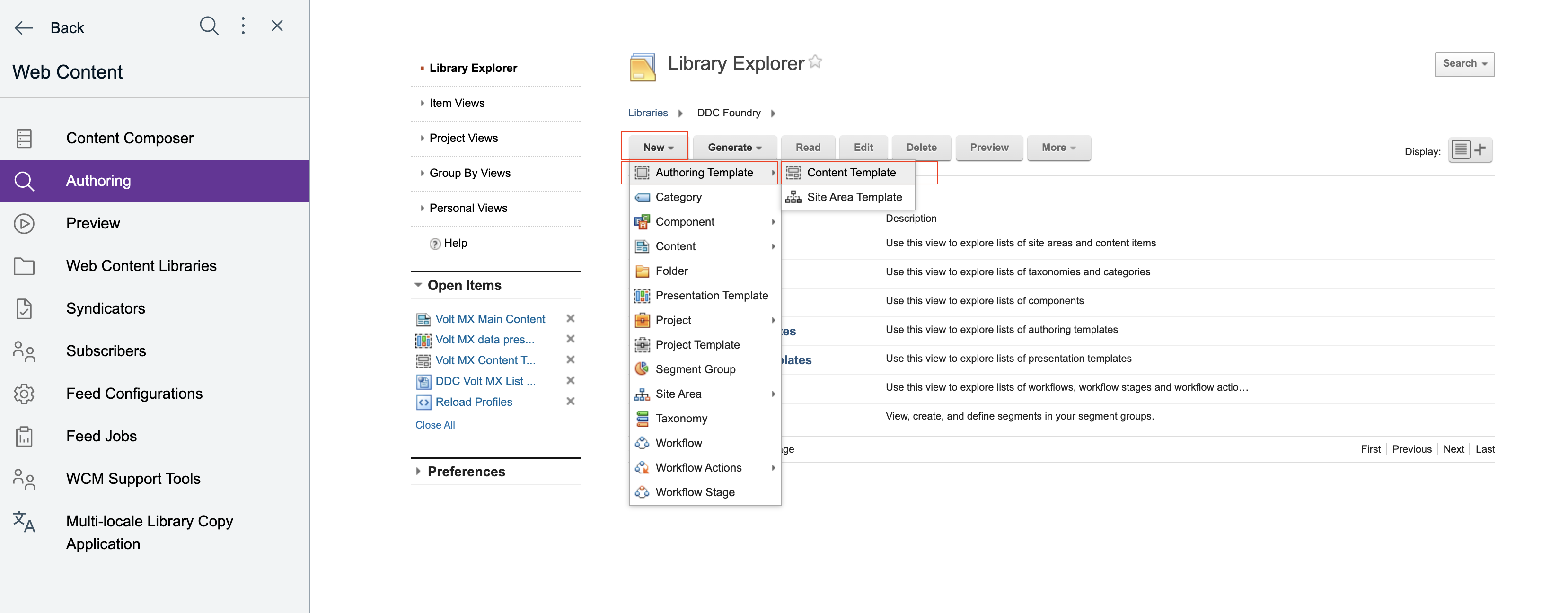

1. Click New > Authoring Template > Content Template.

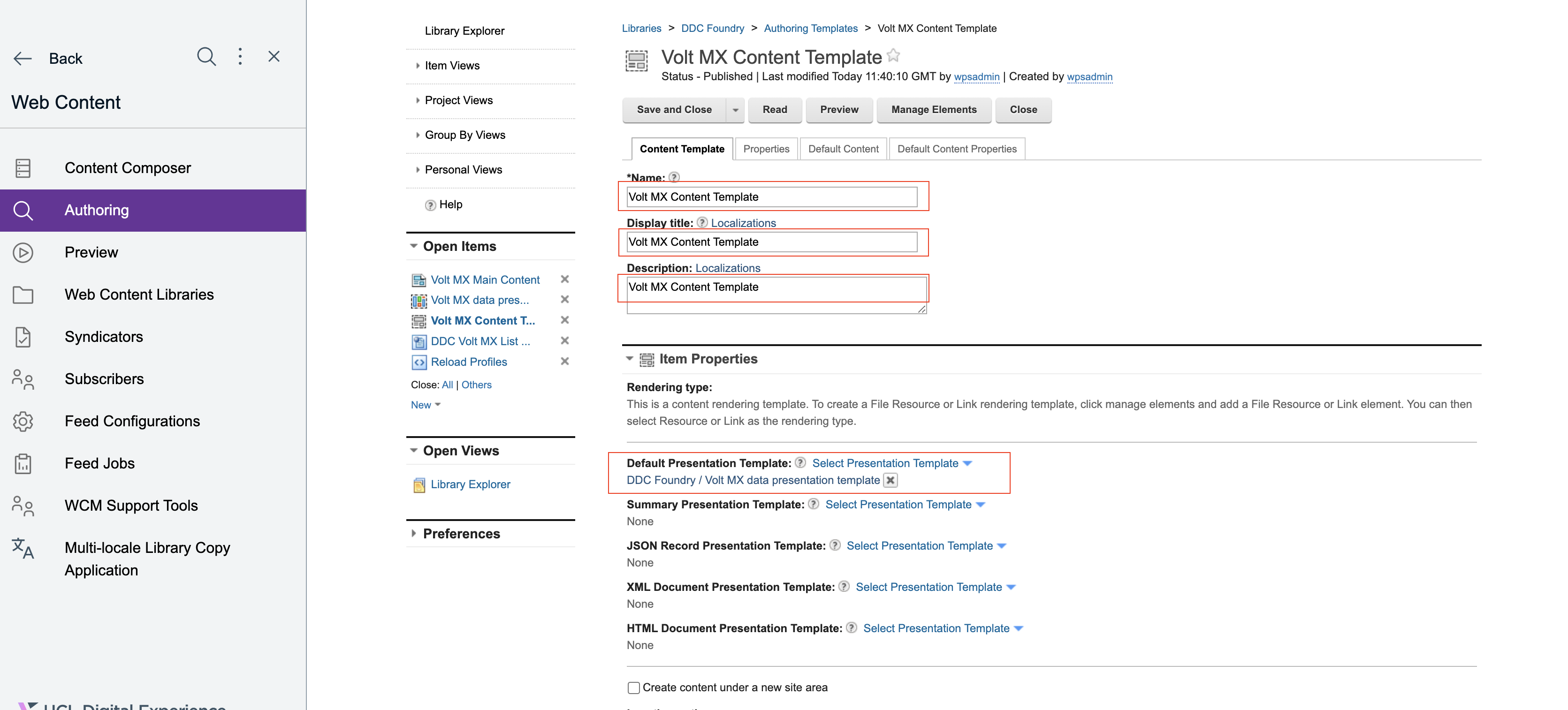

2. Add the Name, Display title, and Description for your Content Template.

   The recommended name is Volt MX Content Template.

3. Under Item Properties, select the presentation template you created in Creating a presentation template as the Default Presentation Template.

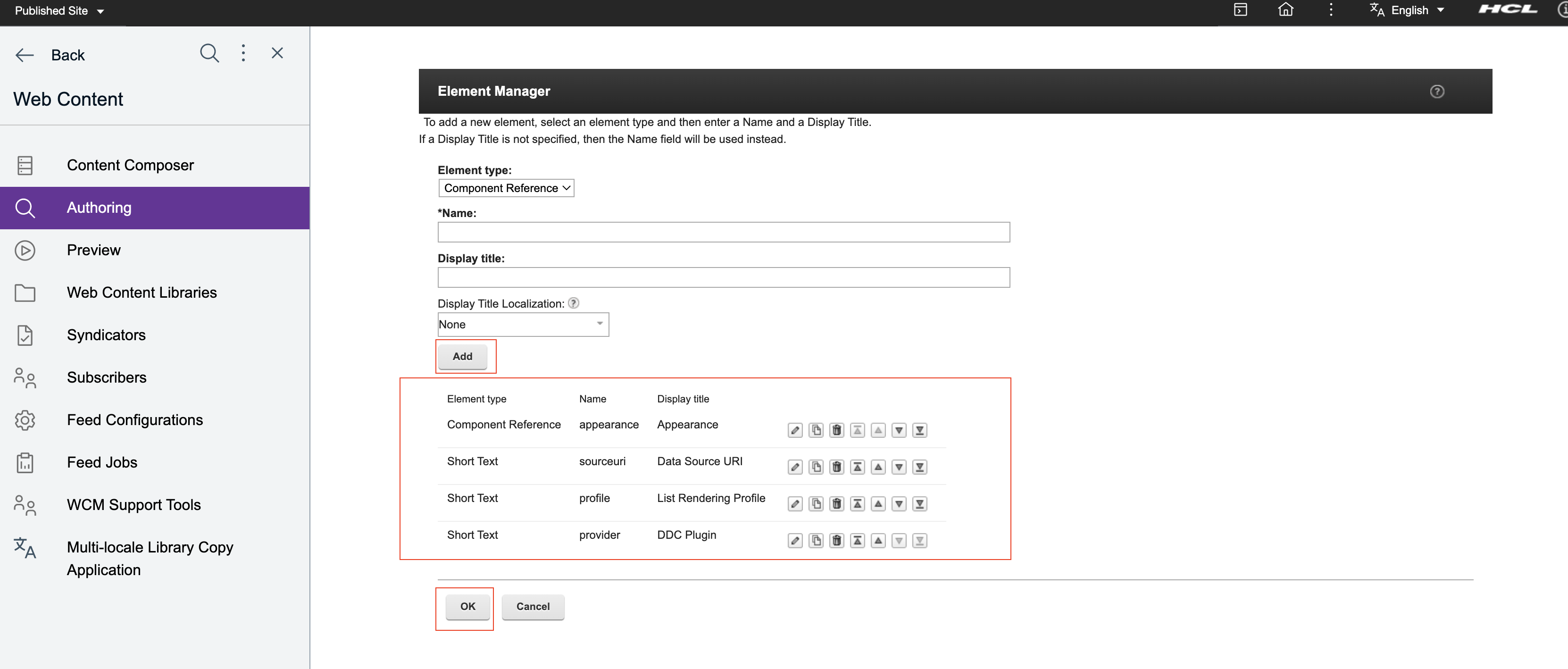

4. Click Manage Element and add the following elements to the content template:

   Element type	Name	Display title
   Component Reference	appearance	Appearance
   Short Text	sourceuri	Data Source URI
   Short Text	profile	List Rendering Profile
   Short Text	provider	DDC Plugin



   Note

   In case of GET resource method, adding httpmethod element is not necessary. Vy default, the connection is initially set to GET.

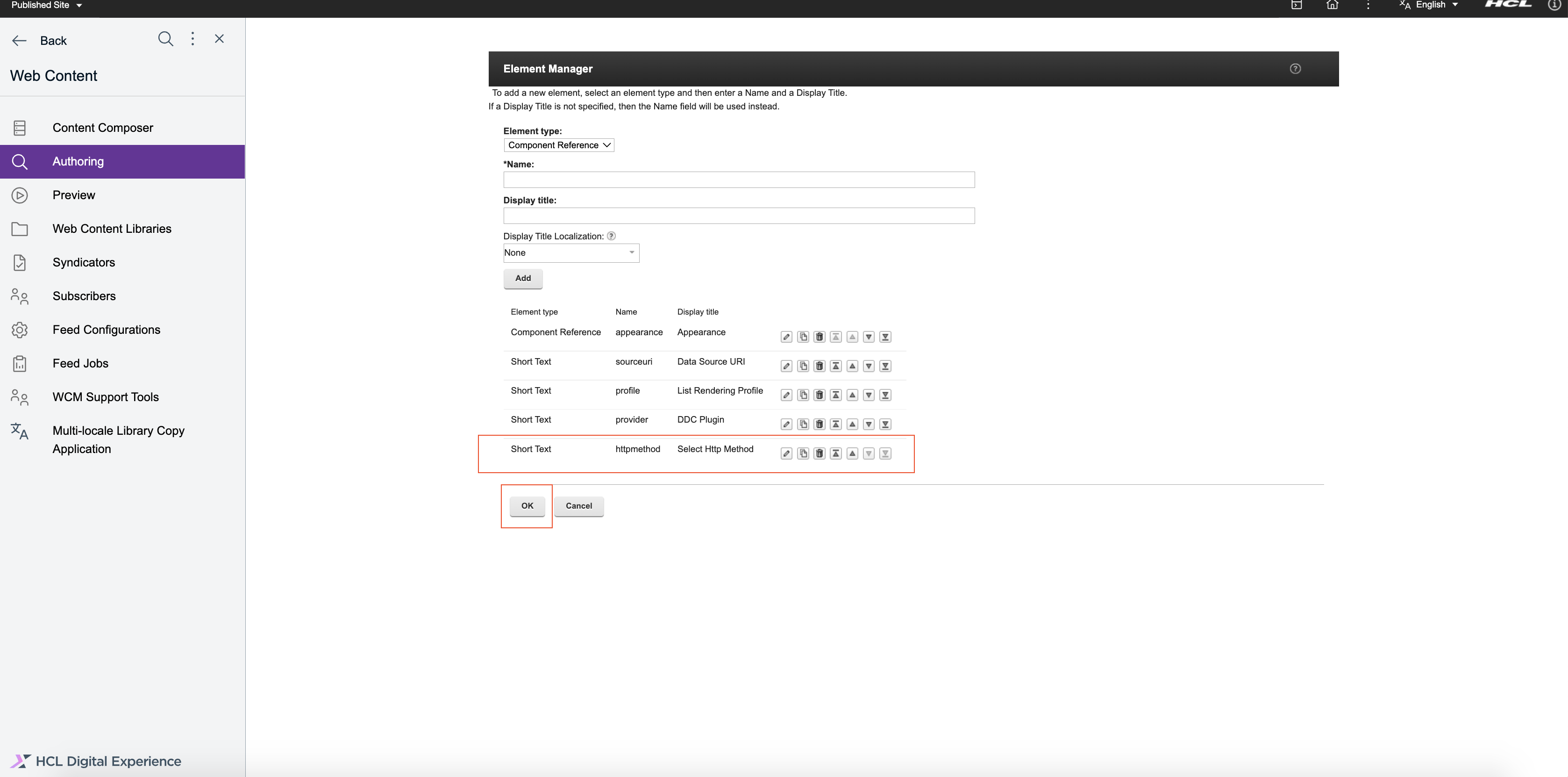

   If you selected any other Resource Method (for example, POST from Advanced > Front End API > Resource Method) while creating a new integration service with Volt MX Foundry, then you need to add another element httpmethod. This element (httpmethod) can be added as Short Text, Text, or OptionSelection. A content created from this content template can then load and render data from data sources using other resource methods. Leaving the optional httpmethod field value blank or empty when creating your content, which is based on the content template, would still have the connection fallback to GET.

   Element type	Name	Display title
   Short Text	httpmethod	Select Http Method

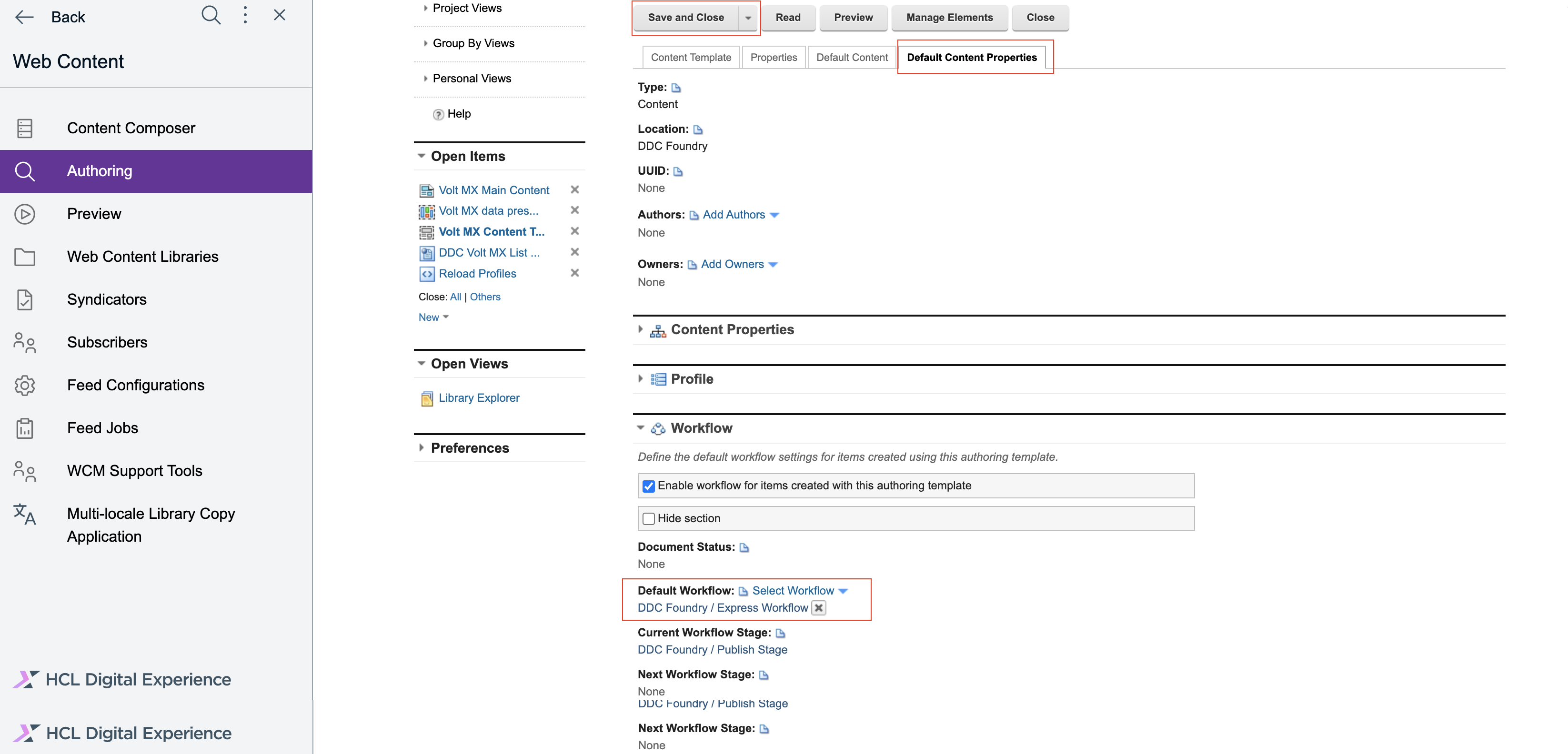

5. Click Default Content Properties and add Express workflow.



6. Click Save and Close.

Note

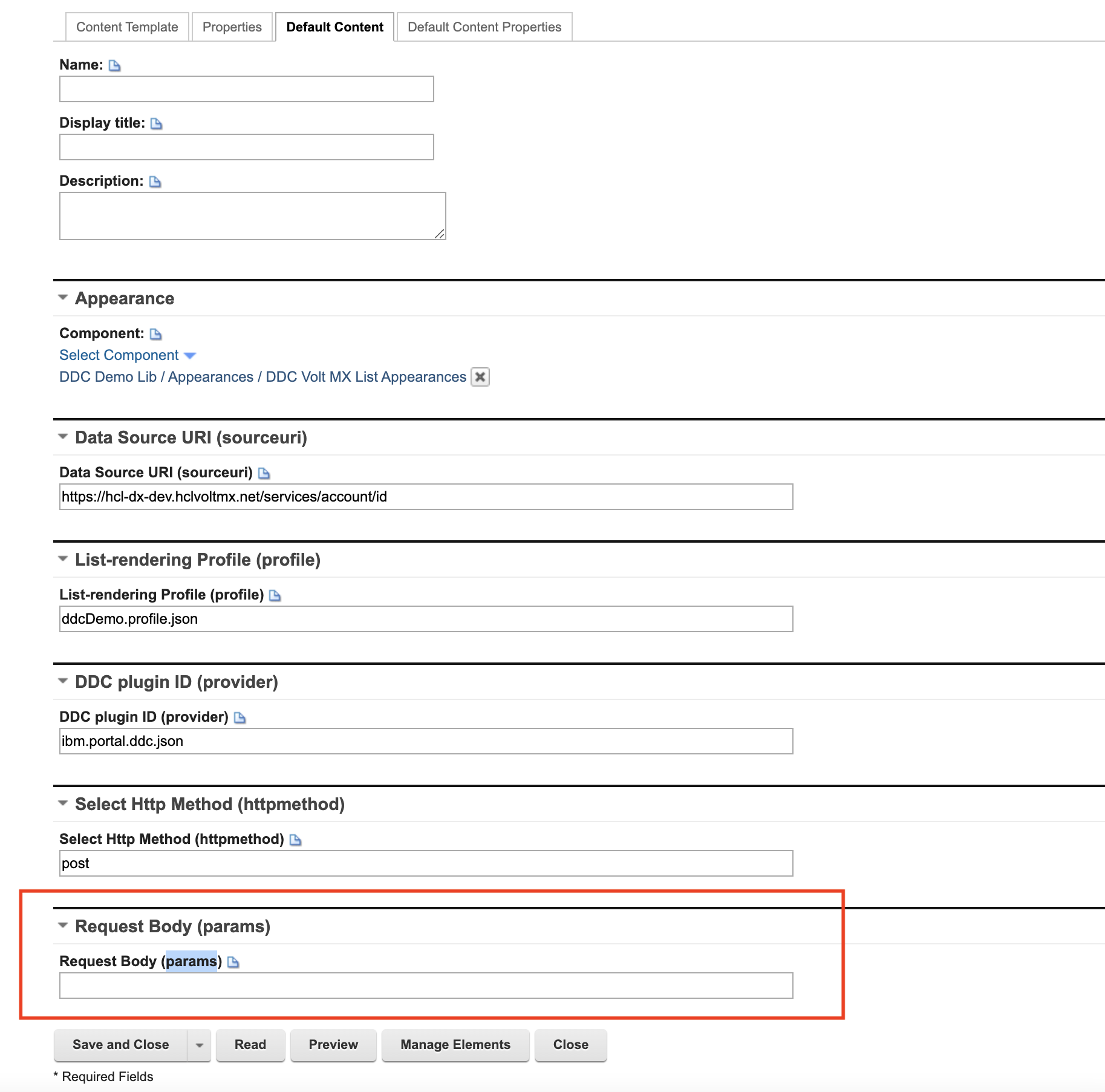

If you selected any other Resource Method (for example, POST from Advanced > Front End API > Resource Method) while creating a new integration service with Volt MX Foundry, you might need the capability to submit data to the API which DDC will try to parse as sourceParams using the Presentation Template you created in the previous section. In that case, you must add a content field in your Content Template that will save this. It can have any name but this example uses params.

Element type	Name	Display title
Short Text	params	Request Body

Creating a List Appearance

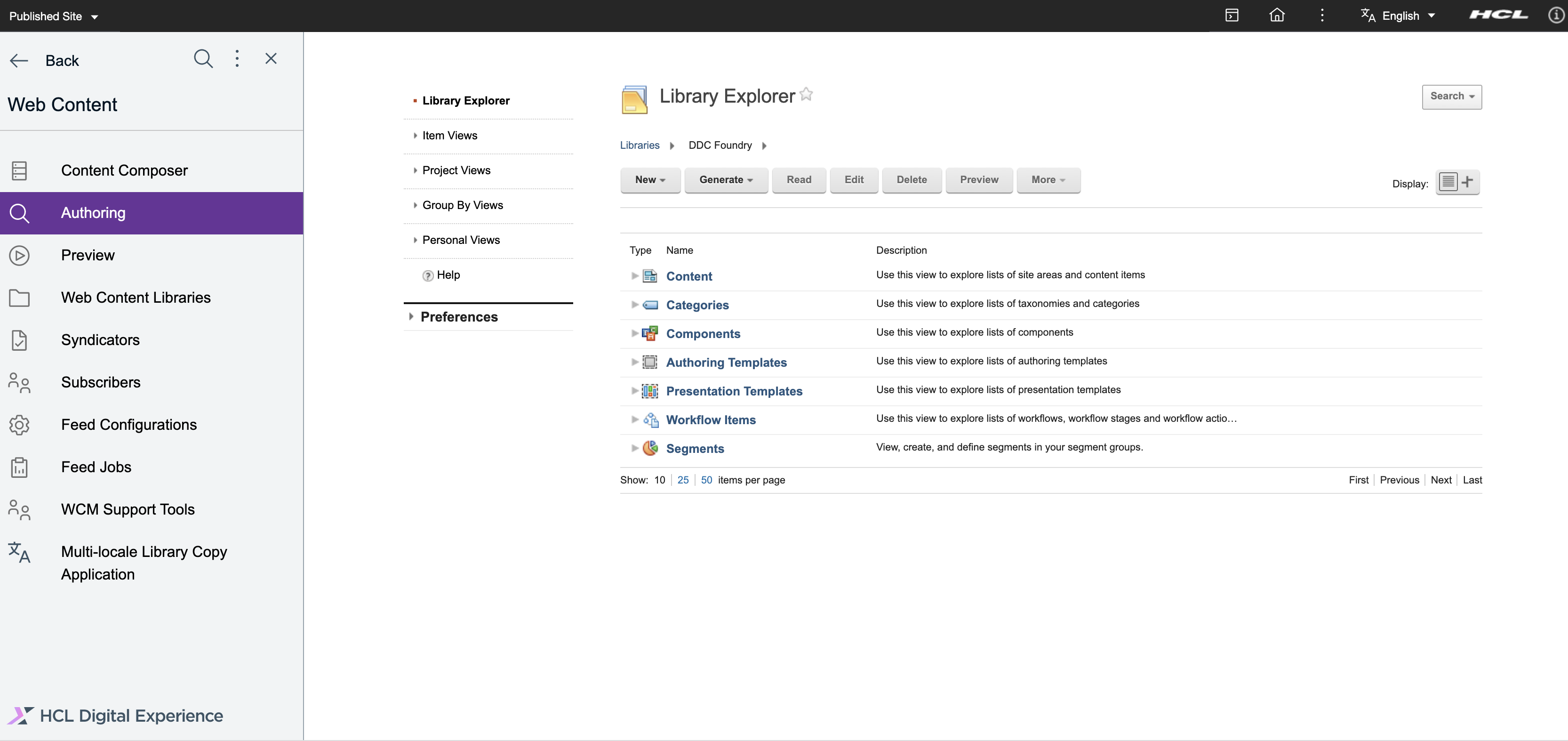

1. Go to the Library Explorer. The following default items are available: Content, Categories, Components, Authoring Templates, Presentation Templates, Workflow Items, and Segments.

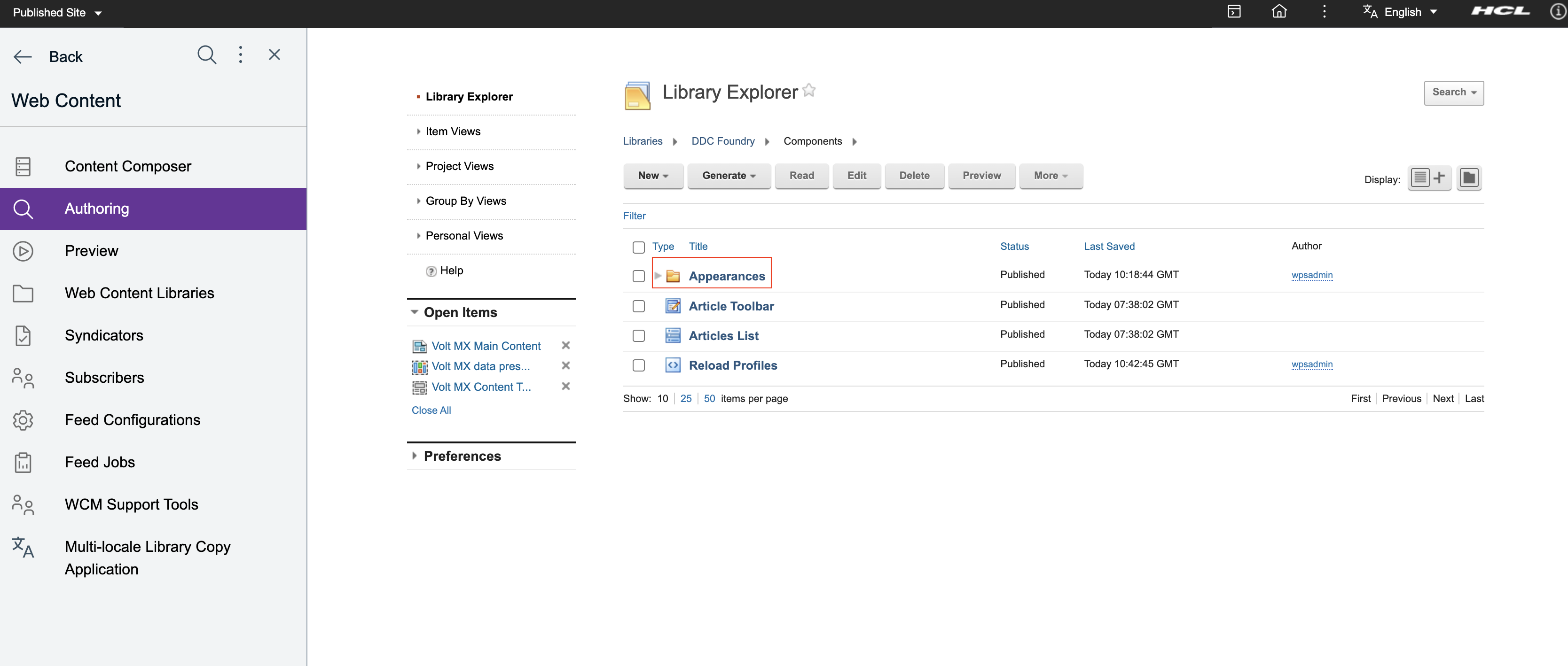

2. Create an Appearances folder under Components. This is to ensure that your personalization components use the DDC selection rule. Select pluggable resources can be found easily in one place.



3. Under the Appearances folder, create a new Personalization component.

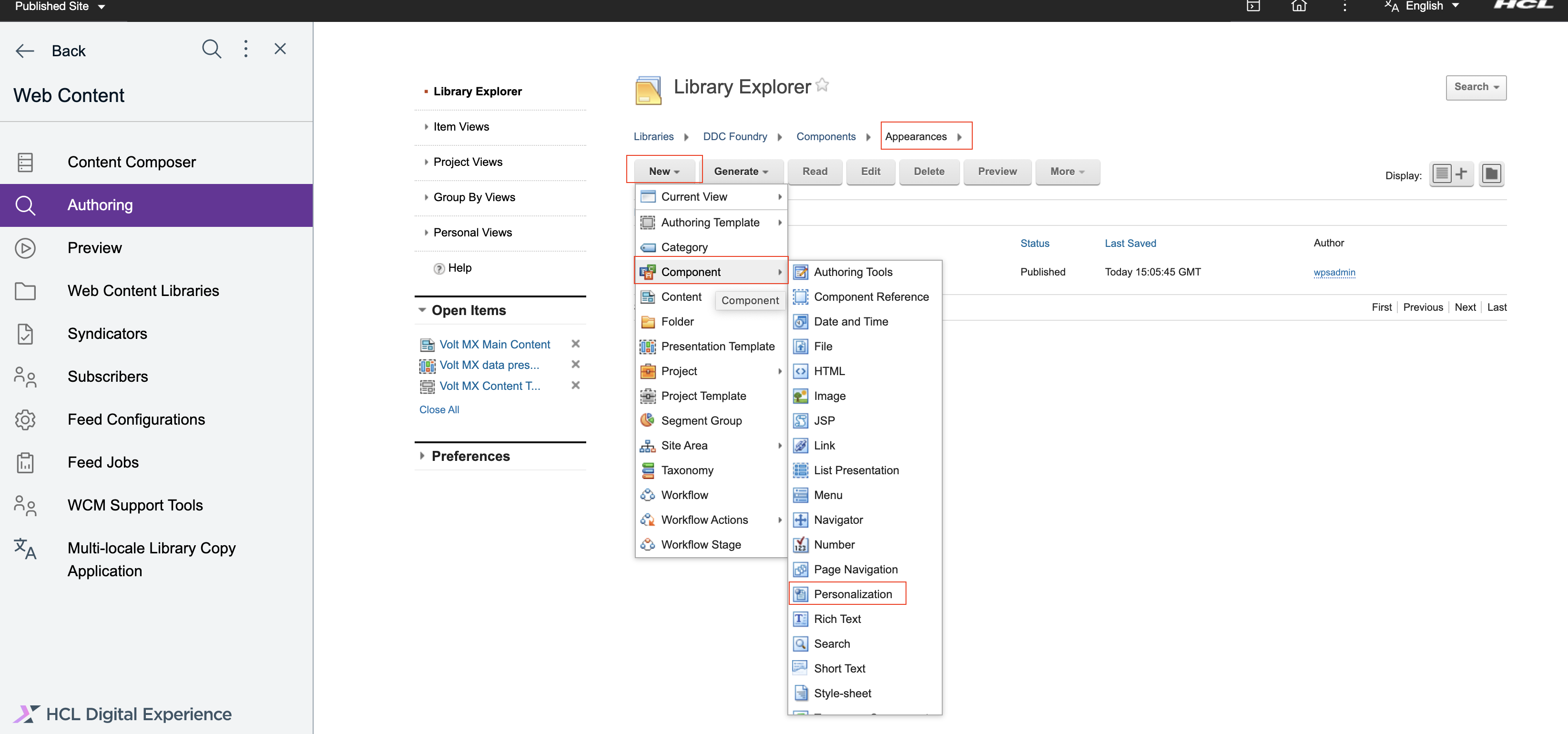

   1. Click New > Component > Personalization.

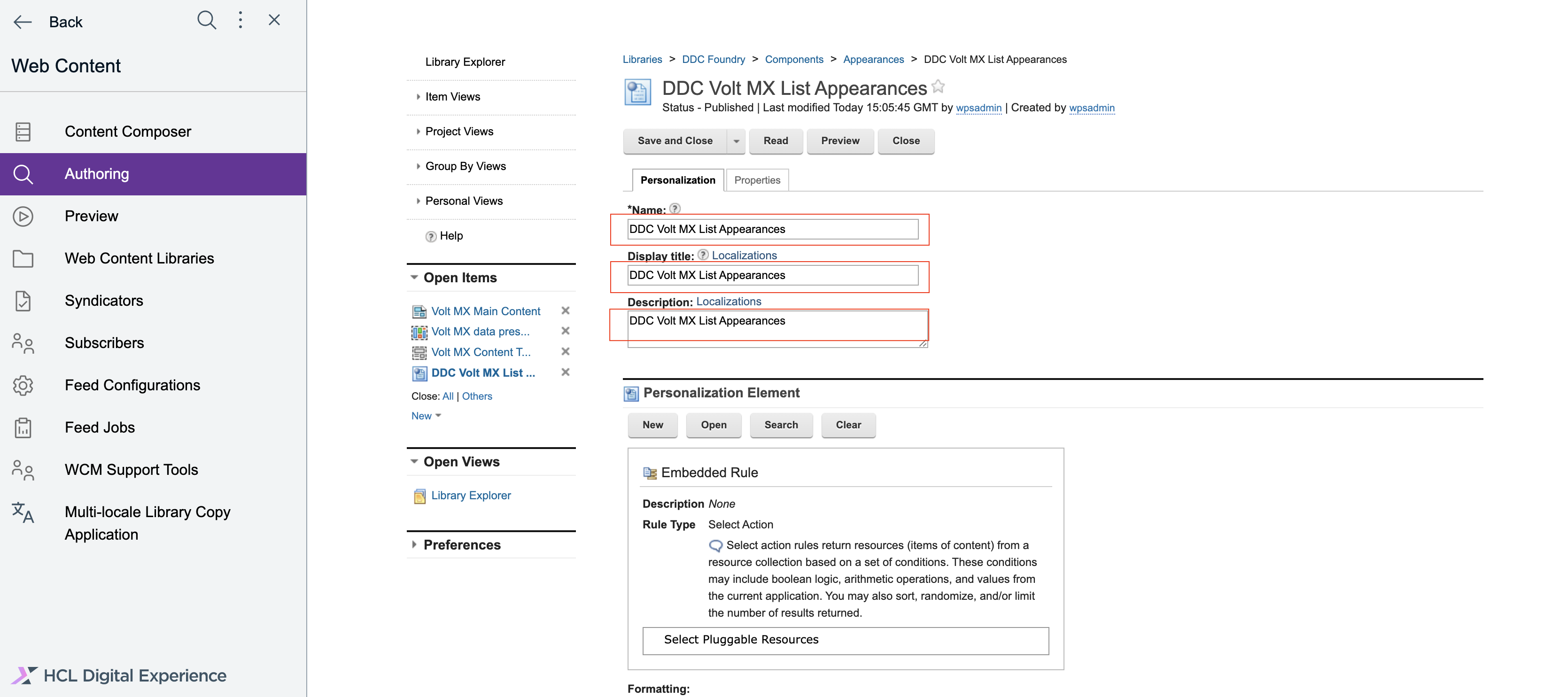

   2. Enter the Name, Display title, and Description. The recommended name is DDC Volt MX List Appearances.



   3. Under Personalization Element, click New.

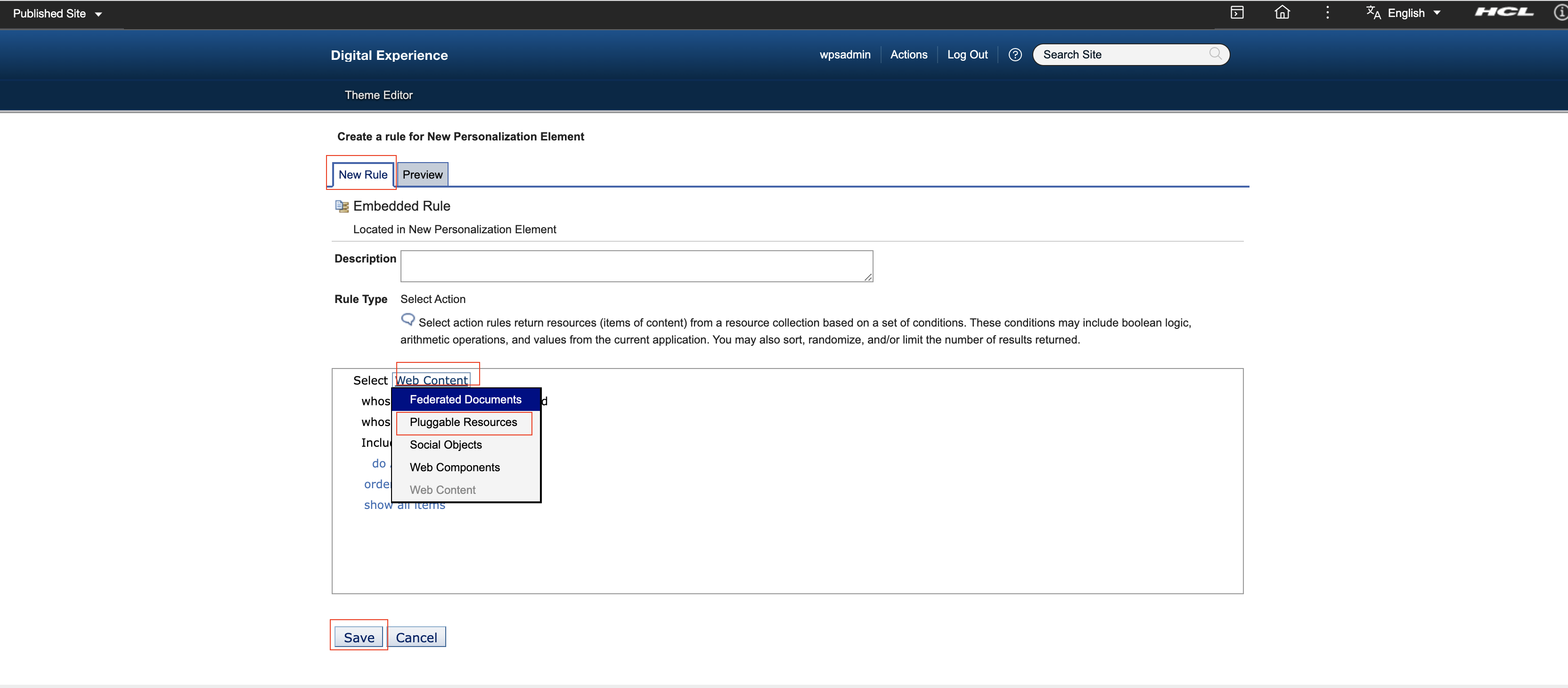

   4. Under New Rule, click Web Content and select Pluggable Resources. Click Save.

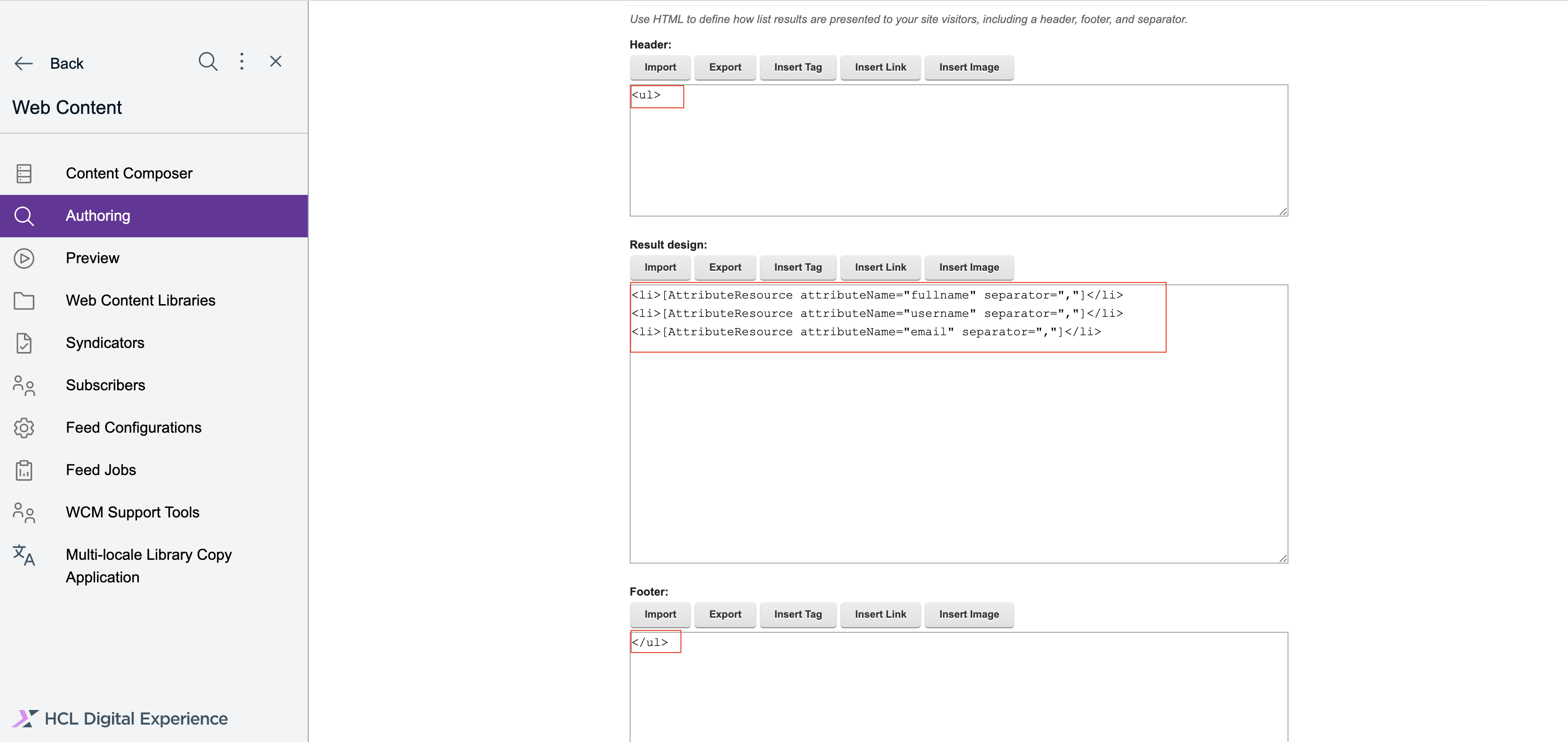

   5. In the List Presentation Markup, add the following:

      • Header: <ul>
      • Result design:

        <li>[AttributeResource attributeName="fullname" separator=","]</li>
        <li>[AttributeResource attributeName="username" separator=","]</li>
        <li>[AttributeResource attributeName="email" separator=","]</li>


      • Footer: </ul>

      Note

      The attributeName used here is the last part of the itemAttribute you have specified in your list-rendering profile. For example, ddcDemo.ItemAttribute.fullname.



   6. Click Save and Close.

Creating a Content item

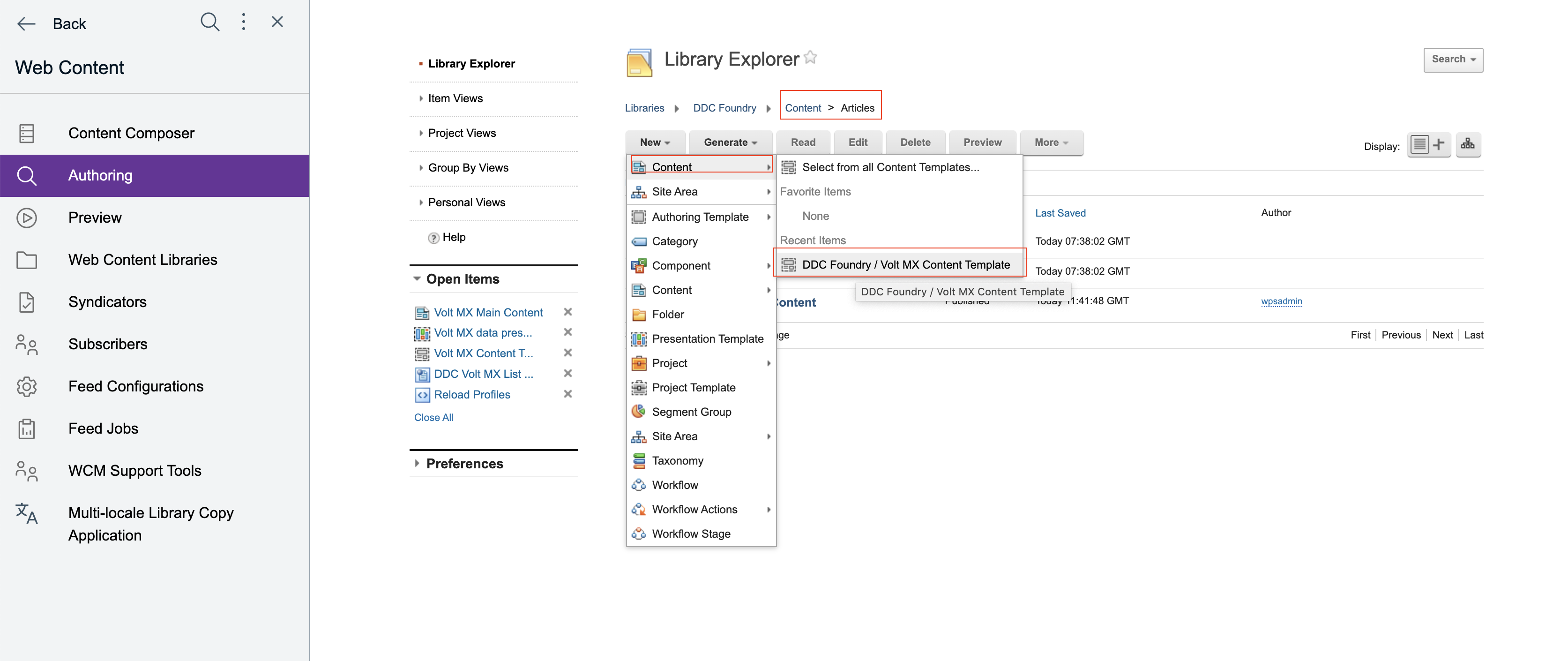

1. Under your libraries, click Content > Articles.

2. Create a new Content item from the Content Template that you created in Creating a Content Template.

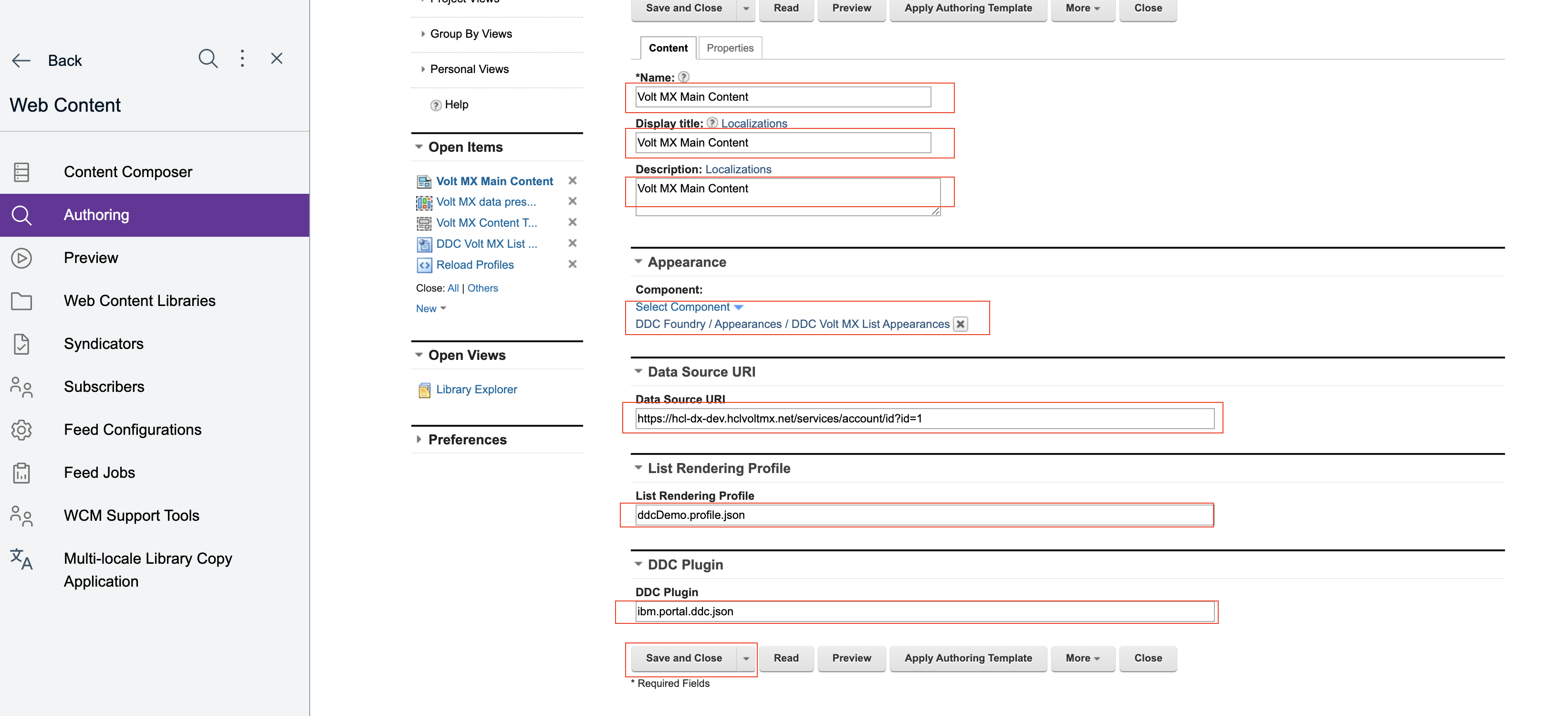

3. Add the Name, Display title, and Description of the Content item. The recommended name is Volt MX Main Content, and in the content fields / elements, provide the following values:

   Content field title	Value
   Appearance	auto filled once you've chosen a component
   Data Source URI	https://hcl-dx-dev.hclvoltmx.net/services/account/id?id=1
   List Rendering Profile	ddcDemo.profile.json
   DDC Plugin	ibm.portal.ddc.json



   Note

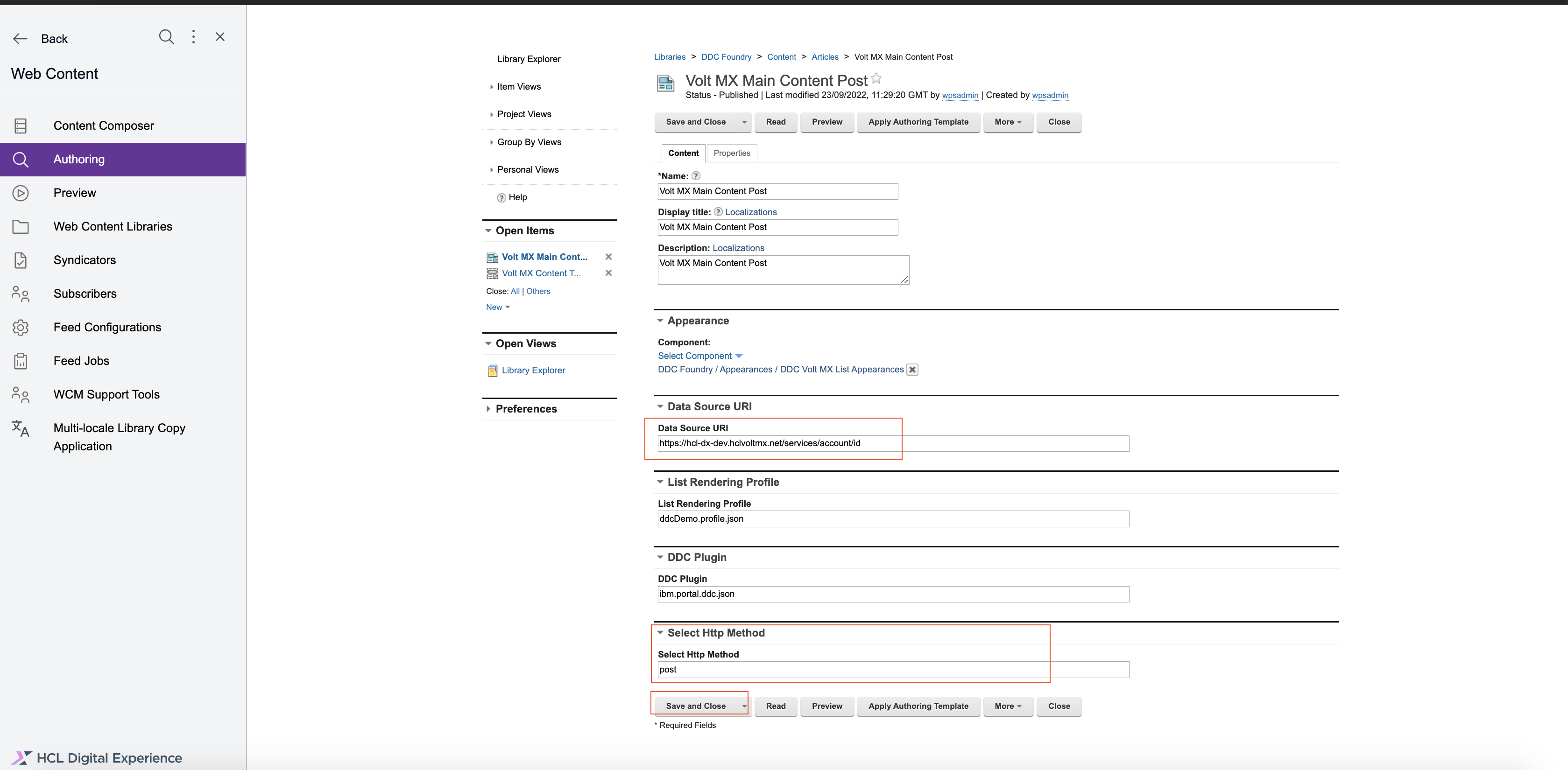

   If you selected any other Resource Method (for example - POST from Advanced > Front End API > Resource Method) while creating a new integration service with Volt MX Foundry then you need to provide value for httpmethod. Also, the value of Data Source URI would be the POST URL endpoint in this case.

   Content field title	Value
   Data Source URI	https://hcl-dx-dev.hclvoltmx.net/services/account/id
   Select Http Method	post



4. Click Save and Close.

Note

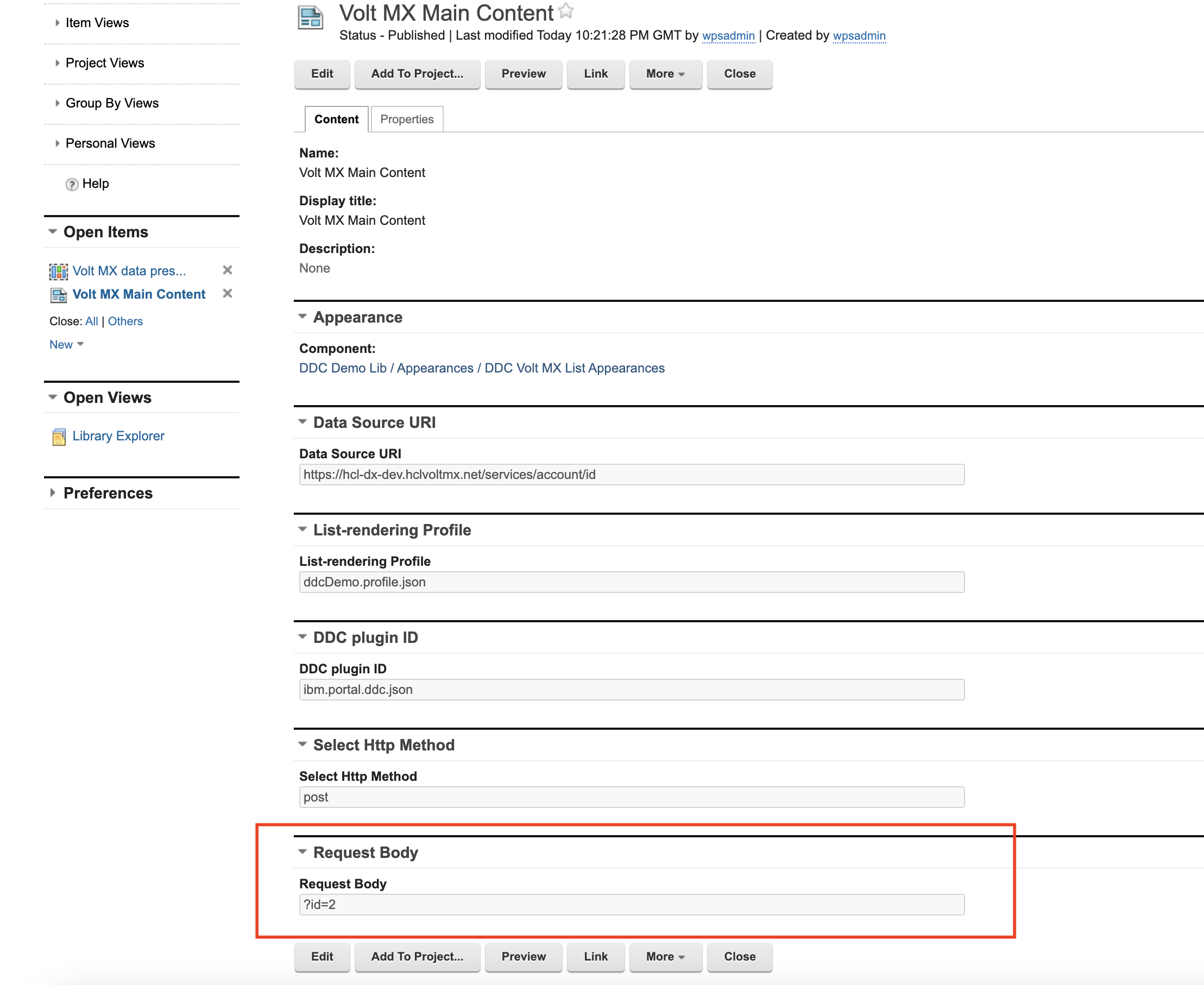

If you selected any other Resource Method (for example, POST from Advanced > Front End API > Resource Method) while creating a new integration service with Volt MX Foundry, you might need the capability to submit data to the API which DDC will try to parse as sourceParams using the Presentation Template you created in a previous section. In that case, you must provide value for params in your Content item. You can pass many key-value pairs of data and it should have the format of a URL query string.

Content field title	Value
Request Body	?id=2

Using WCM artifacts on a DX Compose page

Now you can use all the WCM artifacts that you created on a DX Compose page.

Note

This guide uses an existing page but you can create a completely new Content Root or any child or sibling page on any site. Refer to Creating a page from the site toolbar for creating a page.

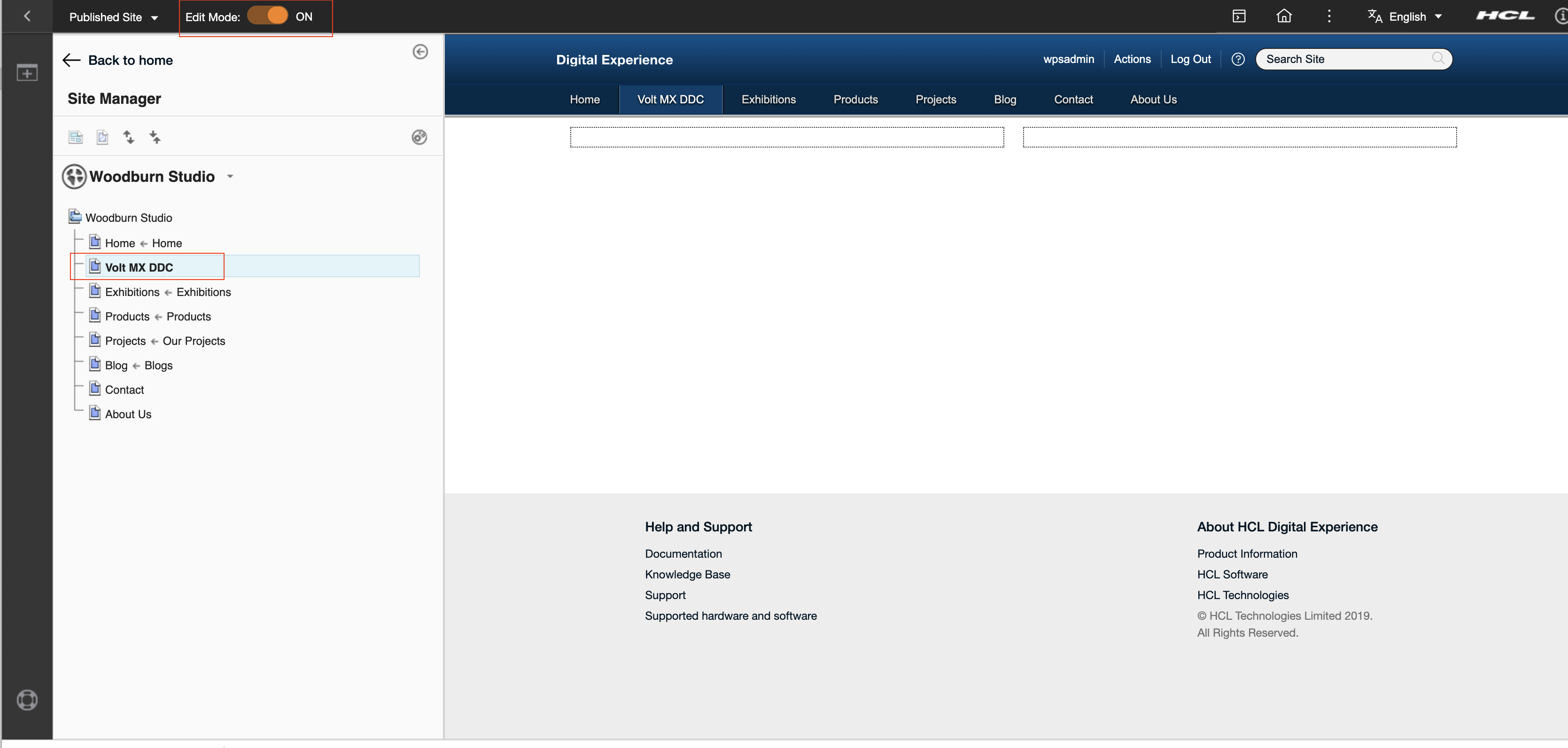

1. Go to any page (for example, Volt MX DDC) and enable Edit Mode.

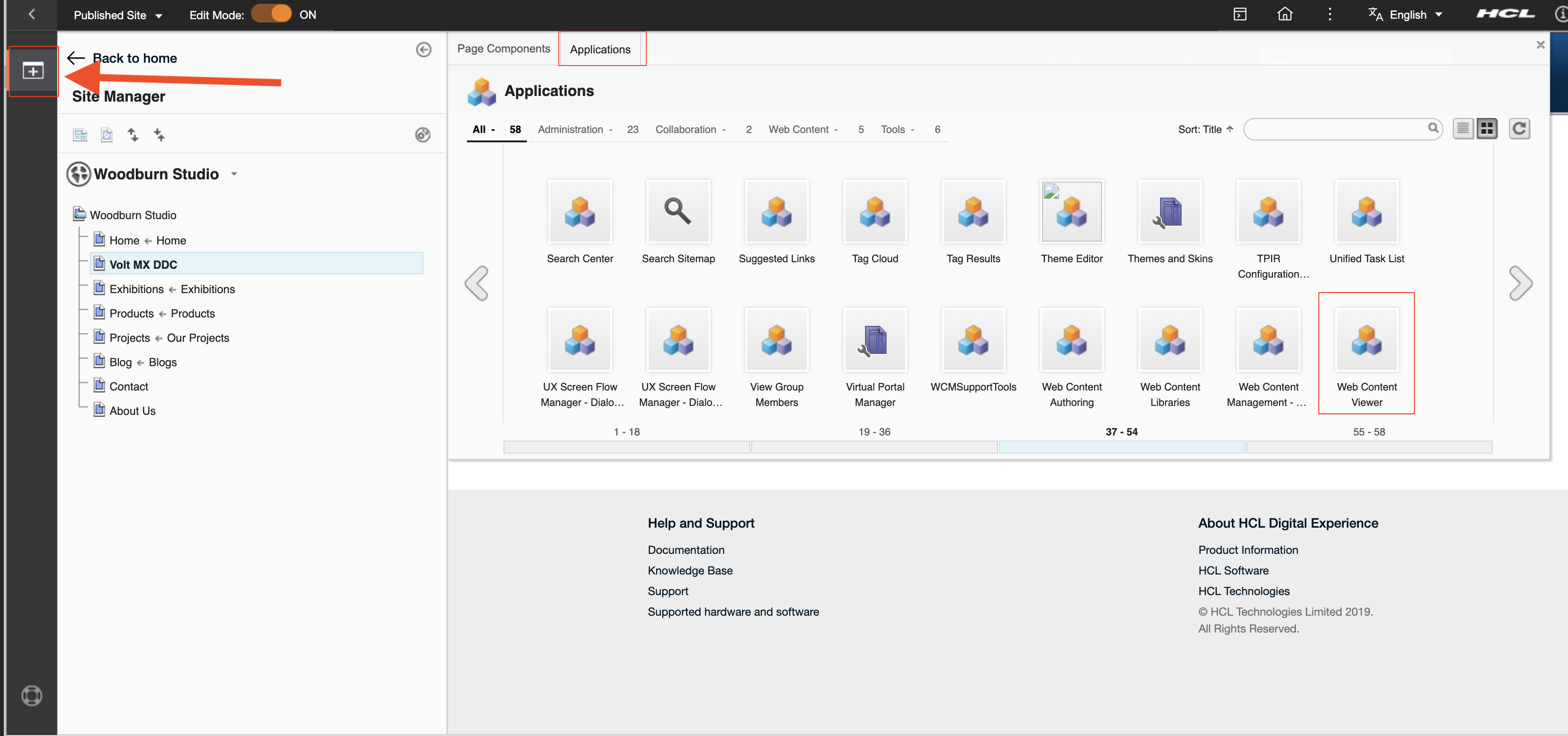

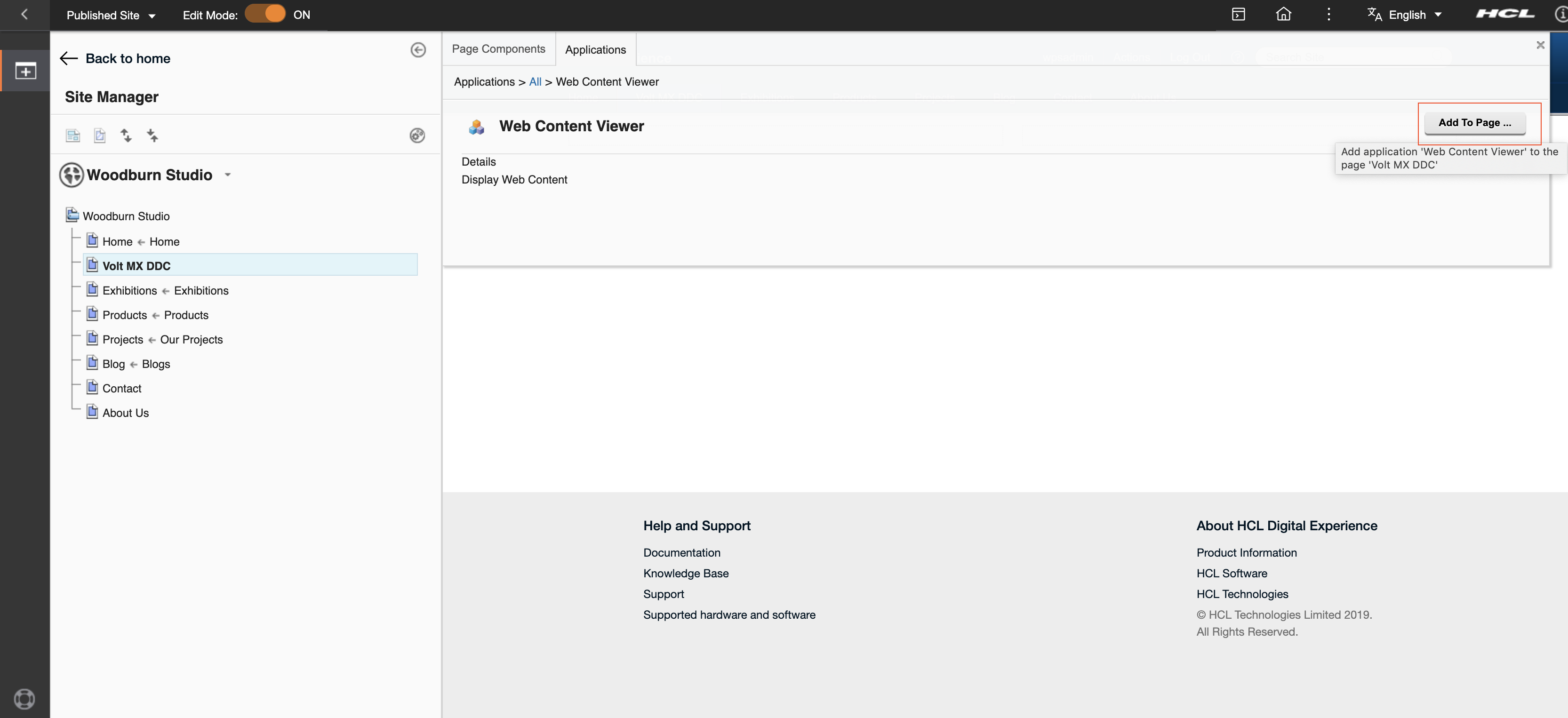

2. In the site toolbar, click the Add page components and applications (plus) icon. Then click Applications and add a Web Content Viewer on the page.



3. Click the Add To Page button.

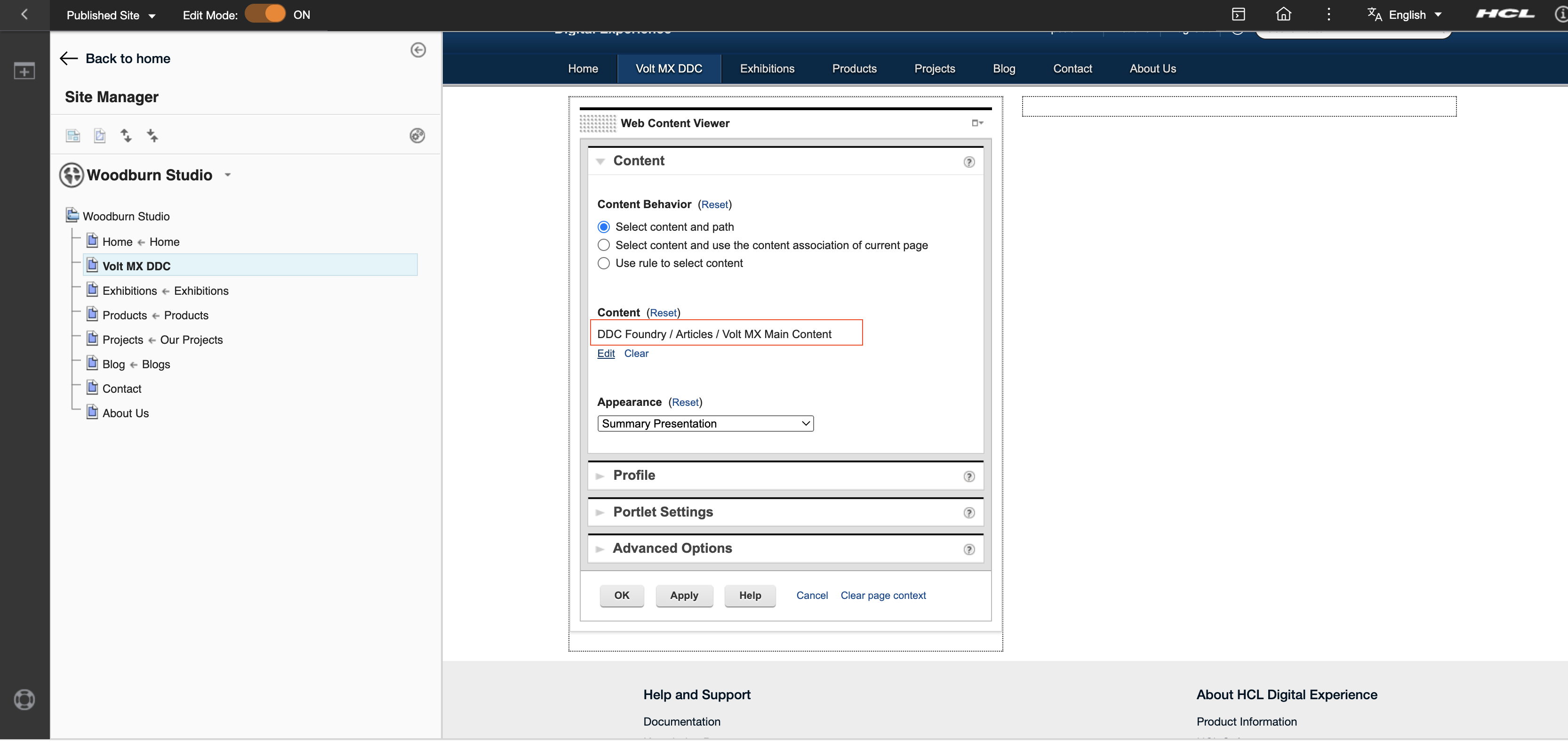

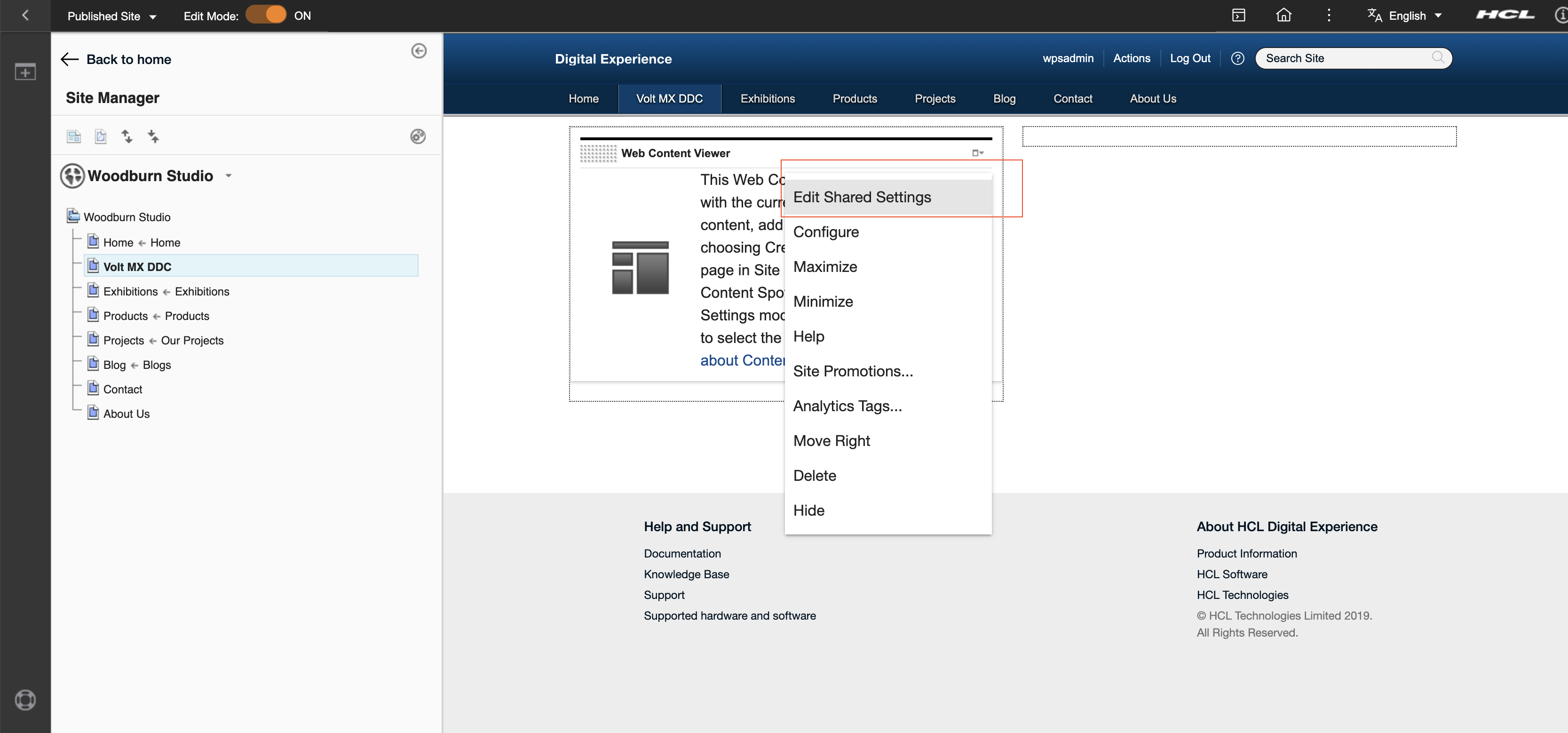

4. Inside the Web Content Viewer, click on the upper right dropdown button and select Edit Shared Settings.



5. Under Content, change the mapped content to the Content item you created in Creating a Content item.



6. Click OK.

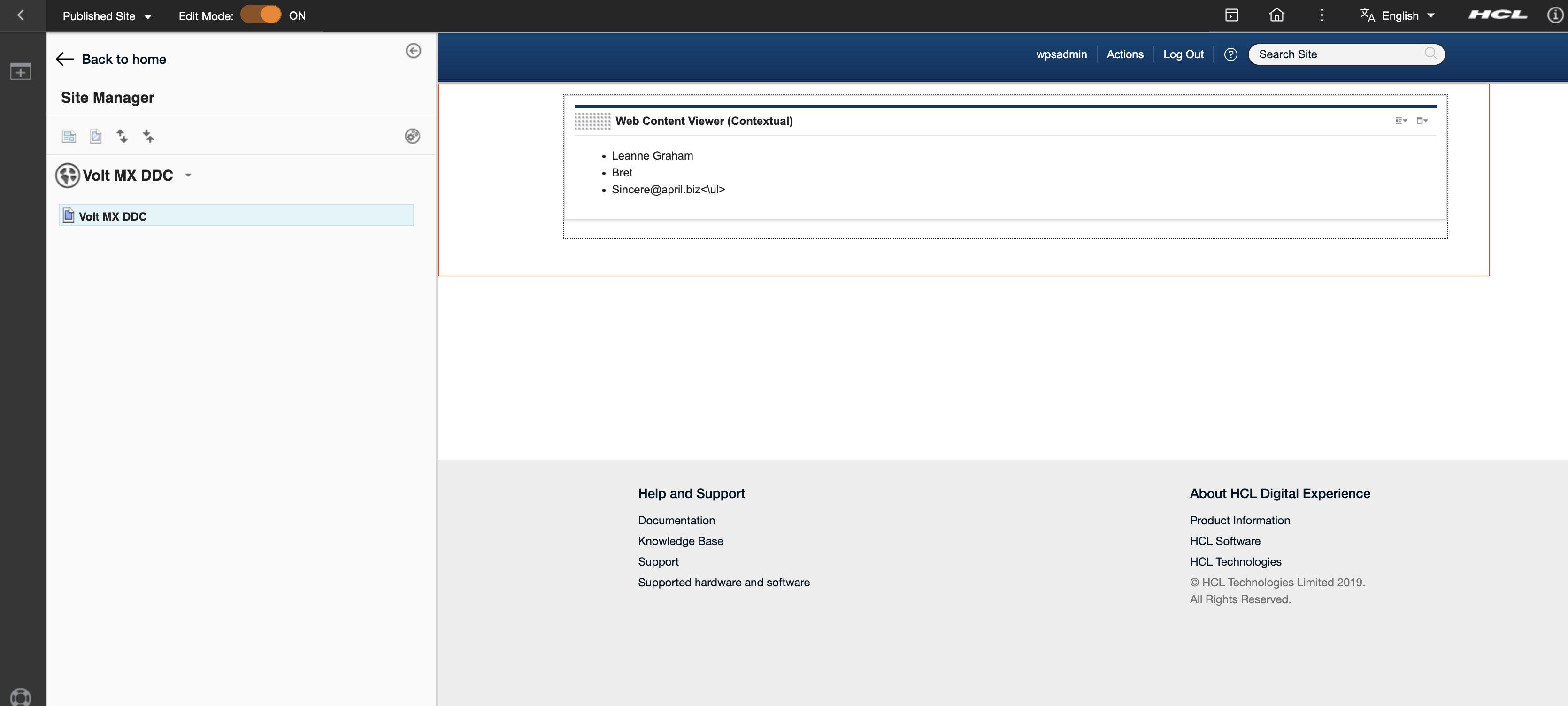

   The following output page is displayed.
